- Outlander MAX 400 STD 4 X 4, 2007
09- Body And Accessories 1, STD

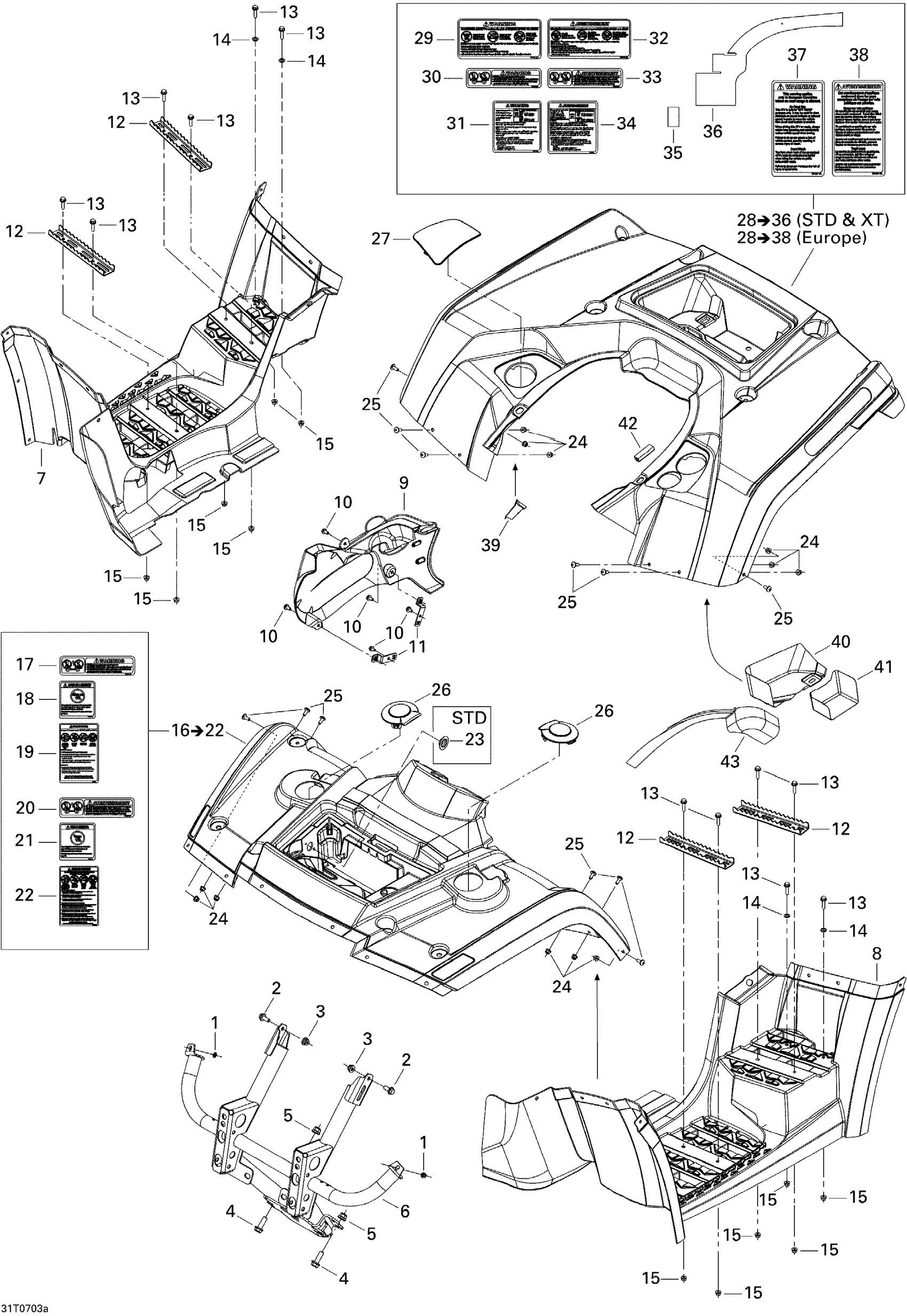

Can-Am Outlander MAX 400 STD 4 X 4, 2007 09- Body And Accessories 1, STD Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
Front Bumper
705003196
Unavailable
7
RH Footboard
705002487
Unavailable
8
LH Footboard
705003633
Unavailable
9
Engine Cover
705003837
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Engine Cover Support
705003646
Unavailable
12
Footrest
705003648
Unavailable
13
Hex. Flange Screw M6 X 25
207662554
Unavailable
14
Lock Washer M6, Black
234161471
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Red Front Fender Kit | Includes 16 to 22, Viper Red
715002329
Unavailable
16
FRONT FENDER KIT, GREEN - Call your local BRP dealership | Includes 16 to 22, Laurentian Green
715001037
Unavailable
16
Yellow Front Fender Kit | Includes 16 to 22, Yellow
715002330
Unavailable
17
Warning Decal, Load | English Version
704901089
Unavailable
17
Warning Decal, Front Load | English Version
704900453
Unavailable
18
Warning Decal, Under 16 Years Old | English Version
704901753
Unavailable
19
Warning Decal, Death And Injuries | English Version
704901749
Unavailable
20
Warning Decal, Load | French Version
704901090
Unavailable
21
WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version
704900436
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
PLASTIC CAP - Call your local BRP dealership | STD
293000103
Unavailable
24
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
25
Torx Screw M6 X 16
250000755
Unavailable
26
FRONT CAP - Call your local BRP dealership
705001999
Unavailable
27
RH CAP - Call your local BRP dealership
705001900
Unavailable
28
REAR FENDER KIT, RED - Call your local BRP dealership | Includes 31 to 39, Viper Red
715000798
Unavailable
28
REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 31 to 39, Yellow
703500560
Unavailable
28
REAR FENDER KIT, GREEN - Call your local BRP dealership | Includes 31 to 39, Laurentian Green
703500561
Unavailable
28
REAR FENDER KIT, RED - Call your local BRP dealership | Includes 28 to 38, Viper Red, Europe
715000800
Unavailable
28
REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 28 to 38, Yellow, Europe
715000795
Unavailable
28
Rear Fender, Green | Includes 28 to 38, Laurentian Green, Europe
703500567
Unavailable
29
WARNING DECAL, PASSENGER - Call your local BRP dealership
704901762
Unavailable
30
Warning Decal, Load | English Version
704901089
Unavailable
31
WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership
704902402
Unavailable
32
Warning Decal, Load | French Version
704901090
Unavailable
33
WARNING DECAL, UNDER 12 YEARS OLD - Call your local BRP dealership | French Version
704901122
Unavailable
34
Warning Decal, Tire Pressure | French Version
704902403
Unavailable
35
Heat Shield | Europe
517305451
Unavailable
36
REFLECTIVE SHEET - Call your local BRP dealership
705002043
Unavailable
37
WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version
704901444
Unavailable
38
Warning Decal, Public Roads Use | French Version
704901158
Unavailable
39
Heat Shield | Europe
517305451
Unavailable
40
Reflective Sheet
705002190
Unavailable
41
Reflective Sheet
705002188
Unavailable
42
Was 293200017 Neoprene Seal
219704365
Unavailable
43
REFLECTIVE SHEET - Call your local BRP dealership
705002043
Unavailable
