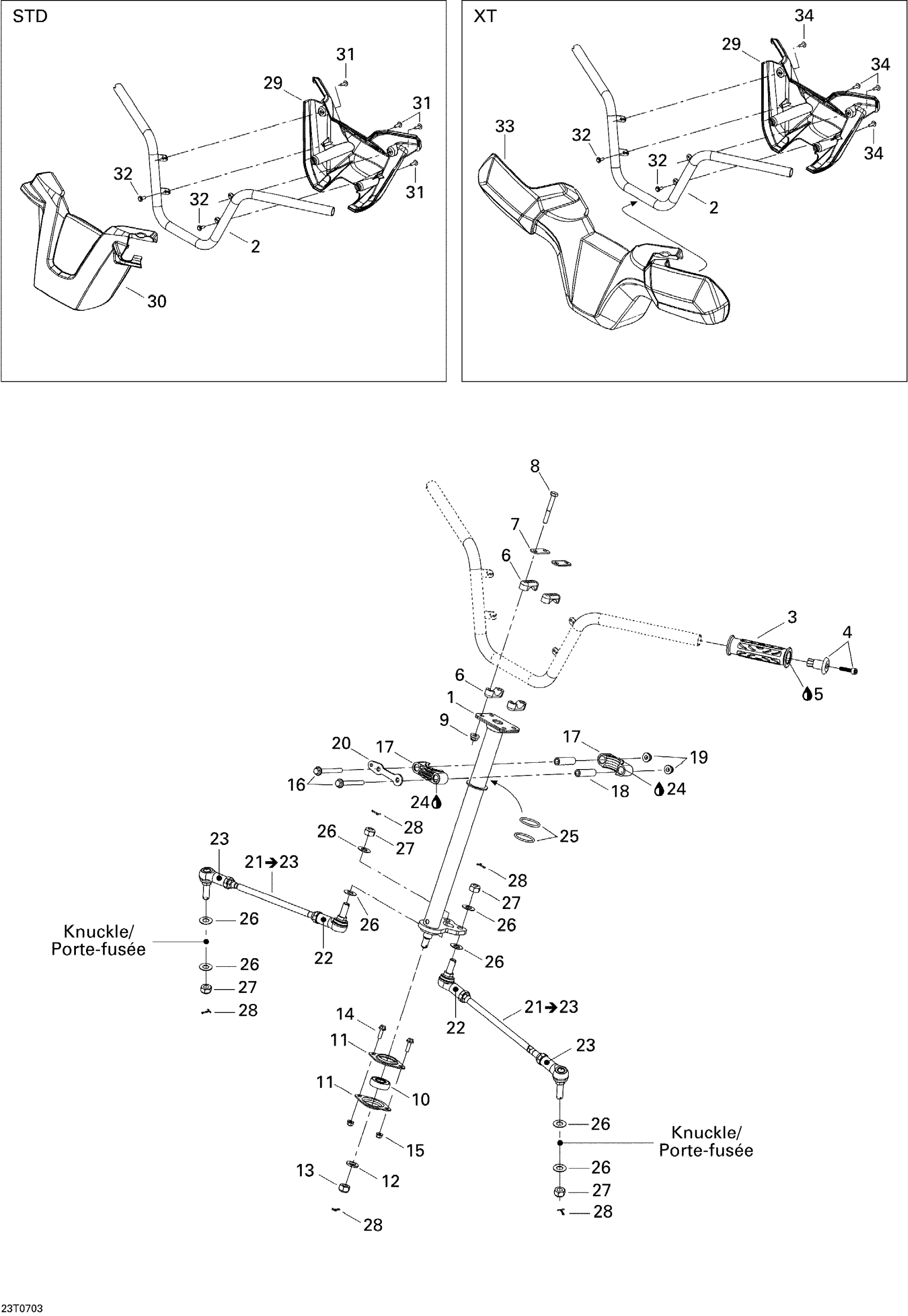

Can-Am Outlander MAX 400 STD 4 X 4, 2007 Steering System STD Diagram

#

Description
Price

1

Main Tube

709401056

$129.99

2

Steering | STD

709401237

$63.49

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.69

8

Hex. Screw M8 X 60

207086046

$2.85

9

Hex. Elastic Flange Nut M8

233281416

$1.48

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Flange Elastic Nut M12

250000047

$1.90

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Screw M8 X 70

207687044

$7.41

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$52.99

23

LH Ball Joint

709402303

$36.99

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$24.49

30

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

31

Torx Screw K50 X 16

250000720

$1.69

32

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable
