10- Electrical System XT

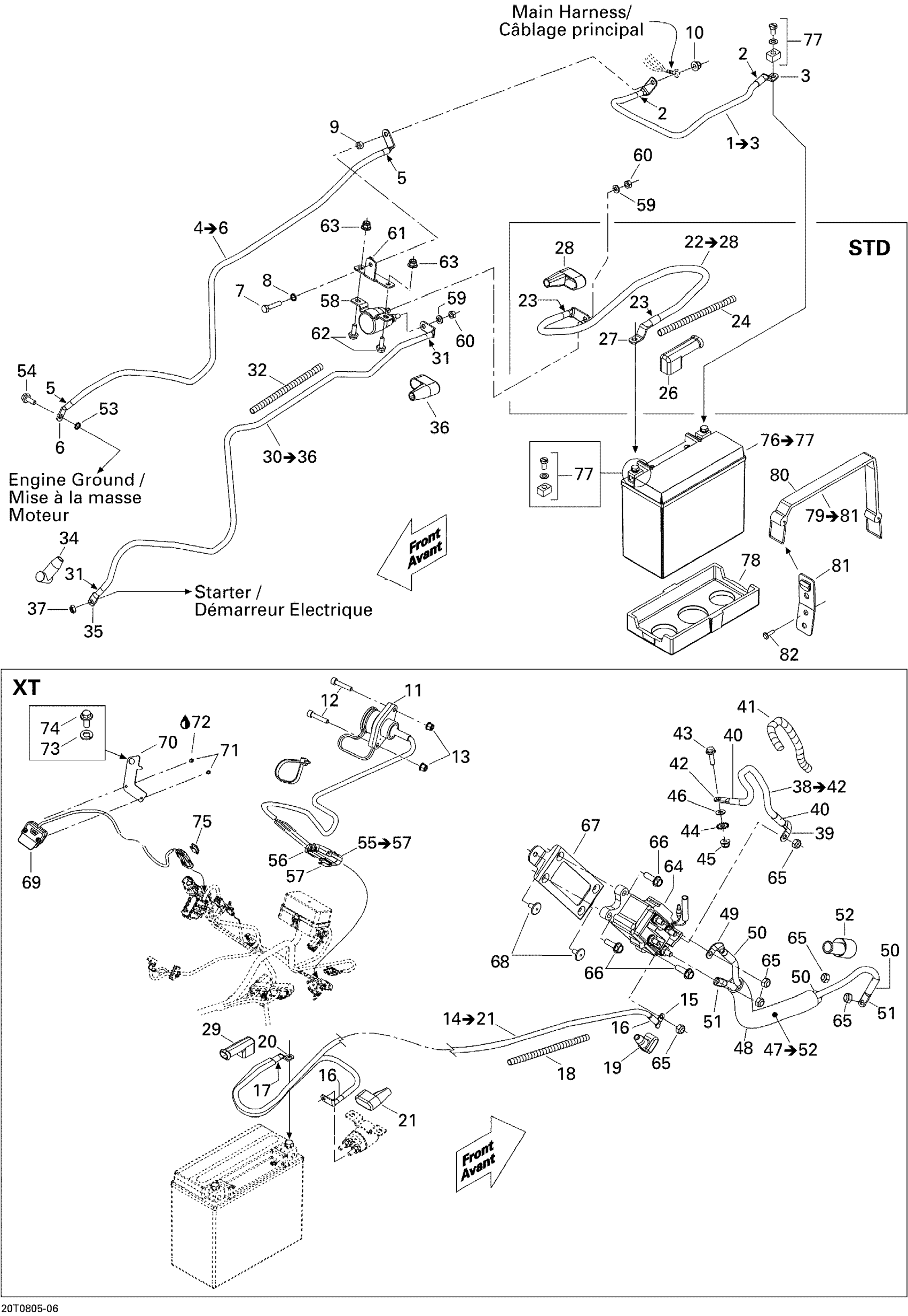

Can-Am Outlander MAX 400 EFI XT, 2008 10- Electrical System XT Diagram
#
1
Ground Cable Ass'y, Battery/Frame | Includes 1 to 4
710000830
Unavailable
2
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
3
Open Barrel | STD Models
710000518
Unavailable
4
Ground Cable | Includes 4 to 6
710001444
Unavailable
5
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
6
Open Barrel
710000540
Unavailable
7
Hex. Screw M6 X 25
207162544
Unavailable
8
External Serrated Lock Washer 6 mm
234461608
Unavailable
9
Hex. Nut M6
232061414
Unavailable
10
Hex. Flange Nut M6
233061414
Unavailable
11
Winch Connector
710001023
Unavailable
12
Socket Head Screw M5 X 25
205052588
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
14
Positive Cable Ass'y | XT, Includes 20 to 28
710001824
Unavailable
15
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
16
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
17
Shrink Tubing | XT Models
275500578
Unavailable
18
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
19
Protector Cap | XT Models
710001828
Unavailable
20
Open Barrel | XT Models
710000519
Unavailable
21
Protector Cap | STD
710001817
Unavailable
22
Not Available As Spare Parts
XXX
Unavailable
23
Not Available As Spare Parts
XXX
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
26
Not Available As Spare Parts
XXX
Unavailable
27
Not Available As Spare Parts
XXX
Unavailable
28
Not Available As Spare Parts
XXX
Unavailable
29
Protector Cap | STD Models
710001829
Unavailable
30
POSITIVE CABLE, STARTER RELAY/STARTER - Call your local BRP dealership | Includes 30 to 36
710000381
Unavailable
31
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
32
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
34
Protector Cap
710000526
Unavailable
35
Open Barrel
710000530
Unavailable
36
Protector Cap | STD
710001817
Unavailable
37
Elastic Stop Nut M6
232561414
Unavailable
38
NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41
710000455
Unavailable
39
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
40
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
41
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
42
Open Barrel
710000530
Unavailable
43
Hex. Flange Screw M6 X 20
207662044
Unavailable
44
Lock Washer Serrated M6
250200041
Unavailable
45
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
46
Flat Washer
224061121
Unavailable
47
WINCH CABLE ASS'Y - Call your local BRP dealership | XT, Includes 47 to 52
710001251
Unavailable
48
Was 409901600 Tubing 19mm
219704398
Unavailable
49
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
50
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
51
Open Barrel
710000530
Unavailable
52
Protector Cap | XT
515175919
Unavailable
53
External Serrated Lock Washer 6 mm
234461608
Unavailable
54
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
55
Connector Ass'y | XT, Includes 55 to 57
710001059
Unavailable
56
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
57
Clip
710000992
Unavailable
58
Starter Relay
710007777
Unavailable
59
Lock Washer Helical M6
234161601
Unavailable
60
Hex. Nut M6
232061600
Unavailable
61
SOLENOID SUPPORT - Call your local BRP dealership
710001260
Unavailable
62
Hex. Flange Screw M6 X 12
207661244
Unavailable
63
Hex. Flange Nut M6
233061414
Unavailable
64
Winch Solenoid | XT Models
710001000
Unavailable
65
Elastic Stop Nut M6
232561414
Unavailable
66
Hexagonal Head Screw
210262050
Unavailable
67
WINCH RELAY SUPPORT - Call your local BRP dealership | XT
710001813
Unavailable
68
Pop Rivet 3/16"
390406500
Unavailable
69
WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16
710001001
Unavailable
70
WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models
710000755
Unavailable
71
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
72
Loctite 243, 10 ml
293800060
Unavailable
73
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
74
HEX. SCREW M10 X 16 - Call your local BRP dealership
250000029
Unavailable
75
CLIP - Call your local BRP dealership
409014200
Unavailable
76
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
77
Battery Bolt Kit
250000282
Unavailable
78
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
79
Strap Ass'y | Includes 79 to 81
710001033
Unavailable
80
Retainer Strap
293850097
Unavailable
81
Strap Clip
293850030
Unavailable
82
Pop Rivet 3/16"
390402400
Unavailable
