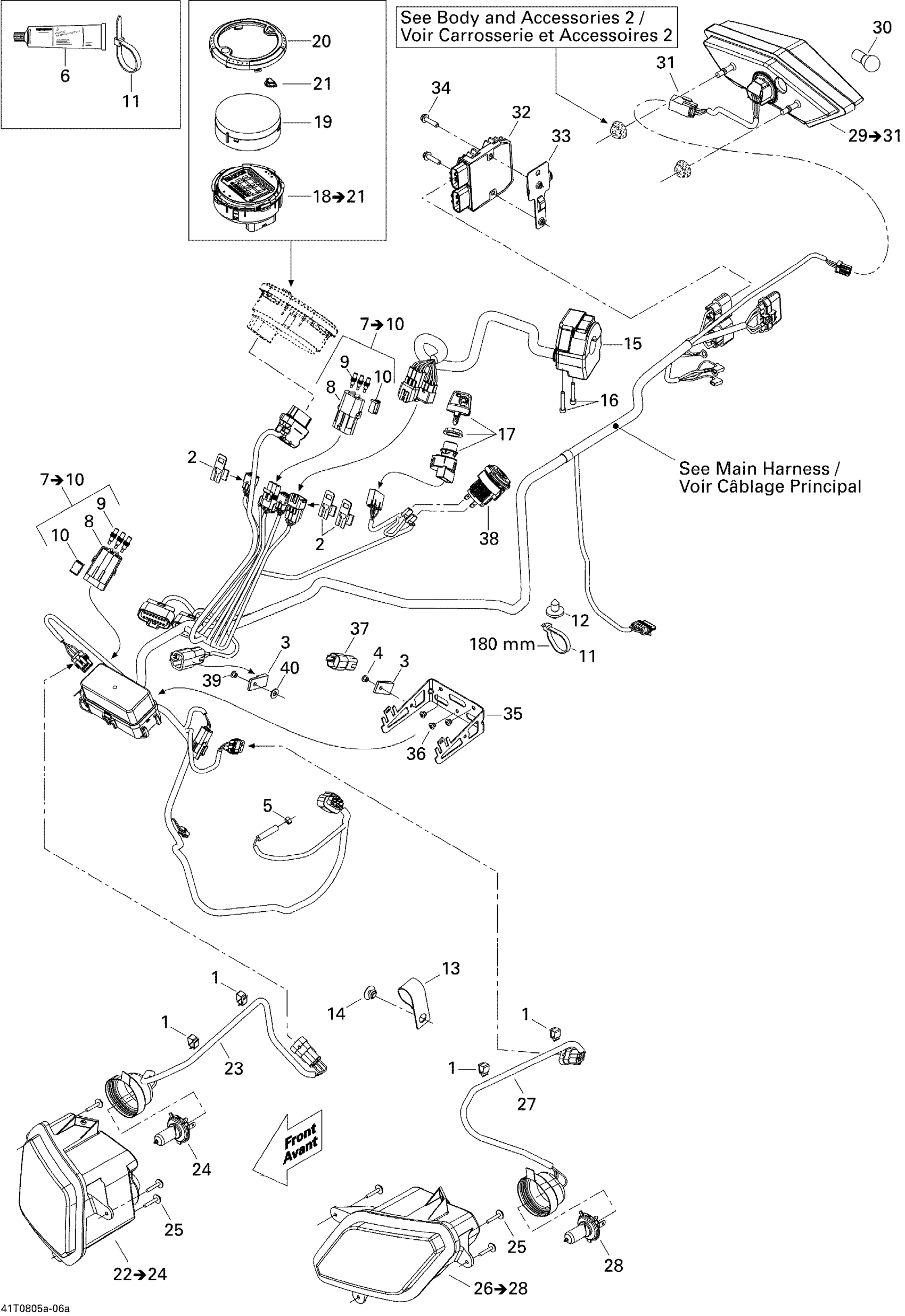

Can-Am Outlander MAX 400 EFI XT, 2008 Electrical Accessories XT Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

5

Oetiker Clamp

293650100

$3.38

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Not Available As Spare Parts

XXX

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

Tie-Rap 173 mm

293750009

$1.04

11

Tie-Rap 180 mm

414115200

$0.11

11

Tie Wrap 368 mm

293750008

$1.04

11

Tie-rap 627 mm

293750041

$0.93

12

Mount Dart

293730040

$1.04

13

CLAMP - Call your local BRP dealership

705600311

Unavailable

14

Pop Rivet 3/16"

390406500

$0.88

15

Multi-Fonction Handle

710000791

$116.49

16

Socket Head Screw M5 X 35

205053588

$1.90

17

Ignition Switch With Key

710002323

$86.99

18

Speedometer Ass'y | Includes 18 to 21

710003100

$539.99

19

Lens

415129320

$24.49

20

Trim Ring

710001416

$23.99

21

Button

710001473

$13.71

22

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

23

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

24

Bulb, 12V 35/35W

710000871

$34.99

25

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

26

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

27

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

28

Bulb, 12V 35/35W

710000871

$34.99

29

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

30

Bulb

520000758

$9.10

31

Male Housing, 3 Circuits

515175494

$16.18

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

34

Hexagonal Head Screw

210262050

$2.11

35

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

36

Pop Rivet 3/16"

390402400

$0.35

37

Diagnostic Connector

278002704

$19.49

38

DC Outlet

710001248

$37.99

39

Pop Rivet 3/16"

390402300

$0.75

40

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable
