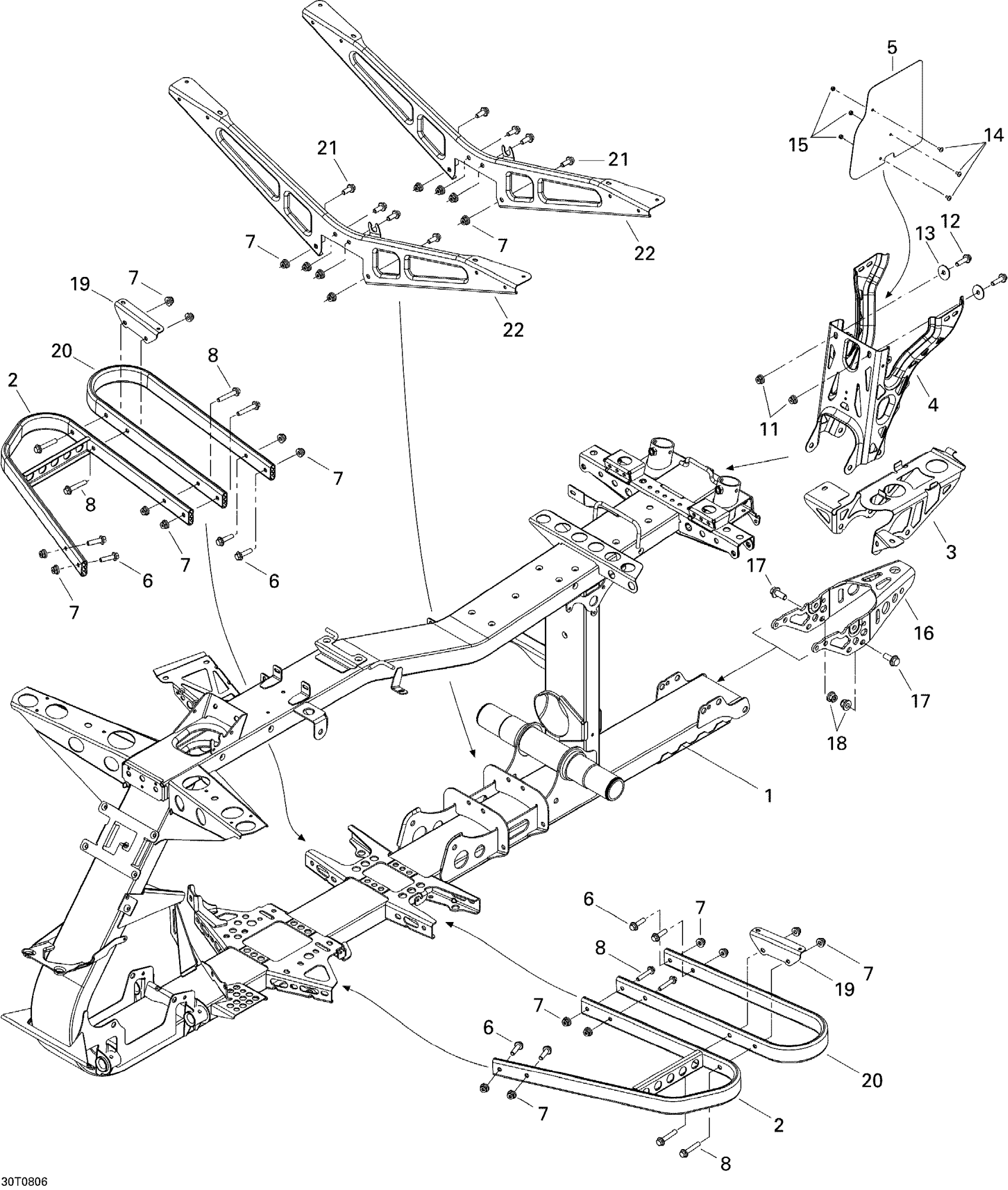

Can-Am Outlander MAX 400 EFI XT, 2008 Frame, System Diagram

#

Description
Price

1

FRAME, BLACK - Call your local BRP dealership

705202420

Unavailable

2

OOTBOARD ASS'Y - Call your local BRP dealership

705202081

Unavailable

3

Battery Support Base

705201942

$32.99

4

Rear Support, Black

705203842

$42.99

5

Heat Shield

705202394

$17.49

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Screw M8 X 45

207684544

$3.80

11

Hex. Elastic Flange Nut M8

233281416

$1.48

12

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

13

Flat Washer

224081301

$0.88

14

Torx Screw M4 X 8

250000127

$1.15

15

Elastic Stop Nut M4

232541484

$0.74

16

TRAILER HOOK, BLACK - Call your local BRP dealership

705201112

Unavailable

17

Hex. Flange Screw M10 X 25

207602544

$1.69

18

Hex. Flange Elastic Nut M10

233201436

$2.11

19

SUPPORT PLATE, BLACK - Call your local BRP dealership

705202402

Unavailable

20

REAR FOOTREST - Call your local BRP dealership

705201993

Unavailable

21

Hex. Flange Screw M8 X 20

207682044

$1.15

22

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable
