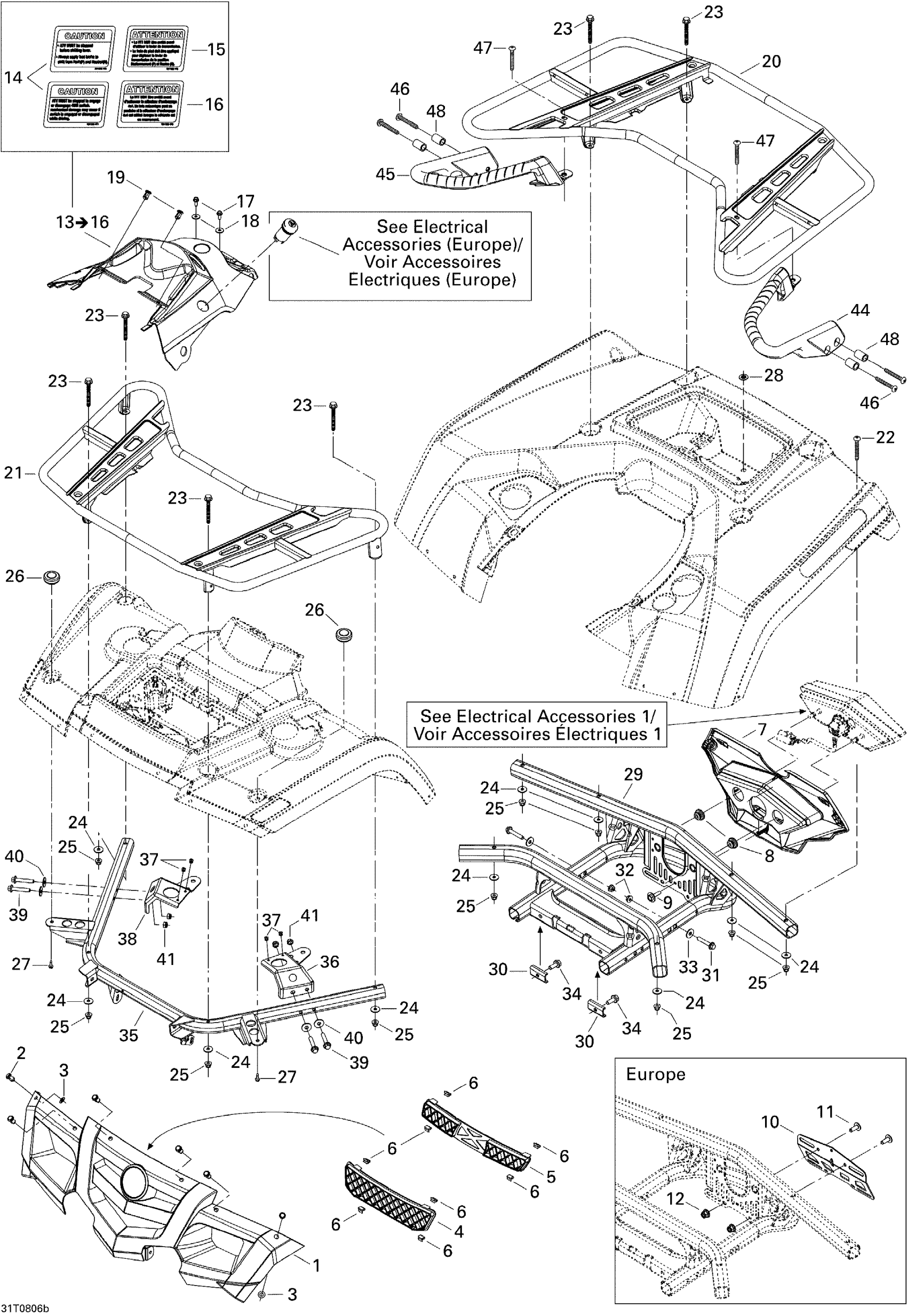

Can-Am Outlander MAX 400 EFI XT, 2008 09- Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

2

Tuflok Plastic Rivet

293150230

Unavailable

3

Washer

506151252

Unavailable

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

Unavailable

7

Rear Facia

705003840

Unavailable

8

Stopper Rubber

705014429

Unavailable

9

Screw M4 X 16

250000725

Unavailable

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

13

DASH-BOARD, RED - Call your local BRP dealership | Includes 7 to 10, Viper Red

703500668

Unavailable

13

Dash-board, Green | Includes 7 to 10, Laurentian Green

703500674

Unavailable

13

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow

703500670

Unavailable

13

Dash-board, Red | Includes 7 to 10, Viper Red (Europe)

703500671

Unavailable

13

DASH-BOARD, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green (Europe)

703500672

Unavailable

13

DASH-BOARD, YELLOW - Call your local BRP dealership | Includes 7 to 10, Yellow (Europe)

703500673

Unavailable

14

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

15

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

16

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

17

Hex. Flange Screw M6 X 16

210261650

Unavailable

18

Flat Washer

250200082

Unavailable

19

Tuflok Plastic Rivet

293150230

Unavailable

20

Rear Luggage Rack

705002617

Unavailable

21

Front Luggage Rack

705002616

Unavailable

22

Torx Truss Screw M6 X 50

250000749

Unavailable

23

Hex. Flange Screw M6 X 50

207665044

Unavailable

24

Flat Washer

224061201

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

26

RUBBER CAP - Call your local BRP dealership

705002042

Unavailable

27

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

28

CAP - Call your local BRP dealership

414859400

Unavailable

29

Rear Support

705003656

Unavailable

30

U Reinforcement

705003647

Unavailable

31

Hex. Flange Screw M8 X 50

207685044

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

Unavailable

33

Flat Washer 8 mm

234082410

Unavailable

34

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

35

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

36

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

37

Pop Rivet 3/16"

390402300

Unavailable

38

RH Anchor Plate

705002997

Unavailable

39

Hex. Flange Screw M8 X 45

207684544

Unavailable

40

Flat Washer 8 mm

234082410

Unavailable

41

Hex. Elastic Stop Nut M8

232581414

Unavailable

44

LH Handle

705001944

Unavailable

45

RH Handle

705001945

Unavailable

46

Hex Torx Truss M8 X30

250000745

Unavailable

47

Torx Truss Screw M8 X 16

250000746

Unavailable

48

Bushing

705002153

Unavailable
