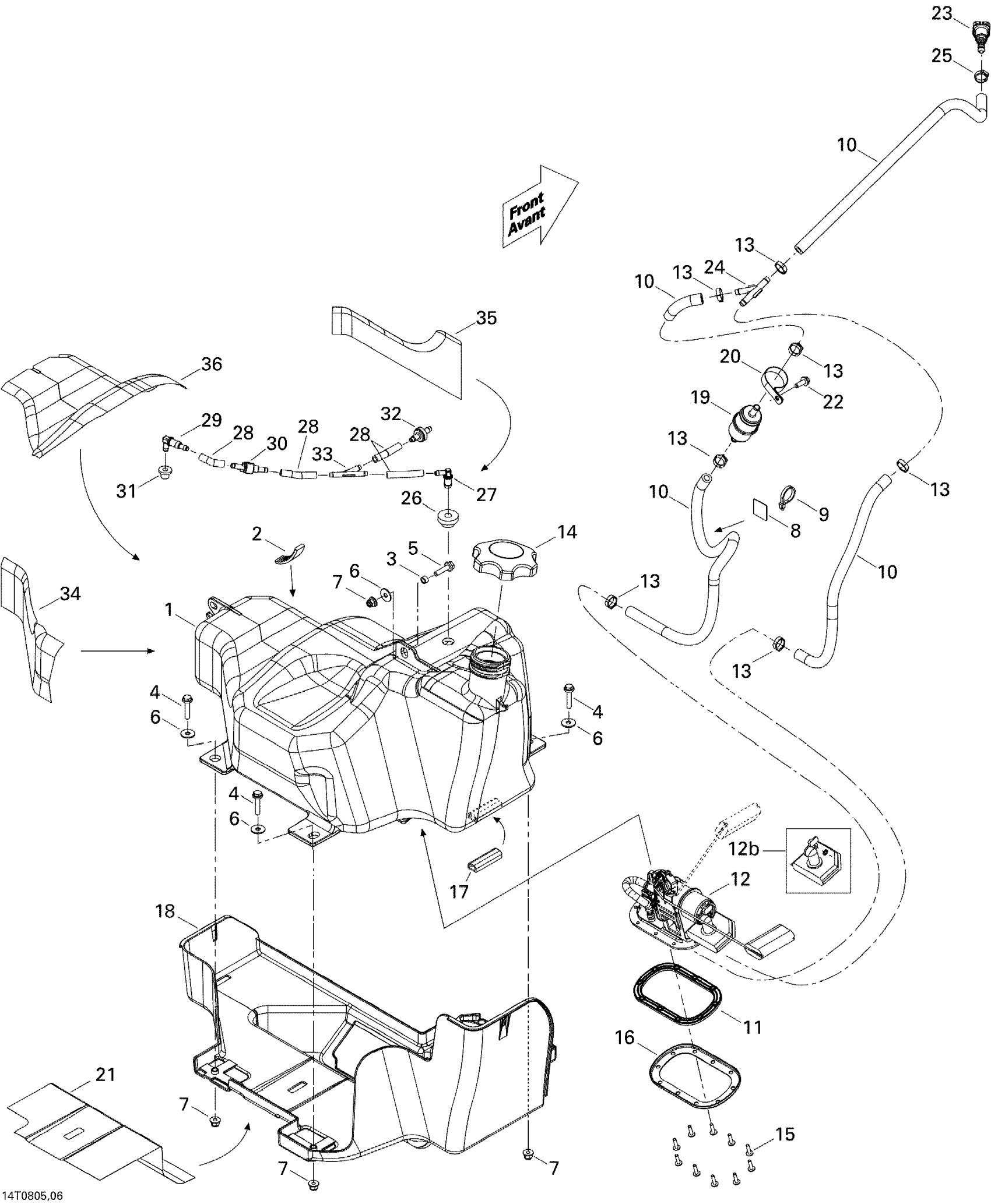

Can-Am Outlander MAX 400 EFI XT, 2008 Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000176

Unavailable

2

Vinyl Strip

709000153

Unavailable

3

Bushing | DS 650 X

293900104

$5.26

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 25

207662544

$0.53

6

Flat Washer

250200082

$0.35

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Tie-rap Mount (square - self-adhsive)

293750040

$3.09

9

Tie-Rap 180 mm

414115200

$0.09

10

Was 709000163 Fuel Line

219704440

$27.66

11

Joint Etanche *Gasket

709000540

$36.89

12

Fuel Pump

703500771

Unavailable

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Oetiker Clamp

293650046

$2.33

14

Fuel Tank Cap

513033025

$19.47

15

Torx Screw M4 X 16

250000750

$1.37

16

Pump Ring

709000170

$15.35

17

Was 293200017 Neoprene Seal

219704365

$118.27

18

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

19

Fuel Filter

513034047

$23.05

20

Open Clamp

513033047

$4.88

21

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

22

Hex. Flange Screw M6 X 16

210261650

$1.22

23

Female Quick Fitting Ass'y

709000125

$11.12

24

Y-Fitting, 5/16''

293710136

$6.45

25

Oetiker Clamp

293650046

$2.33

26

Grommet

293830136

$8.29

27

Male Connector

414580700

$3.38

28

Polyurethane Hose 10000Mm Long

219704410

$46.12

29

Elbow Male Connector

414580600

$3.50

30

Check Valve

513033469

$25.32

31

Grommet

293720029

$1.13

32

Check Valve

275500398

$8.57

33

Y-Fitting

293710059

$8.19

34

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

35

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

36

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable
