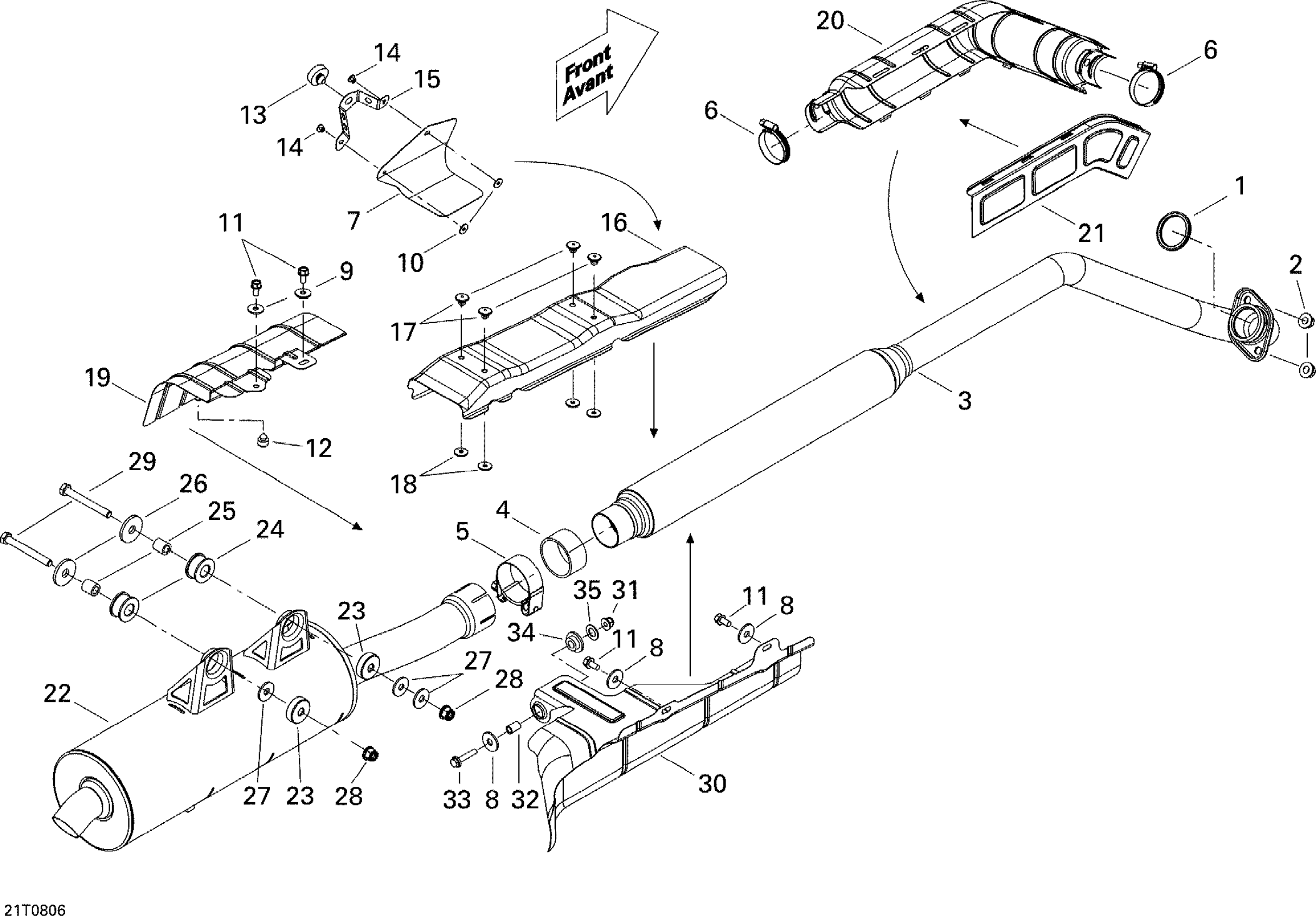

Can-Am Outlander MAX 400 EFI XT, 2008 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$10.21

2

Hex. Flange Nut M8

233081416

$1.87

3

PIPE_EXHAUST WELD - Call your local BRP dealership

707600599

Unavailable

4

Pipe Gasket

707600430

$17.88

5

Norma Gear Clamp

293650177

$8.67

6

Norma Gear Clamp

293650098

$4.15

7

HEAT SHIELD - Call your local BRP dealership

707600618

Unavailable

8

Flat Washer 8 mm

234082410

$1.27

9

Flat Washer

250200082

$0.40

10

WASHER - Call your local BRP dealership

391301000

$0.63

11

Hex. Flange Screw M6 X 12

210261250

$1.79

12

Rubber Bumper

293830005

$6.12

13

Rubber Stopper

708000506

$5.90

14

RIVET_POP 1/8 X ,375 - Call your local BRP dealership

293150122

Unavailable

15

Panel Support

707600581

Unavailable

16

HEAT SHIELD - Call your local BRP dealership

707600700

Unavailable

17

Pop Rivet 3/16"

390406500

$0.81

18

Washer

517124300

$0.18

19

HEAT SHIELD - Call your local BRP dealership

707600459

Unavailable

20

Heat Base Shield

707600462

$20.12

21

HEAT SHIELD COVER - Call your local BRP dealership

707600457

Unavailable

22

Muffler

707600574

$479.82

22

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600597

Unavailable

23

SPACER - Call your local BRP dealership

707600603

Unavailable

24

Vibration Damper

707603323

$10.88

25

Bushing

293900106

$4.28

26

Washer

503032900

$3.10

27

Flat Washer 8 mm

234082410

$1.27

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

Hex. Screw M8 X 80

207088044

$1.54

30

Protector

707600621

$55.94

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

32

Sleeve

293900078

$11.81

33

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

34

Grommet

705003932

$2.89

35

Washer

503175800

$3.16
