Description

Price

1

Inter.Press.Hui*Switch-Oil Pressure

420856539

$43.99

2

Crush Washer

420552280

$3.70

3

Drain Plug M18 X 1.5

420840278

$23.99

4

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

5

Rubber Ring

420650560

$16.86

6

Oil Collector

420256650

$50.99

7

O-Ring

420650697

$11.05

8

Oil Sieve

420256576

$19.49

9

Torx Flange Screw M6 X 20

420440207

$3.06

10

Oil Dipstick

420256800

$17.05

11

O-Ring

420631640

$2.11

12

Needle Pin

420232431

$4.39

13

Idle Gear, 25 Teeth

420635191

$17.05

14

Snap Ring

420245330

$1.79

15

Location Pin 10 M6x50

420229302

$3.17

16

Idle Gear, 42 Teeth

420635660

$20.49

17a

Oil Pump Ass’y | Includes 17 to 24

420296507

$284.99

17b

Oil Pump Housing

420610221

$96.49

18

Piston Valve

420256922

$12.70

19

Compression Spring

420238220

$8.09

20

Plug Screw M16

420641167

$19.49

21

Oil Pump Shaft

420220814

$132.49

22

Oil Pump Outer Rotor

420256935

$69.99

23

Needle Pin

420232431

$4.39

24

Oil Pump Cover

420610570

$71.99

25

Needle Pin

420232431

$4.39

26

Oil Pump Gear, 32 Teeth

420635220

$20.99

27

O-ring

420250290

$8.85

28

Torx Flange Screw M6 X 45

420440324

$0.98

29

Oil Filter

420256188

$13.77

30

O-Ring

420230923

$3.17

31

Oil Filter cover

420612135

$11.63

32

Torx Flange Screw M6 X 25

420440234

$3.06

33

Torx Flange Screw M6 X 25

420440234

$3.06

34

Seal Washer

420230415

$1.79

35

Water Pump Housing

420222680

$62.49

36

Gasket

420630270

$11.05

37

Water Impeller

420222505

$19.99

38

Waterpump Shaft Ass'y

420620171

$73.99

39

Oil Seal

420650315

$11.65

40

Thrust Washer

420827590

$4.01

41

Needle Pin

420232431

$4.39

42

Idle Gear, 34 Teeth

420635620

$17.05

43

Snap Ring

420245330

$1.79

B

Loctite 243, 10 ml

293800060

$21.49

N

Grease, Super Lube

293550030

$28.99

O

Not Available As Spare Part - Friction Washer

Unavailable

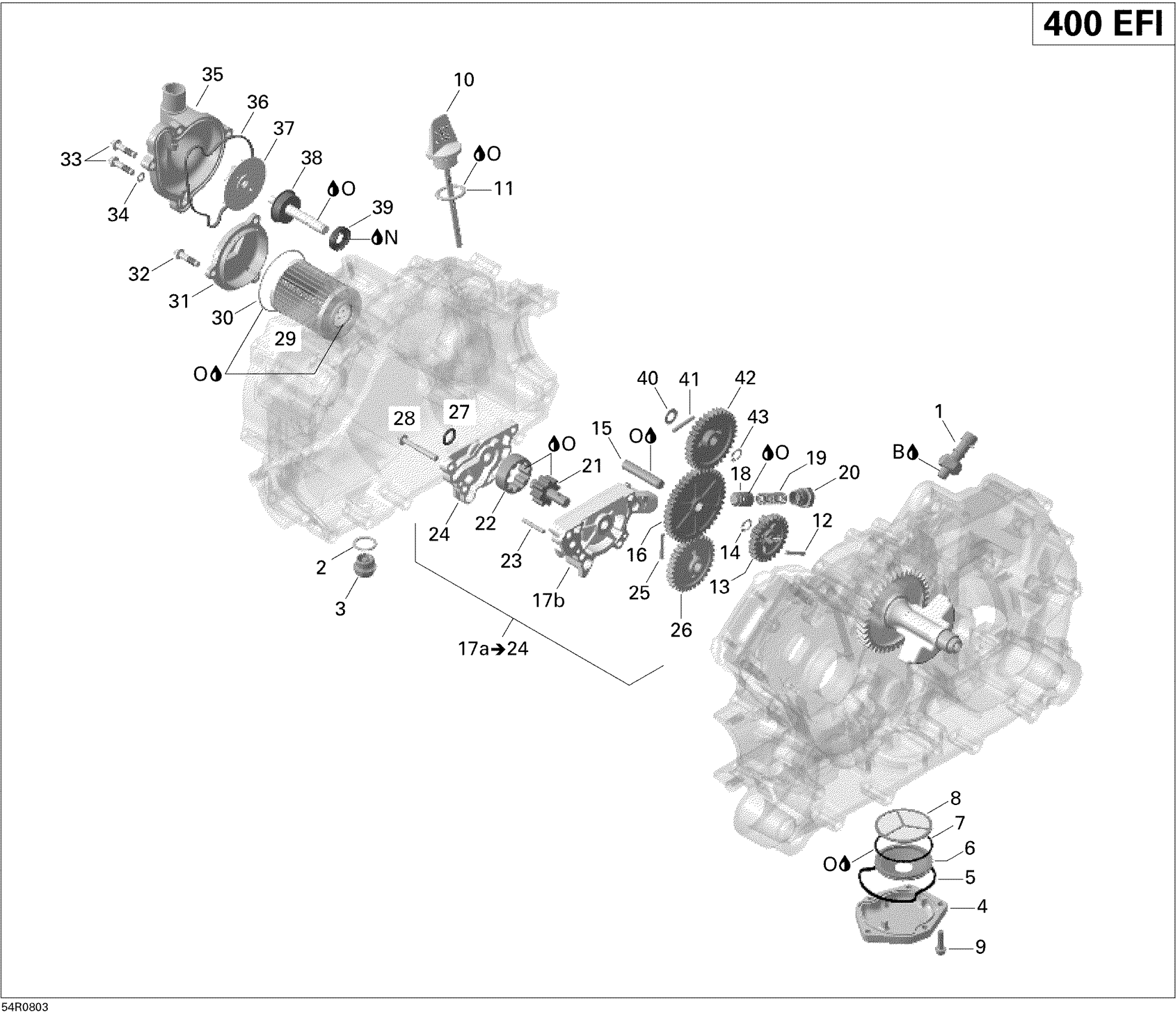

Can-Am Outlander MAX 400 EFI XT, 2008 Engine Lubrication Diagram

Inter.Press.Hui*Switch-Oil Pressure

Crush Washer

Drain Plug M18 X 1.5

OIL SIEVE COVER - Call your local BRP dealership

Rubber Ring

Oil Collector

O-Ring

Oil Sieve

Torx Flange Screw M6 X 20

Oil Dipstick

O-Ring

Needle Pin

Idle Gear, 25 Teeth

Snap Ring

Location Pin 10 M6x50

Idle Gear, 42 Teeth

Oil Pump Ass’y | Includes 17 to 24

Oil Pump Housing

Piston Valve

Compression Spring

Plug Screw M16

Oil Pump Shaft

Oil Pump Outer Rotor

Needle Pin

Oil Pump Cover

Needle Pin

Oil Pump Gear, 32 Teeth

O-ring

Torx Flange Screw M6 X 45

Oil Filter

O-Ring

Oil Filter cover

Torx Flange Screw M6 X 25

Torx Flange Screw M6 X 25

Seal Washer

Water Pump Housing

Gasket

Water Impeller

Waterpump Shaft Ass'y

Oil Seal

Thrust Washer

Needle Pin

Idle Gear, 34 Teeth

Snap Ring

Loctite 243, 10 ml

Grease, Super Lube

Not Available As Spare Part - Friction Washer
