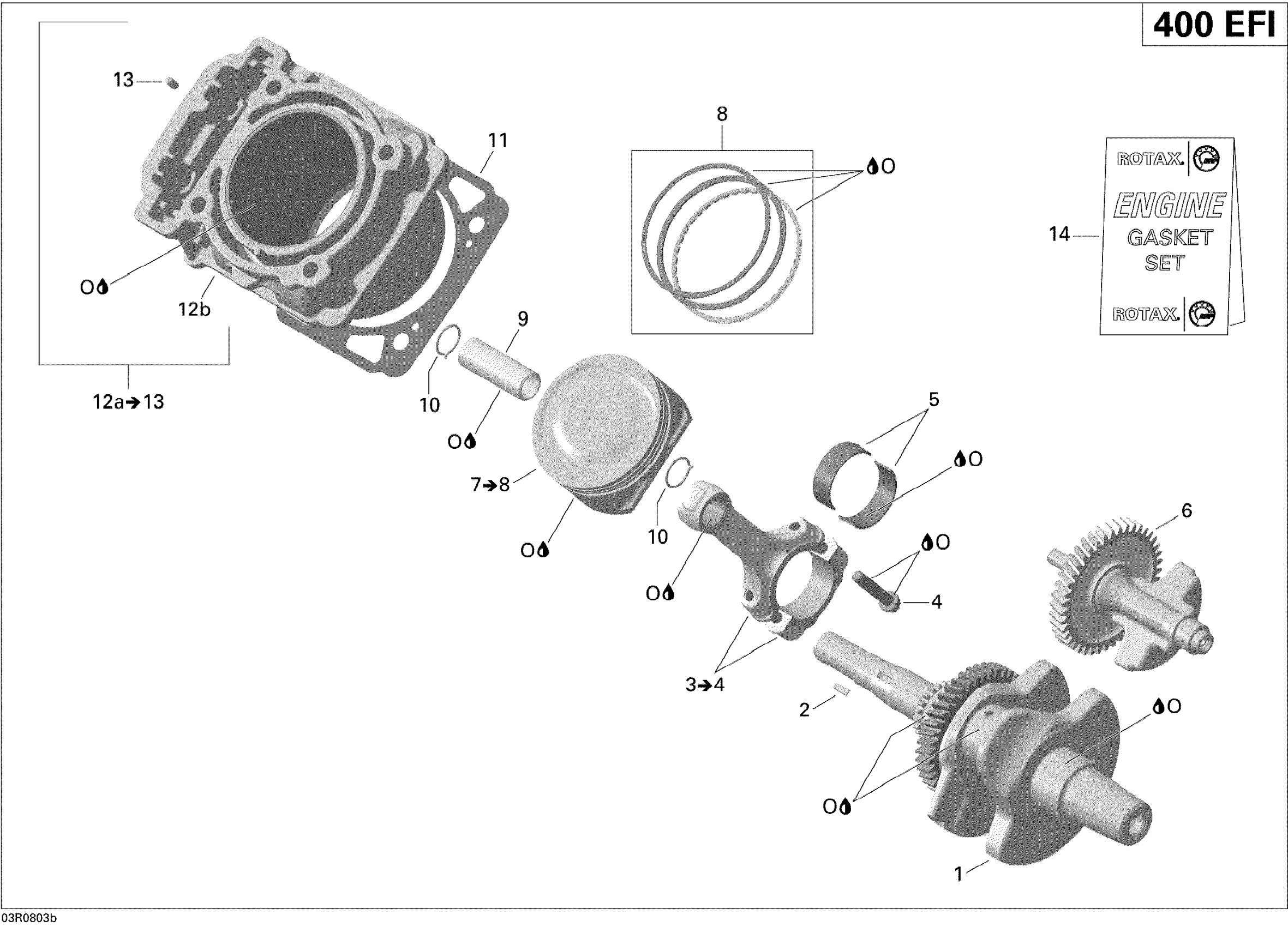

Can-Am Outlander MAX 400 EFI XT, 2008 Crankshaft And Piston Diagram

Crankshaft Ass'y

420296671

$649.49

Woodruff Key 4 X 5

420246570

$3.38

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

Connecting Rod Screw M8 X 1

420641645

$14.28

Plain Bearing 40 X 43 X 15

420233980

$28.49

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$159.49

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

Piston Ring Set | 400HO

420296774

$78.99

Not Available As Spare Part - Friction Washer

Unavailable

Piston Pin

420216270

$25.99

Piston Circlip

420845106

$3.93

Gasket

420630210

$12.71

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Drive Pin 5 X 10

420929650

$1.68

Gasket Set

420685129

$391.99

Not Available As Spare Part - Friction Washer

Unavailable
