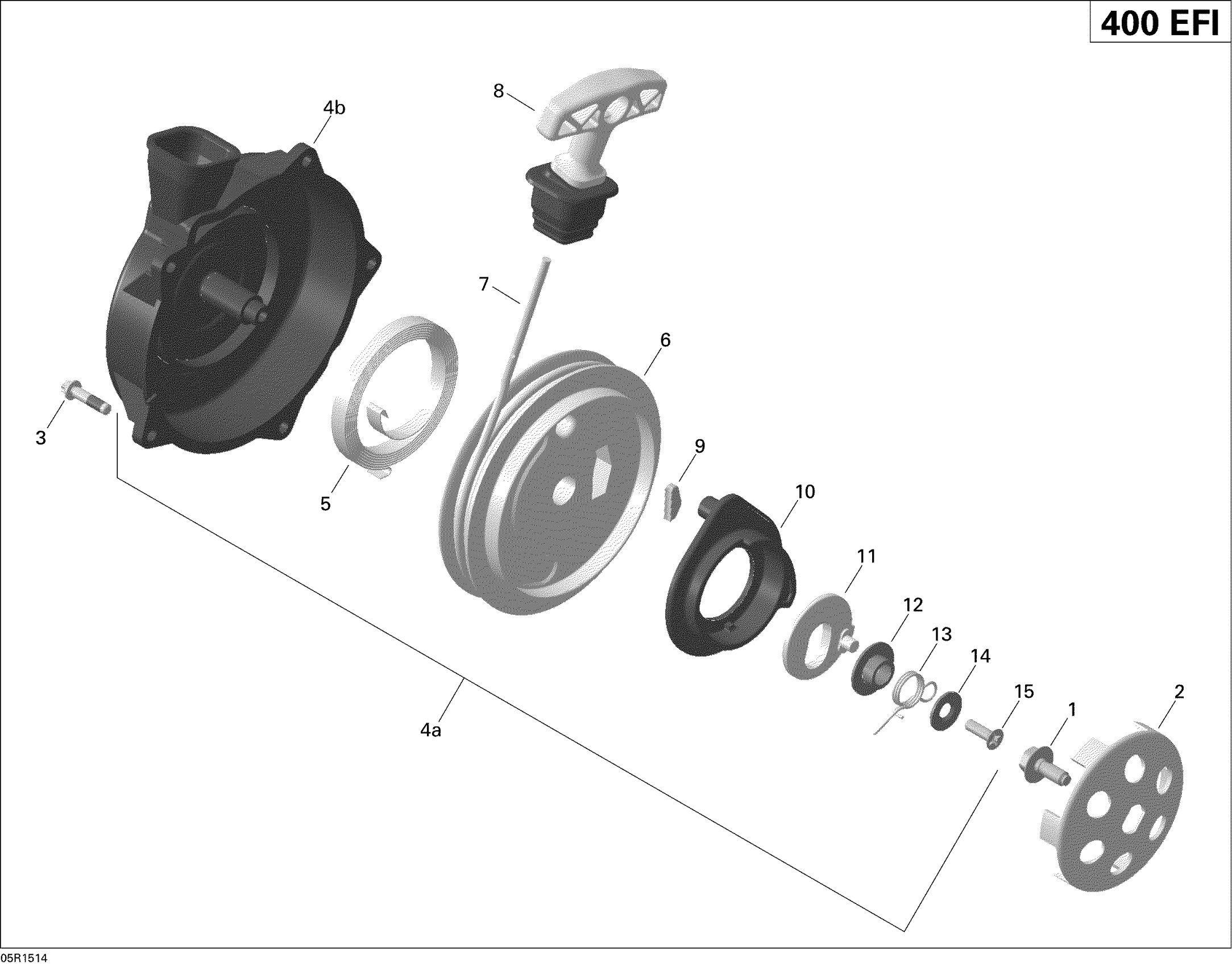

Can-Am Outlander Max 400 EFI, STD, XT (International only), 2015 04- Rewind Starter _05R1514 Diagram

#

Description

Price

1

Hex. Collar Screw M8 X 20 | 330HO

420241721

Unavailable

2

Starting Pulley

420852501

Unavailable

3

Hex. Screw M6 X 25

420240034

Unavailable

4a

Starter Rope Housing Ass'y | Includes 4 to 15

715001034

Unavailable

4b

Starter Rope Housing

420610930

Unavailable

5

Rewind Spring

420939115

Unavailable

6

Rope Sheave

420852283

Unavailable

7

Was 412500100 Rope-Starter

219704403

Unavailable

8

Starting Grip With Rubber Buffer

420852555

Unavailable

9

Key Clamp

420852070

Unavailable

10

Pawl

420852299

Unavailable

11

Lock Pawl

420852306

Unavailable

12

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

13

Locking Spring

420938989

Unavailable

14

Flat Washer

420244320

Unavailable

15

PLASTITE SCREW M6 X 20 - Call your local BRP dealership

420241730

Unavailable
