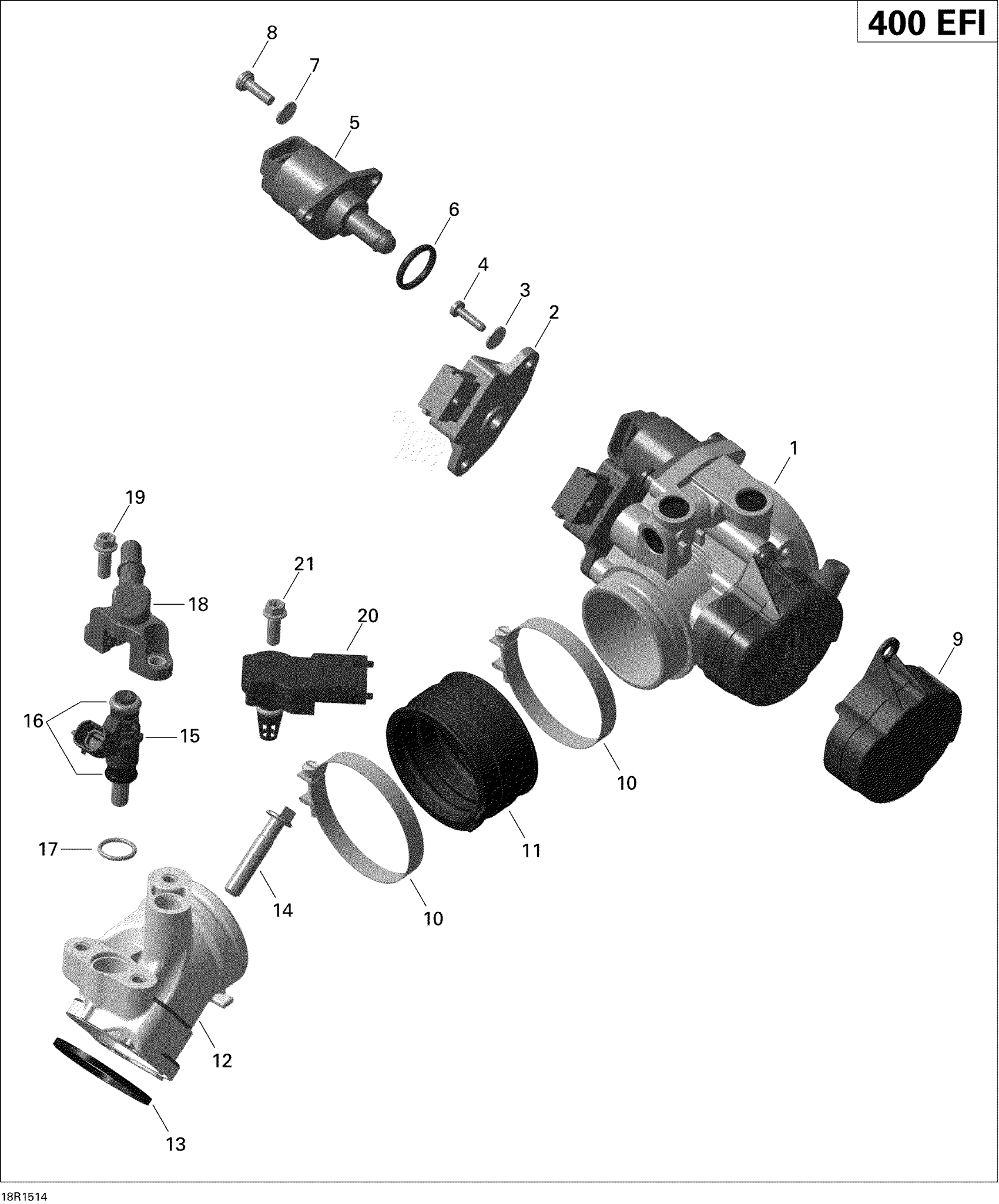

Can-Am Outlander Max 400 EFI, STD, XT (International only), 2015 02- Air Intake Manifold And Throttle Body _18R1514 Diagram

#

Description

Price

1

Throttle Body Ass'y | Includes 8 to 16

420685326

Unavailable

2

Position Sensor

420866120

Unavailable

3

Flat Washer 4 mm, Stainless

234042600

Unavailable

4

Phillips Screw M4 X 16

208641660

Unavailable

5

Idle Air Control Valve

420665941

Unavailable

6

O-Ring

420631780

Unavailable

7

Snap Ring

420845710

Unavailable

8

Binding Head Screw M5 X 16

420440911

Unavailable

9

Cover Kit

420281540

Unavailable

10

Clamp

420251480

Unavailable

11

Intake Adaptor

420267480

Unavailable

12

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

420267525

Unavailable

13

Gasket

420630642

Unavailable

14

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

Unavailable

15

Injection Valve

420874402

Unavailable

16

O-Ring

420631220

Unavailable

17

O-Ring

420631296

Unavailable

18

Fuel Rail

420874901

Unavailable

19

Torx Flange Screw M6 X 16

420641048

Unavailable

20

Pressure And Temperature Sensor

707000995

Unavailable

21

Torx Flange Screw M6 X 16

420641048

Unavailable
