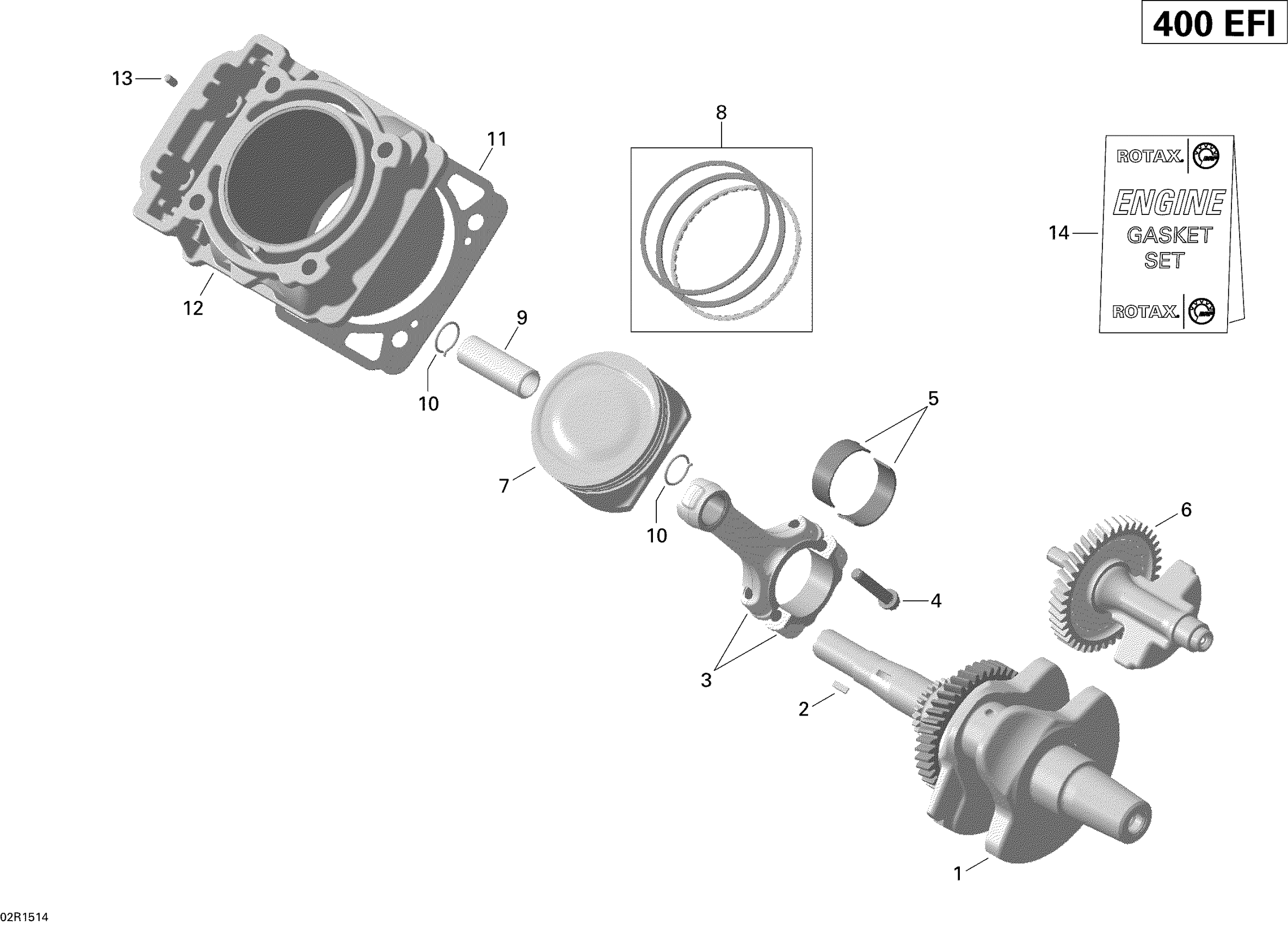

Can-Am Outlander Max 400 EFI, STD, XT (International only), 2015 Crankshaft And Pistons _02R1514 Diagram

Crankshaft Ass'y

420296671

$649.49

Woodruff Key 4 X 5

420246570

$3.49

Connecting Rod Ass’y | Includes 3 to 4

420217425

$234.99

Connecting Rod Screw M8 X 1

420641645

$14.49

Plain Bearing 40 X 43 X 15

420233980

$28.49

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$164.99

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$164.99

Piston Ring Set | 400HO

420296774

$81.99

Not Available As Spare Part - Friction Washer

Unavailable

Piston Pin

420216270

$26.99

Piston Circlip

420845107

$4.99

Gasket

420630210

$12.99

Cylinder With Sleeve

420413434

$469.99

Drive Pin 5 X 10

420929650

$1.69

Gasket Set

420685129

$391.99
