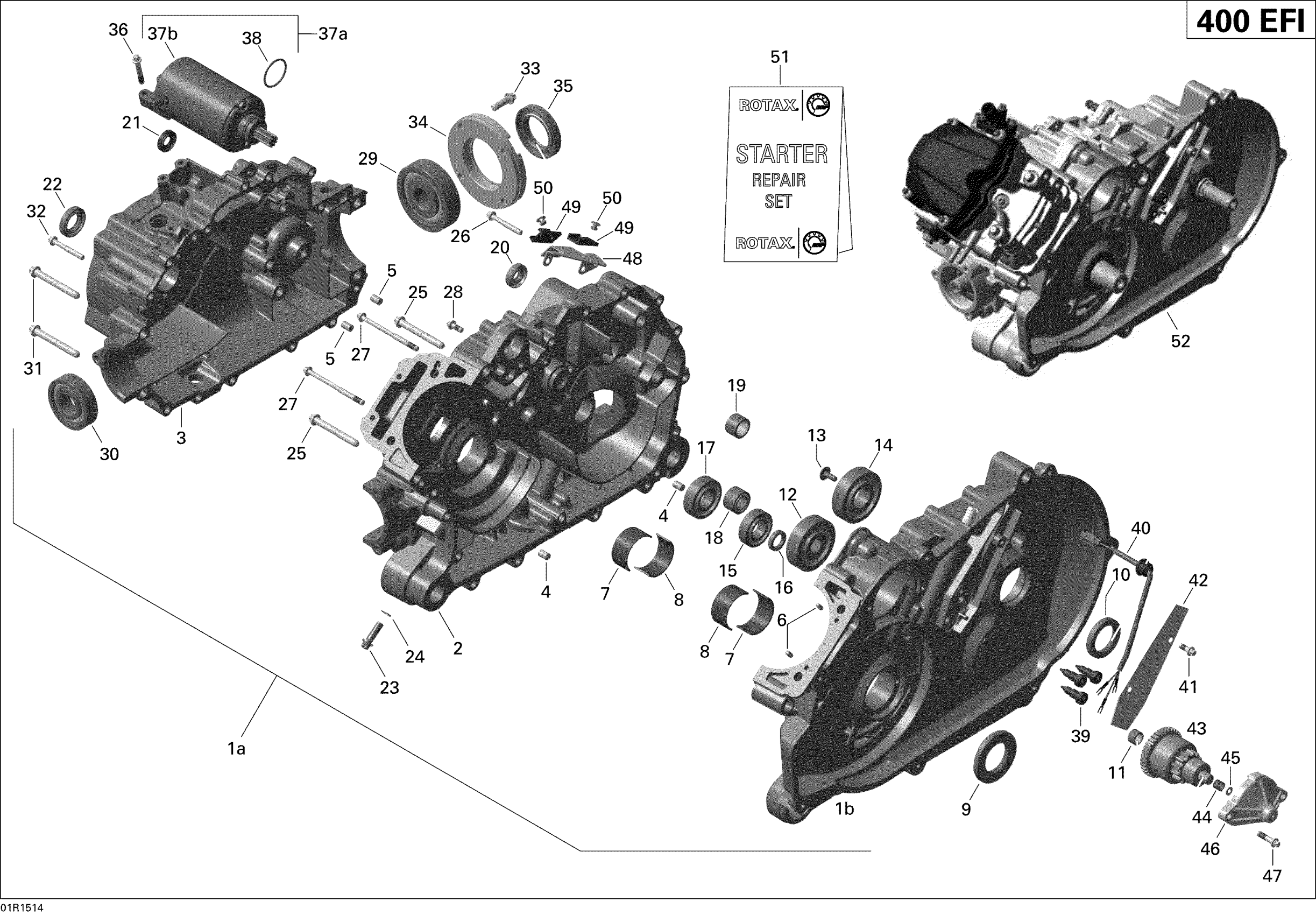

Can-Am Outlander Max 400 EFI, STD, XT (International only), 2015 Crankcase _01R1514 Diagram

#

Description
Price

1a

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Center Pin 8 X 12

420632010

$3.07

6

Drive Pin 5 X 10

420929650

$1.34

7

Plain Bearing

420233960

$22.36

8

Plain Bearing

420233965

$22.36

9

Oil Seal

420630152

$15.64

10

Oil Seal

420950089

$17.88

11

Needle Bushing

420232482

$15.57

12

Ball Bearing

420632295

$44.00

13

Torx Screw M6 X 16

420241529

$1.56

14

Ball Bearing

420932822

$28.33

15

Ball Bearing 6302

420232291

$27.58

16

Oil Seal

420250130

$16.39

17

Ball Bearing 6204

420932433

$21.61

18

Needle Bushing

420232085

$35.04

19

Needle Bushing

420832240

$19.37

20

Oil Seal

420250450

$15.64

21

Oil Seal

420650315

$9.62

22

Oil Seal

420930392

$11.77

23

Torx Flange Screw M8 X 25

420440372

$3.88

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 X 65

420440402

$7.01

26

Torx Flange Screw M6 X 45

420440324

$0.81

27

Torx Flange Screw M6 X 85

420641228

$6.11

28

Torx Flange Screw M6 X 16

420440162

$3.01

29

Ball Bearing 6405

420632280

$91.01

30

Ball Bearing

420932822

$28.33

31

Torx Flange Screw M8 X 65

420440402

$7.01

32

Torx Flange Screw M6 X 45

420440324

$0.81

33

Torx Flange Screw M8 X 25

420440372

$3.88

34

Bearing Cover

420610243

$52.96

35

Oil Seal

420650682

$17.88

36

Torx Flange Screw M6 X 35

420440274

$0.83

37a

Electric Starter | Includes 37 to 38

420684283

$265.99

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Position Switch

420241856

$34.30

40

Wiring Harness

420265831

$47.73

41

Torx Flange Screw M6 X 16

420440162

$3.01

42

Cover Sheet

420251290

$10.30

43

Starter Drive Assembly

420684052

$251.46

44

Spring

420938204

$5.29

45

Washer 5.3

420927574

$1.79

46

Reduction Cover Gear

420610891

$19.37

47

Hex. Screw M6 X 25

420240034

$1.56

48

Retaining Plate

420251491

$6.16

49

Connector Bracket

420260590

$11.33

50

Blind Rivet

420243010

$5.10

51

BRUSH KIT - Call your local BRP dealership

420266307

Unavailable

52

ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership | Includes 1 to 2

420040035

Unavailable
