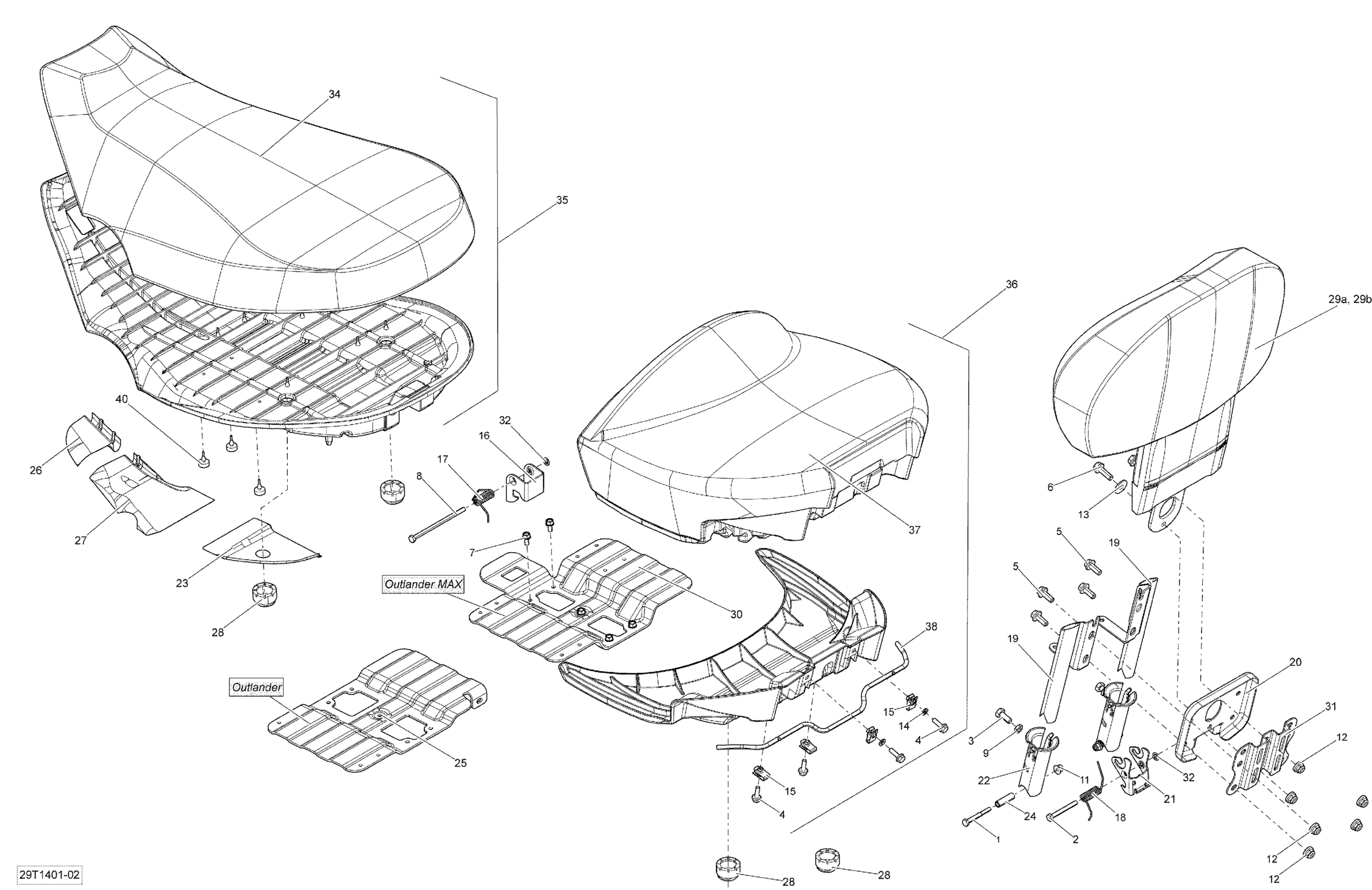

Can-Am Outlander Max 400 EFI, STD, XT, 2014 09- Seat Diagram
#
1
HEX. CAP SCREW M6 X 50 - Call your local BRP dealership
207065034
Unavailable
2
Hex. Screw M6 X 55
207065544
Unavailable
3
HEX. CAP SCREW M8 X 20 - Call your local BRP dealership
207182034
Unavailable
4
Hex. Flange Screw M6 X 20
207662044
Unavailable
5
Hex. Flange Screw M8 X 20
207682044
Unavailable
6
Hex. Flange Screw M8 X 25
207682544
Unavailable
7
Hex. Flange Screw M6 X 12
210261250
Unavailable
8
Hex. Screw M6 X 110
230061044
Unavailable
9
Hex. Jam Nut M8
232180600
Unavailable
11
Flange Elastic Nut M6
233261434
Unavailable
12
Hex. Flange Elastic Nut M8
233281414
Unavailable
13
Flat Washer 8 mm
234082410
Unavailable
14
Lock Washer M6, Black
234161471
Unavailable
15
Panel Nut M6 X 1.0
250100198
Unavailable
16
Latch, Black
708000144
Unavailable
17
Spring
708000369
Unavailable
18
Spring
708000369
Unavailable
19
LH BACKREST STEM - Call your local BRP dealership
708000439
Unavailable
19
RH BACKREST STEM - Call your local BRP dealership
708000443
Unavailable
20
FRONT PLATE - Call your local BRP dealership
708000446
Unavailable
21
LATCH - Call your local BRP dealership
708000448
Unavailable
22
ROD GUIDE - Call your local BRP dealership
708000461
Unavailable
23
REFLECTING SHEET - Call your local BRP dealership
708000514
Unavailable
24
INNER BUSHING - Call your local BRP dealership
708000530
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
REFLECTING SHEET - Call your local BRP dealership
708000649
Unavailable
27
REFLECTING SHEET - Call your local BRP dealership
708000650
Unavailable
28
Bumper Rubber
708000760
Unavailable
29a
Backrest Ass'y
708000809
Unavailable
29b
Backrest Cover
708000465
Unavailable
30
REINFORCEMENT SEAT - Call your local BRP dealership
708000817
Unavailable
31
REAR PLATE - Call your local BRP dealership
708000855
Unavailable
32
Push Nut
732610072
Unavailable
34
Seat Cover
708000556
Unavailable
35
Siege Assemblee*Seat Assembly | Includes 1 to 6
708001506
Unavailable
36
Rear Seat Ass'y | Includes 16 to 20
708000805
Unavailable
37
Seat Cover
708000457
Unavailable
38
LATCH HANDLE - Call your local BRP dealership
708000822
Unavailable
40
Rubber Stopper
708000759
Unavailable
