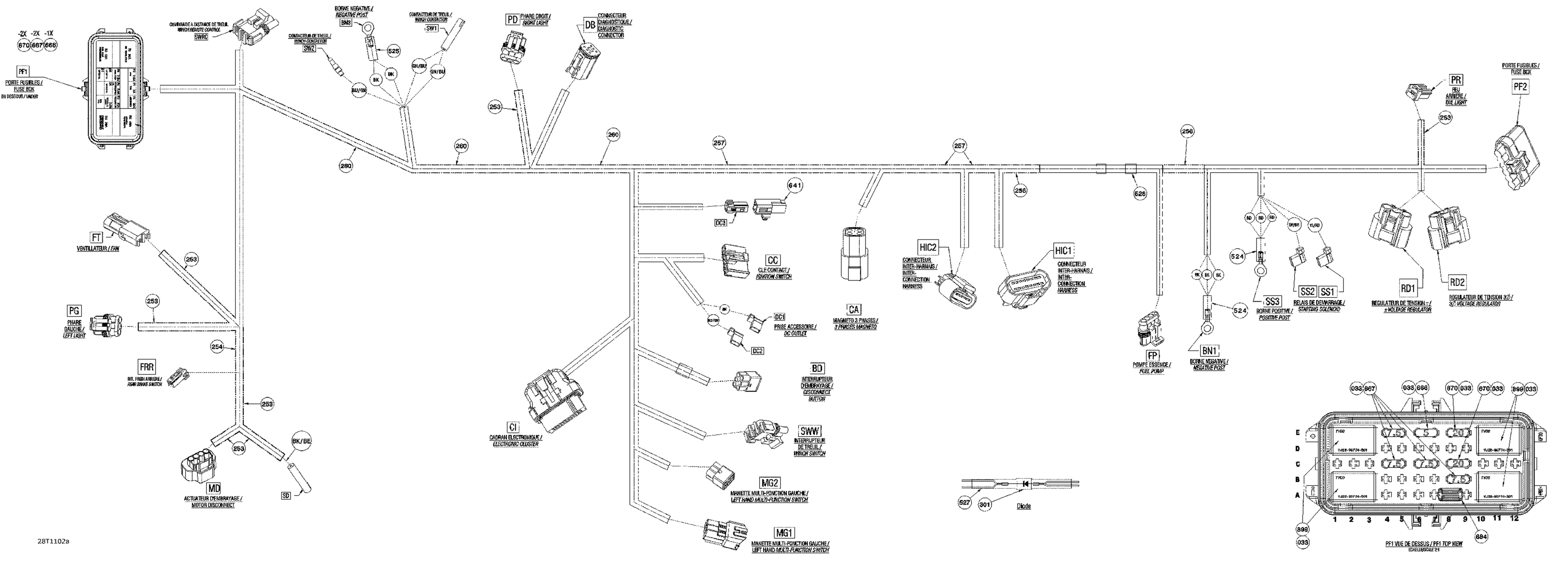

Can-Am Outlander Max 400 EFI, 2011 Main Harness Canada_Usa Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 to 1028

710002114

$729.99

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

301

Diode

409012700

$11.12

319

Male Terminal

515175568

$9.12

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

484

Seal

415128501

$1.89

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

641

Male Housing, 2 Circuits

710000667

$8.32

666

Little Fuse, 5 Amperes

710000742

$8.79

667

Little Fuse, 7.5 Amperes

710000743

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

672

Diode

710000748

$11.12

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

1028

Terminal | Canada/Usa

710001635

$3.19

BD

Female Terminal

409012100

$4.55

BD

Female Housing, 6 Circuits

710000081

$8.79

BD

Wire Seal

710000402

$4.55

BD

Cap

710000840

$5.89

BN1

Terminal

710000913

$5.61

BN3

Open Barrel

278000992

$2.21

C1

Plug

515175812

$2.19

C1

Female Housing, 24 Circuits

515175801

$9.59

C1

Retainer Block

515175802

$11.49

C1

Wire Seal

515175803

$2.99

C1

Female Terminal

515175806

$0.99

C1

Female Housing

710000399

$16.49

C1

Female Terminal

710001131

$8.89

CA

Sealing Cap

293000052

$3.19

CA

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

CA

Female Housing, 6 Circuits

710000081

$8.79

CA

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

CC

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

CC

Female Terminal

710000274

$9.59

CC

Lock

710000848

$3.19

CC

Male Housing, 6 Circuits

710000849

$9.69

DB

Female Terminal

278000632

$2.09

DB

Sealing Cap

293000052

$3.19

DB

Male Housing, 6 Circuits

515175673

$15.49

DB

Male Wedge, 6 Circuits

515175678

$5.39

DC1

Female Terminal

710000038

$4.55

DC2

Female Terminal

710000038

$4.55

DC3

Female Terminal

515175231

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FP

Female Terminal

278001014

$3.28

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FRR

Female Terminal

515175231

$4.39

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FT

Male Terminal

409004300

$5.61

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Clip

710000992

$4.29

HIC1

Housing

710001226

$13.49

HIC1

Seal

710001230

$2.24

HIC1

Seal

710001233

$3.19

HIC1

Terminal

710001229

$3.19

HIC1

Terminal

710001228

$3.28

HIC1

Cap

710001225

$9.19

HIC1

LOCK - Call your local BRP dealership

710001221

$9.39

HIC2

Housing

710001232

$14.29

HIC2

Seal

710001230

$2.24

HIC2

Seal

710001233

$3.19

HIC2

Terminal

710001229

$3.19

HIC2

Terminal

710001228

$3.28

HIC2

Cap

710001225

$9.19

HIC2

LOCK - Call your local BRP dealership

710001221

$9.39

MD

Male Housing, 4 Circuits

710000329

$15.36

MD

Female Terminal

710000335

$2.29

MD

Wire Seal

710000402

$4.55

MD

Cap

710000840

$5.89

MG1

Male Terminal

409011300

$5.93

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Cap

710000840

$5.89

MG2

Female Terminal

409012100

$4.55

MG2

Seal

409012300

$4.54

MG2

Wire Seal

710000402

$4.55

PD

Female Terminal

278001014

$3.28

PD

Female Housing, 3 Circuits

409209600

$35.99

PD

Wire Seal

278001013

$3.28

PF1

Wire Seal

278000999

$3.19

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Fuse Puller

710000781

$8.09

PF1

Female Terminal

710000836

$5.61

PF1

Female Terminal

710000837

$5.39

PF1

Cap

710000840

$5.89

PF1

Fuse Cover

710001026

$21.99

PF1

Fuse/Relay Decal

710001372

Unavailable

PF1

Foam

278002172

$5.89

PF2

Wire Seal

710000048

$7.69

PF2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PF2

WIRE SEAL - Call your local BRP dealership

278001505

Unavailable

PF2

Housing, 6 Circuits

710000888

$17.04

PF2

Lock

710000889

$4.39

PF2

Little Fuse, 30 Amperes

710000747

$8.49

PF2

Female Terminal

710000890

$4.55

PF2

Cover

710000897

$16.49

PF2

Clip

710000992

$4.29

PG

Female Terminal

278001014

$3.28

PG

Female Housing, 3 Circuits

409209600

$35.99

PG

Wire Seal

278001013

$3.28

PR

Female Terminal

515175231

$4.39

PR

Female Housing, 3 Circuits

515175495

$16.18

PR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

RD1

Female Terminal

710000877

$9.12

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Seal

710000881

$17.99

RD1

Cap

710000882

$11.49

RD2

Female Terminal

710000877

$9.12

RD2

Housing, 3 Circuits

710000880

$21.99

RD2

Seal

710000881

$17.99

SD

Insulated Sheath

278001007

$3.58

SD

Female Terminal

710000421

$6.11

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SS3

Terminal

710000913

$5.61

SW1

Insulated Sheath

278000770

$7.90

SW1

Female Terminal

710000421

$6.11

SW2

Insulated Sheath

278001008

$3.28

SW2

Female Terminal

278002261

$7.55

SWRC

Female Terminal

278000223

$3.19

SWRC

Male Housing, 3 Circuits

278000273

$9.59

SWRC

Wire Seal

710000504

$4.39

SWW

Female Terminal

278000223

$3.19

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

710000504

$4.39
