- Outlander Max 400 EFI, 2011
10- Electrical Accessories 2, Europe

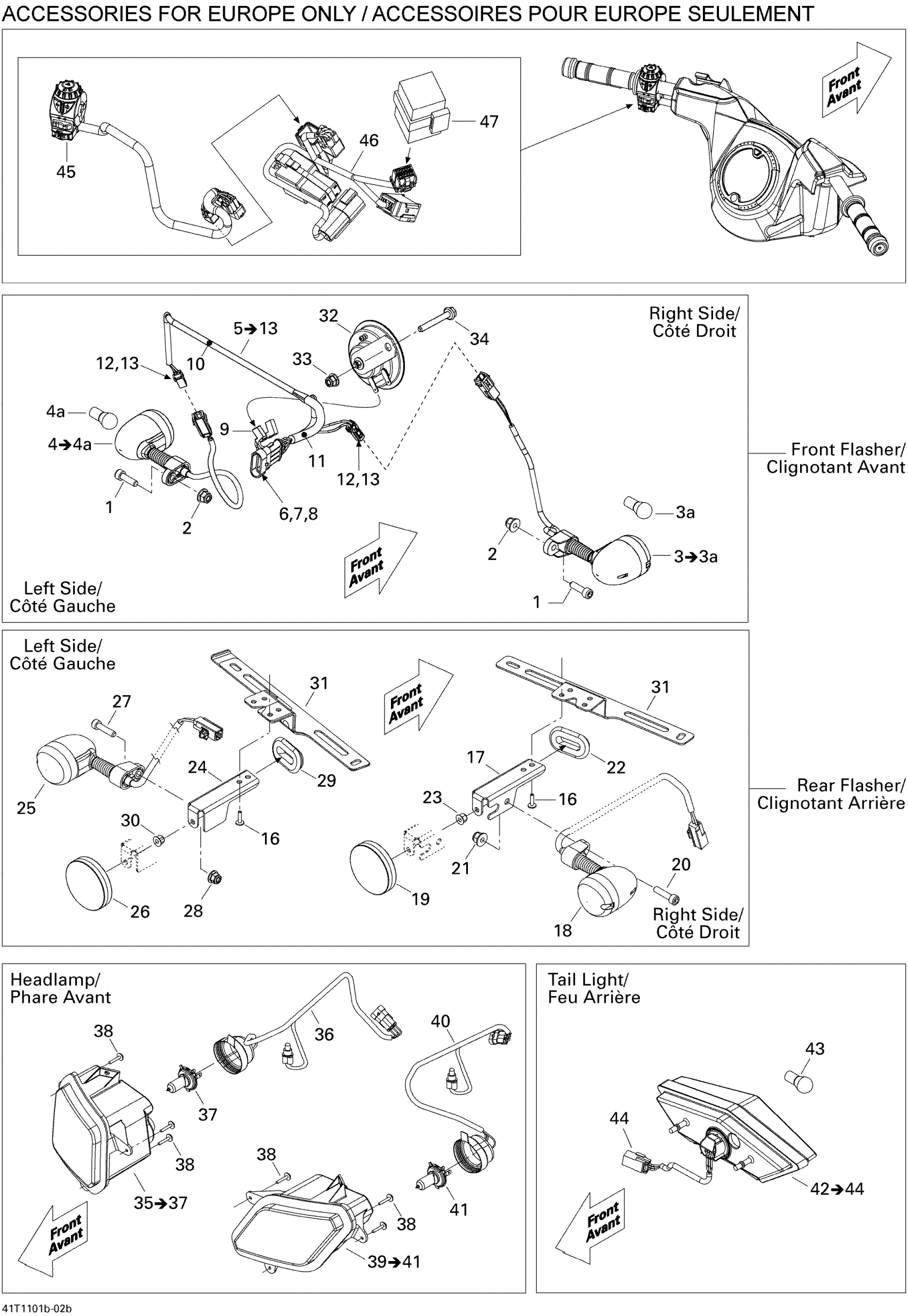

Can-Am Outlander Max 400 EFI, 2011 10- Electrical Accessories 2, Europe Diagram
#
1
Socket Head Screw M6 X 25
205062544
Unavailable
2
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
3
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
3a
Bulb
415129258
Unavailable
4
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
4a
Bulb
415129258
Unavailable
5
FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26
710001495
Unavailable
6
Male Terminal | Europe Models
409012900
Unavailable
7
HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models
710000576
Unavailable
8
Wire Seal
278001013
Unavailable
9
Female Terminal
409010300
Unavailable
10
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
11
Was 409901700 Tubing (9 mm)
219704399
Unavailable
12
Female Terminal
515175231
Unavailable
13
Female Terminal Housing, 2 Circuits
515176296
Unavailable
16
Pop Rivet 3/16"
390402400
Unavailable
17
BRACKET - Call your local BRP dealership
710001329
Unavailable
18
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
19
Red Reflector
705011221
Unavailable
20
Socket Head Screw M6 X 20
205062044
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Oblong Grommet
705003668
Unavailable
23
Hex. Flange Elastic Nut M5
233251414
Unavailable
24
BRACKET - Call your local BRP dealership
710001330
Unavailable
25
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
26
Red Reflector
705011221
Unavailable
27
Socket Head Screw M6 X 20
205062044
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Oblong Grommet
705003668
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
BRACKET - Call your local BRP dealership
710001241
Unavailable
32
Horn
710004791
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Hex. Flange Screw M6 X 45
207664544
Unavailable
35
RH Headlamp Ass'y | Includes 11 to 13
710000861
Unavailable
36
Headlamp Harness
710000923
Unavailable
37
Bulb, 12V 35/35W
710000871
Unavailable
38
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
39
LH Headlamp Ass'y | Includes 14 to 16
710000862
Unavailable
40
Headlamp Harness
710000923
Unavailable
41
Bulb, 12V 35/35W
710000871
Unavailable
42
Tail Light Housing Ass'y | Includes 17 to 19
710001204
Unavailable
43
Bulb
520000758
Unavailable
44
Male Housing, 3 Circuits
515175494
Unavailable
45
Multi-Function Handle
710004040
Unavailable
46
ADDED HARNESS, EUROPE - Call your local BRP dealership
710002358
Unavailable
47
FLASHER UNIT - Call your local BRP dealership
710001447
Unavailable
