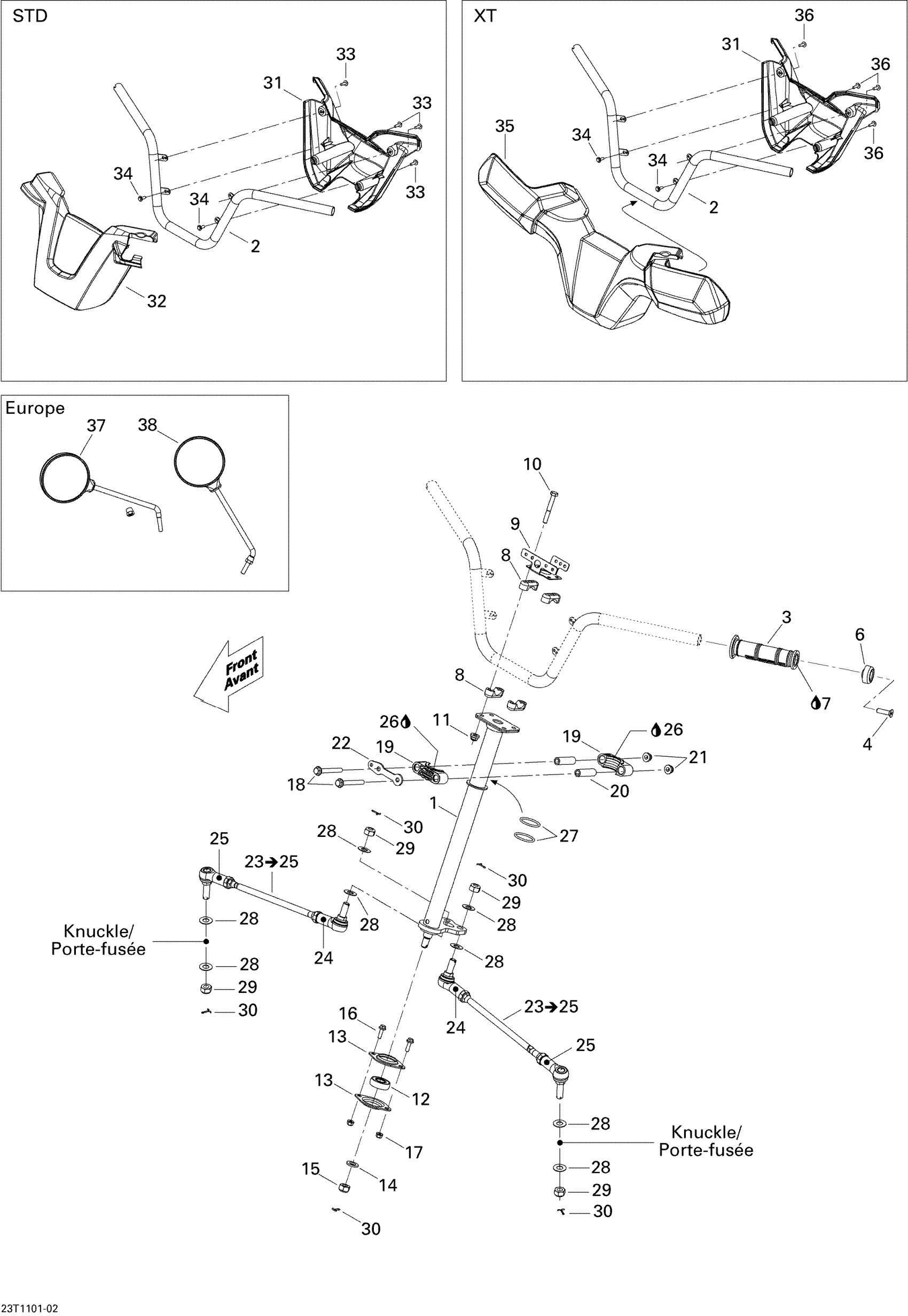

Can-Am Outlander Max 400 EFI, 2011 07- Steering Diagram

#

Description
Price

1

Main Tube

709401056

Unavailable

2

Steering | STD

709401237

Unavailable

3

Handle Grip

709400493

Unavailable

4

SOCKET HEAD SCREW, M8 - Call your local BRP dealership

205883046

Unavailable

6

END PIECE - Call your local BRP dealership

709400868

Unavailable

7

Loctite 406, 7 Oz

293800100

Unavailable

8

Steering Support

709400919

Unavailable

9

Connector Bracket

709400586

Unavailable

10

Hex. Screw M8 X 60

207086046

Unavailable

11

Hex. Elastic Flange Nut M8

233281416

Unavailable

12

Ball Bearing

709400439

Unavailable

13

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

14

Flat Washer 12 mm

234021410

Unavailable

15

Hex. Flange Elastic Nut M12

250000047

Unavailable

16

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

Hex. Flange Screw M8 X 70

207687044

Unavailable

19

Half Bushing

709400471

Unavailable

20

BUSHING - Call your local BRP dealership

709400072

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

23

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

24

LH Ball Joint

709402303

Unavailable

25

Ball Joint, RH Threads

709400487

Unavailable

26

Synthetic Grease, 400 G

293550010

Unavailable

27

O-Ring

293300068

Unavailable

28

Hardened Washer

706200281

Unavailable

29

Nut M12

250100099

Unavailable

30

Cotter Pin

211400013

Unavailable

31

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

Unavailable

32

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

33

Torx Screw K50 X 16

250000720

Unavailable

34

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

35

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable

36

Torx Screw K50 X 16

250000720

Unavailable

37

LH Mirror | Europe

709400406

Unavailable

38

RH Mirror | Europe

709400407

Unavailable
