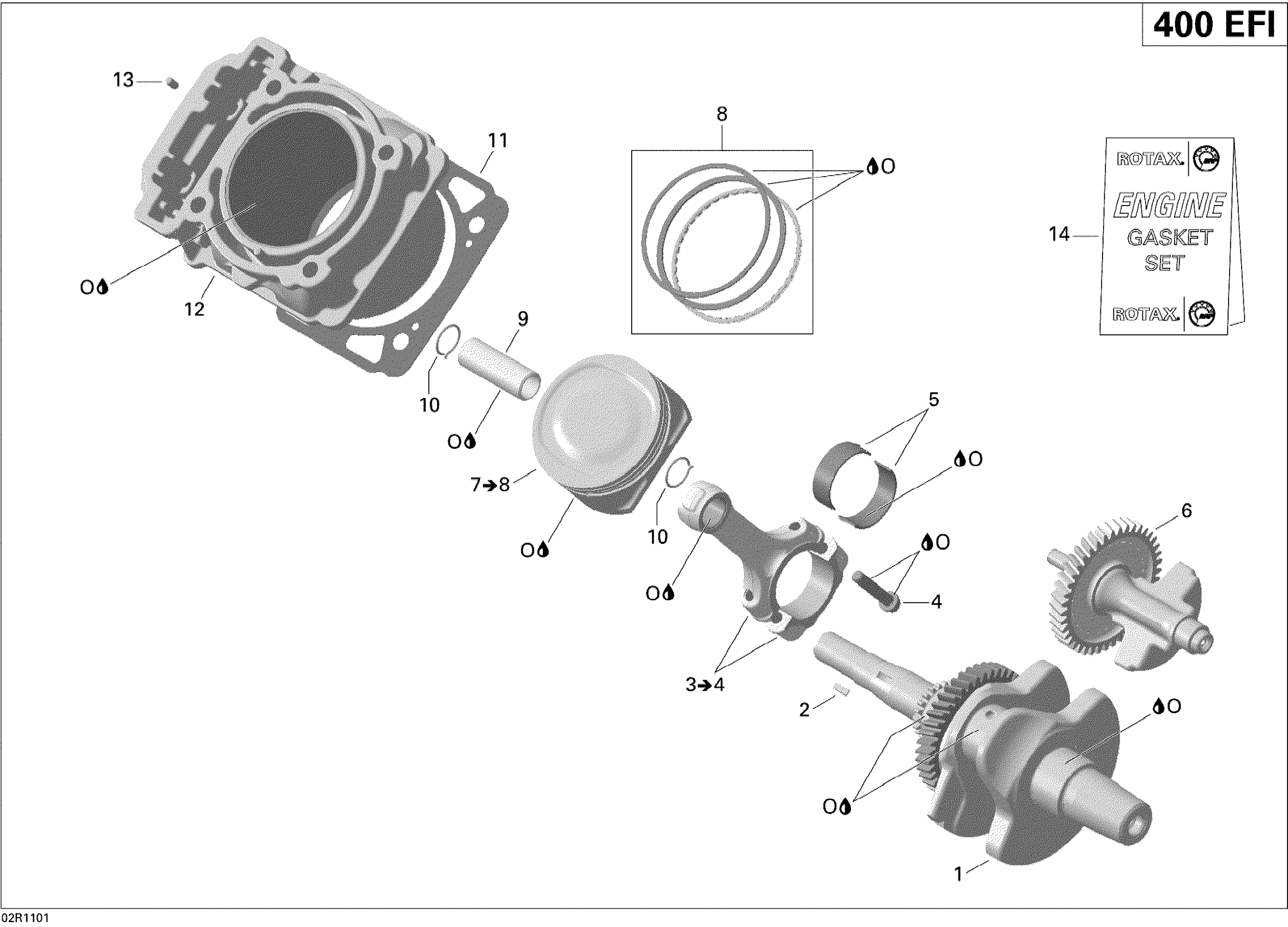

Can-Am Outlander Max 400 EFI, 2011 Crankshaft And Pistons Diagram

#

Description

Price

1

Crankshaft Ass'y

420296671

$649.49

2

Woodruff Key 4 X 5

420246570

$3.38

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

4

Connecting Rod Screw M8 X 1

420641645

$14.28

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

7

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$159.49

7

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$159.49

8

Piston Ring Set | 400HO

420296774

$78.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Piston Pin

420216270

$25.99

10

Piston Circlip

420845107

$4.89

11

Gasket

420630210

$12.71

12

Cylinder With Sleeve

420413434

$457.49

13

Drive Pin 5 X 10

420929650

$1.68

14

Gasket Set

420685129

$391.99

O

Not Available As Spare Part - Friction Washer

Unavailable
