Partiron

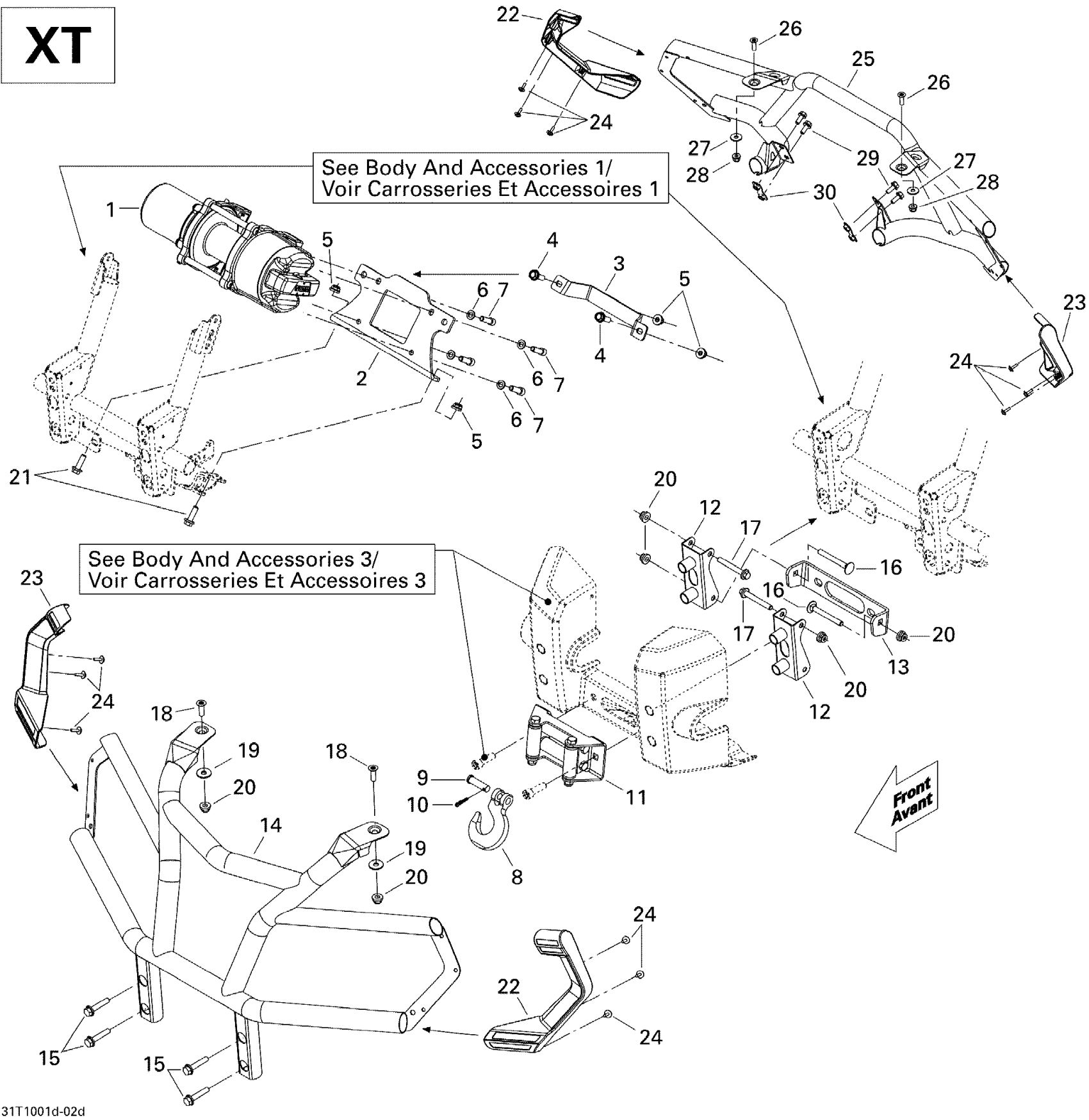

Can-Am Outlander Max 400 EFI, 2010 Body And Accessories XT Diagram

#

Description
Price

1

WINCH - Call your local BRP dealership

705002505

Unavailable

1

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

2

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable

3

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

4

Hex. Flange Screw M8 X 25

207682544

$1.03

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Lock Washer 8 mm

234181401

$0.87

7

Socket Head Screw M8 X 20

205082044

$1.06

8

Winch Hook Kit

705014949

$23.10

9

Clevis Pin

250400021

$11.48

10

Cotter Pin

250400022

$8.40

11

Fairlead_Roller Kit

715007699

$74.60

12

BUMPER BRACKET - Call your local BRP dealership

705003828

Unavailable

13

WINCH BRACKET - Call your local BRP dealership

705003649

Unavailable

14

Front Bumber | XT

705002812

$280.57

15

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

16

Carriage Bolt M8 X 70

207787044

$1.27

17

Hex. Flange Screw M8 x 60

207686044

$2.94

18

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

19

Flat Washer 8 mm

234082410

$1.27

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

Hex. Flange Screw M8 X 25

207682544

$1.03

22

LH Front Cap | XT

705002802

$10.16

23

RH Front Cap | XT

705002803

$10.16

24

Screw M4 X 16

250000725

$3.30

25

Rear Bumber | XT

705002806

$187.99

26

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

27

Flat Washer 8 mm

234082410

$1.27

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

Hex Screw Washer Head M8 X 20

207582054

$3.00

30

LINK PLATE - Call your local BRP dealership

705003796

Unavailable
