Partiron

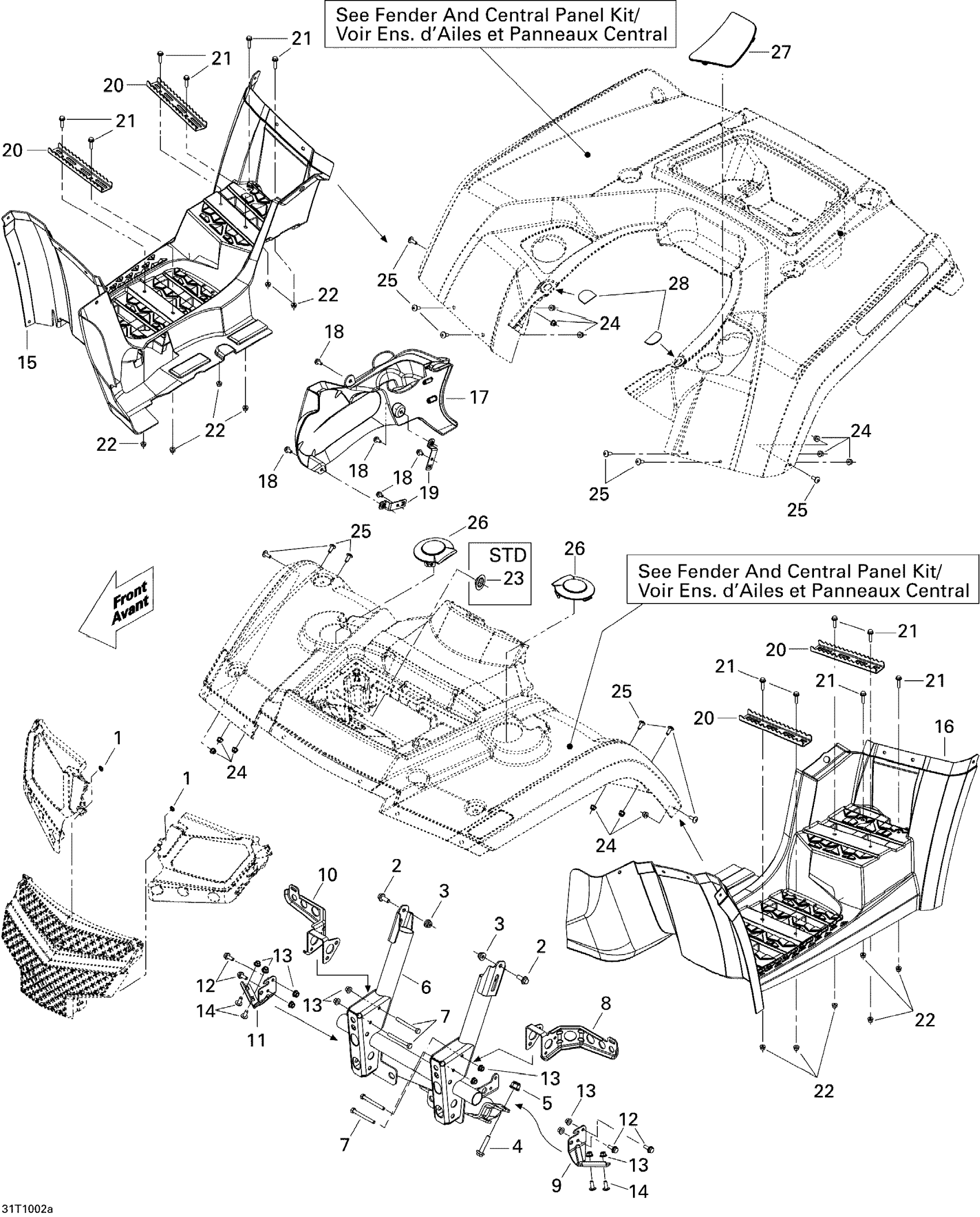

Can-Am Outlander Max 400 EFI, 2010 Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$1.97

2

Hex. Flange Screw M8 X 20

207682044

$1.06

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Hex. Flange Screw M10 X 30

207603044

$1.96

5

Hex. Flange Elastic Nut M10

233201414

$1.45

6

FRONT BUMPER - Call your local BRP dealership

705003654

Unavailable

7

Hex. Screw M6 X 60

207066044

$0.64

8

LH FACIA SUPPORT - Call your local BRP dealership

705002925

Unavailable

9

LH LOWER FACIA SUPPORT - Call your local BRP dealership

705003037

Unavailable

10

RH FACIA SUPPORT - Call your local BRP dealership

705002926

Unavailable

11

RH LOWER FACIA SUPPORT - Call your local BRP dealership

705003039

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.70

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Torx Screw M6 X 16

250000755

$0.82

15

RH Footboard

705002487

$162.66

16

LH Footboard

705003633

$162.66

17

Engine Cover

705003837

$34.30

18

Hex. Flange Screw M6 X 12

210261250

$1.79

19

Engine Cover Support

705003646

$7.21

20

Footrest

705003648

$38.78

21

Hex. Flange Screw M6 X 25

250000787

$2.10

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

23

PLASTIC CAP - Call your local BRP dealership | STD

293000103

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

25

Torx Screw M6 X 16

250000755

$0.82

26

FRONT CAP - Call your local BRP dealership

705001999

Unavailable

27

LH Rear Body Panel Cap

705017923

$12.30

28

RUBBER PAD - Call your local BRP dealership

705002219

Unavailable
