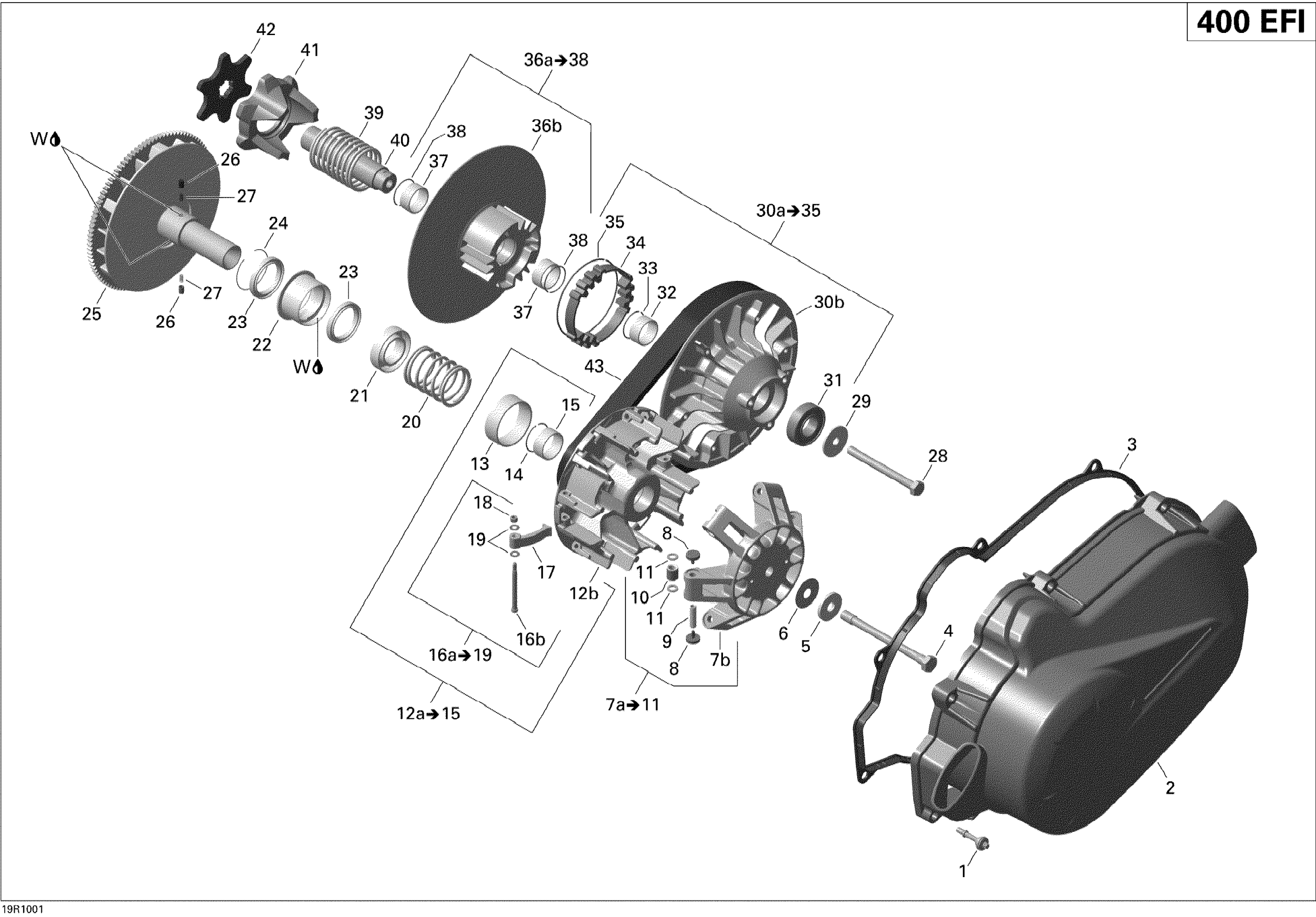

Can-Am Outlander Max 400 EFI, 2010 Transmission Diagram

#

Description
Price

1

Allen Screw M6 x 30,5

420440561

$4.21

2

CVT Cover

420610428

$214.15

3

CVT Cover Gasket

420630290

$29.82

4

Hex. Screw M12 X 140

420641812

$26.84

5

Spring Washer

420627760

$10.90

6

Thrust Washer

420627920

$6.93

7a

Governor Cup Ass'y | Includes 6 to 9

420280522

$241.76

7b

Not Available As Spare Part - Friction Washer

Unavailable

8

Slider Shoe Set

420281296

$41.01

9

Roller Axle

417223257

$6.37

10

Roller

417223767

$7.15

11

Roller

417223767

$7.15

12a

Outer Haft

420280467

$188.03

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$71.72

16b

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Compression Spring

420238166

$32.06

21

Seat Spring

420627578

$32.81

22

Clutch

420257439

$152.96

23

Ball Bearing

420632377

$46.24

24

Retaining Ring

420245951

$5.39

25

Inner Half Ass'y

420280247

$354.45

26

Spring Sleeve

420229577

$17.13

27

Compression Spring

420239135

$5.87

28

Hex. Screw M10 X 110

420441485

$11.37

29

Thrust Washer

420627594

$11.81

30a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.76

30b

Not Available As Spare Part - Friction Washer

Unavailable

31

Ball Bearing

420932421

$26.09

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Torque Gear

420660124

$21.61

35

Retaining Ring

420245911

$5.31

36a

Inner Half Ass'y | Includes 33 to 35

420248233

$293.54

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Compression Spring, Driven Pulley

420238173

$51.46

40

Driven Pulley Shaft

420220914

$115.64

41

Cam

420280250

$40.27

42

Cam Plate

420627586

$43.25

43

Drive Belt

422280283

$92.51

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$55.94
