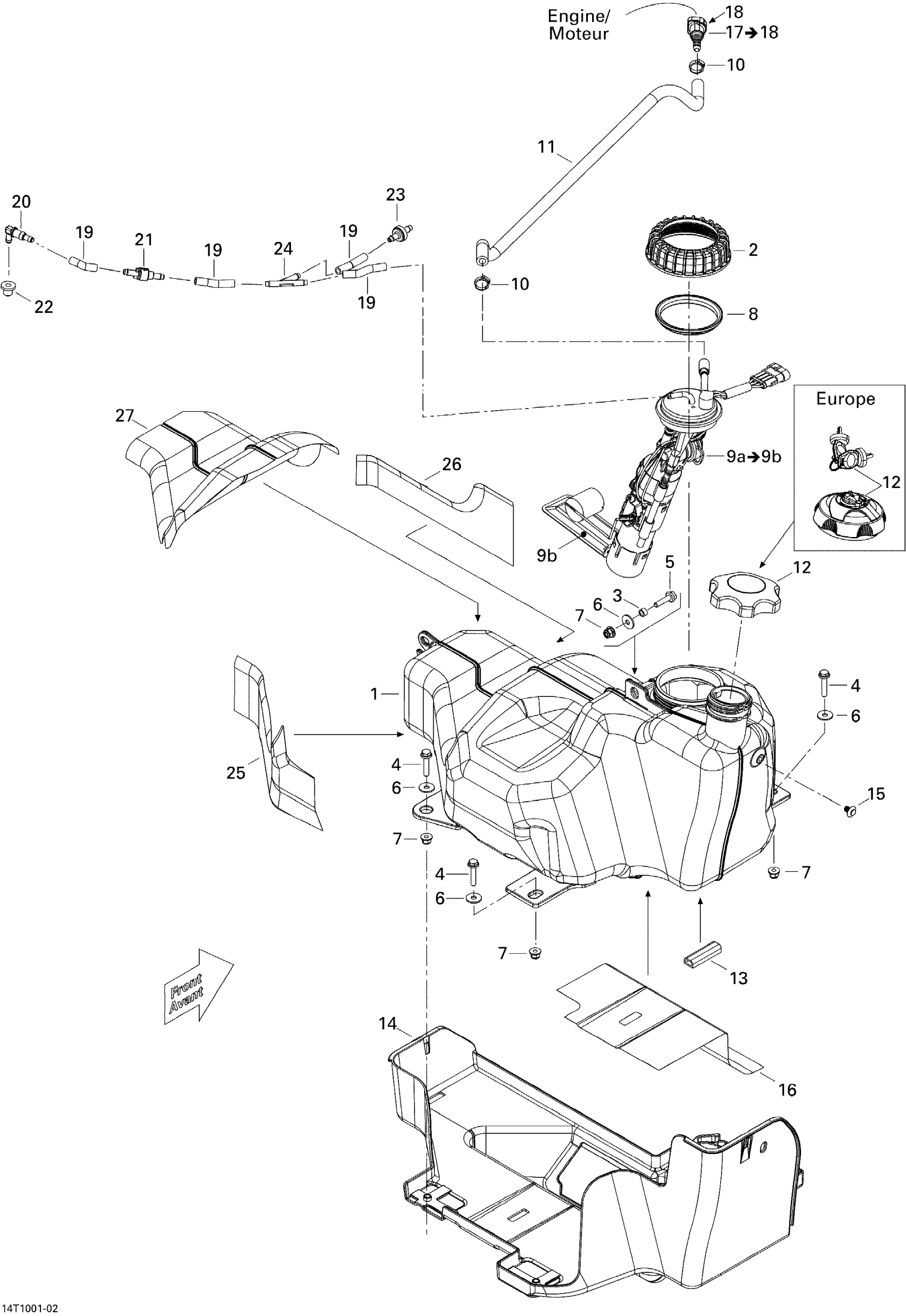

Can-Am Outlander Max 400 EFI, 2010 Fuel System Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

$224.60

2

Nut, Fuel Pump Module

513033040

$26.84

3

Bushing | DS 650 X

293900104

$5.10

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

5

Hex. Flange Screw M6 X 25

207662534

$2.00

6

Washer

224060251

$0.55

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

8

Seal

709000208

$12.16

9a

Fuel Pump Kit Ass'y

703500766

$353.87

9b

Not Available As Spare Part - Friction Washer

Unavailable

10

Oetiker Clamp

293650046

$2.67

11

Was 709000163 Fuel Line

219704440

$25.34

12

Fuel Tank Cap

513033025

$22.36

12

Fuel Tank Cap | Europe

709000267

$55.19

13

Was 293200017 Neoprene Seal

219704365

$135.79

14

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

15

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

16

REFLECTIVE SHEET - Call your local BRP dealership

709000149

Unavailable

17

Female Quick Fitting Ass'y

709000125

$12.76

18

Locking Clip

513033135

$4.96

19

Polyurethane Hose 10000Mm Long

219704410

$52.96

20

Elbow Male Connector

414580600

$4.01

21

Check Valve

513033469

$29.07

22

Grommet

293720029

$1.30

23

Check Valve

275500398

$9.84

24

Y-Fitting

293710059

$9.40

25

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

26

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

27

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable
