02- Air Intake Manifold And Throttle Body

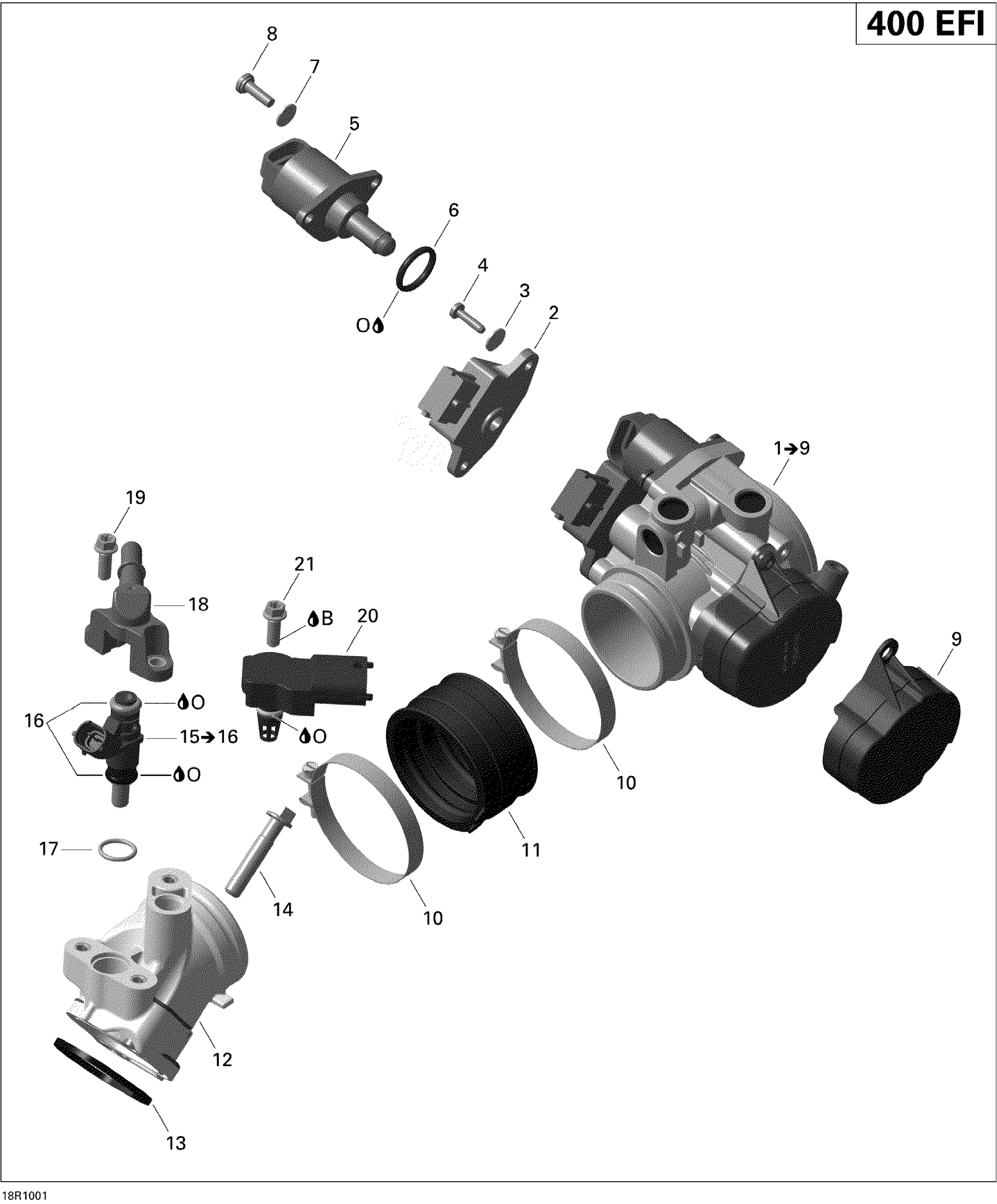

Can-Am Outlander Max 400 EFI, 2010 02- Air Intake Manifold And Throttle Body Diagram
#
Description
Price
1
Throttle Body Ass'y | Includes 8 to 16
420685326
Unavailable
2
Position Sensor
420866120
Unavailable
3
Flat Washer 4 mm, Stainless
234042600
Unavailable
4
Phillips Screw M4 X 16
208641660
Unavailable
5
Idle Air Control Valve
420665941
Unavailable
6
O-Ring
420631780
Unavailable
7
Snap Ring
420845710
Unavailable
8
Binding Head Screw M5 X 16
420440911
Unavailable
9
Cover Kit
420281540
Unavailable
10
Clamp
420251480
Unavailable
11
Intake Adaptor
420267480
Unavailable
12
ELBOW INTAKE ADAPTOR - Call your local BRP dealership
420267525
Unavailable
13
Gasket
420630642
Unavailable
14
ALLEN SCREW M8 X 40 - Call your local BRP dealership
420440482
Unavailable
15
Injection Valve
420874402
Unavailable
16
O-Ring
420631220
Unavailable
17
O-Ring
420631296
Unavailable
18
Fuel Rail
420874901
Unavailable
19
Torx Flange Screw M6 X 16
420641048
Unavailable
20
Pressure And Temperature Sensor
707000995
Unavailable
21
Torx Flange Screw M6 X 16
420641048
Unavailable
B
Loctite 243, 10 ml
293800060
Unavailable
O
Not Available As Spare Part - Friction Washer
Unavailable
