01- Exhaust System

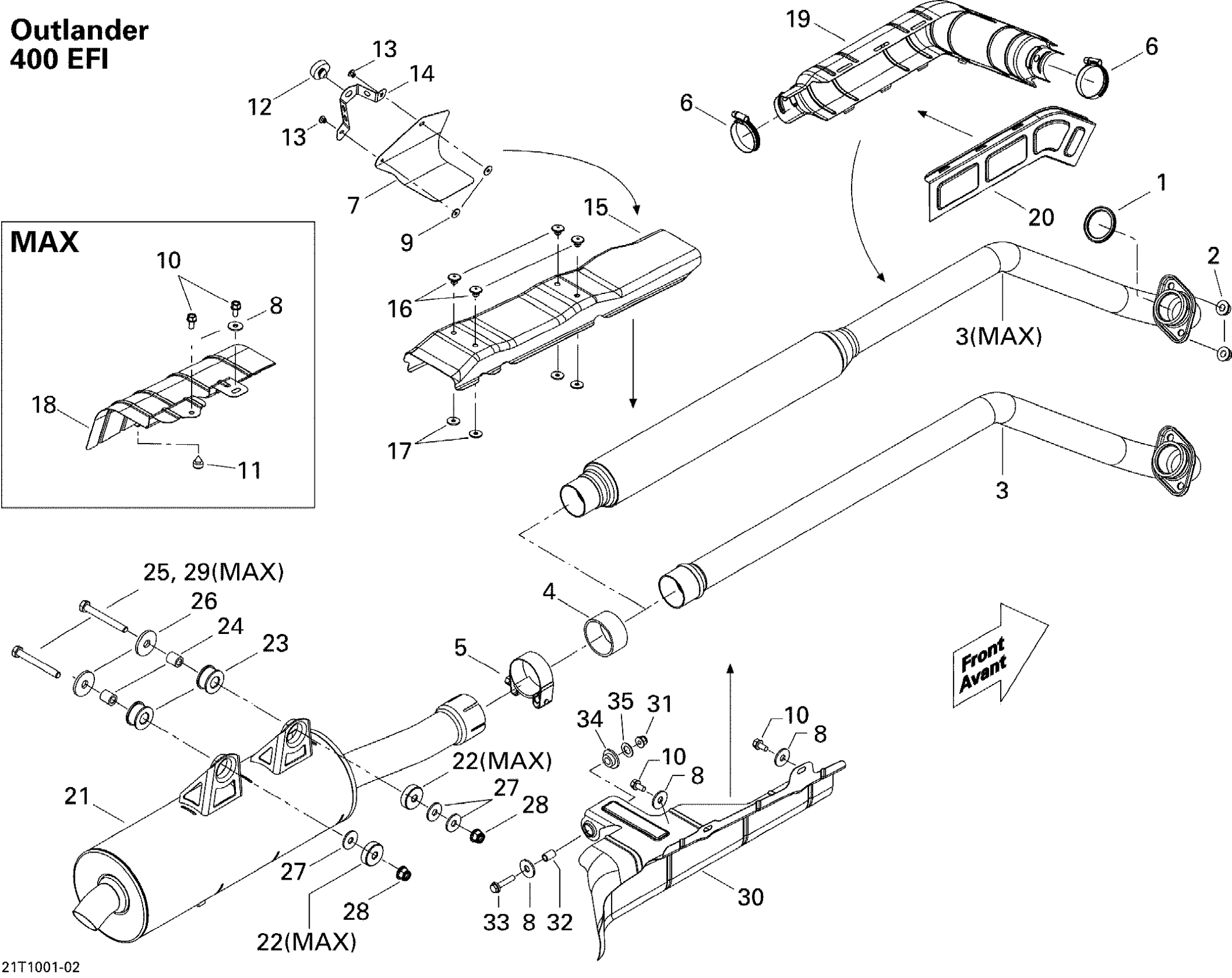

Can-Am Outlander Max 400 EFI, 2010 01- Exhaust System Diagram
#
1
Gasket
707600317
Unavailable
2
Hex. Flange Nut M8
233081416
Unavailable
3
PIPE_EXHAUST WELD - Call your local BRP dealership
707600599
Unavailable
4
Pipe Gasket
707600430
Unavailable
5
Norma Gear Clamp
293650177
Unavailable
6
Norma Gear Clamp
293650098
Unavailable
7
HEAT SHIELD - Call your local BRP dealership
707600618
Unavailable
8
Flat Washer
250200082
Unavailable
9
WASHER - Call your local BRP dealership
391301000
Unavailable
10
Hex. Flange Screw M6 X 12
210261250
Unavailable
11
Rubber Bumper
293830005
Unavailable
12
Rubber Stopper
708000506
Unavailable
13
RIVET_POP 1/8 X ,375 - Call your local BRP dealership
293150122
Unavailable
14
Panel Support
707600581
Unavailable
15
HEAT SHIELD - Call your local BRP dealership
707600700
Unavailable
16
Pop Rivet 3/16"
390406500
Unavailable
17
Washer
517124300
Unavailable
18
HEAT SHIELD - Call your local BRP dealership
707600459
Unavailable
19
Heat Base Shield
707600462
Unavailable
20
HEAT SHIELD COVER - Call your local BRP dealership
707600457
Unavailable
21
Muffler
707600574
Unavailable
21
MUFFLER_EXHAUST - Call your local BRP dealership | Europe
707600597
Unavailable
22
SPACER - Call your local BRP dealership
707600603
Unavailable
23
Vibration Damper
707603323
Unavailable
24
Bushing
293900106
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
Washer
503032900
Unavailable
27
Flat Washer 8 mm
234082410
Unavailable
28
Hex. Flange Elastic Nut M8
233281414
Unavailable
29
HEX. FLANGED SCREW M8 X 80 - Call your local BRP dealership
207688044
Unavailable
30
Protector
707600621
Unavailable
31
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
32
Sleeve
293900078
Unavailable
33
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
34
Grommet
705003932
Unavailable
35
Washer
503175800
Unavailable
