- Outlander Max 400 EFI, 2010
01- Cylinder Head

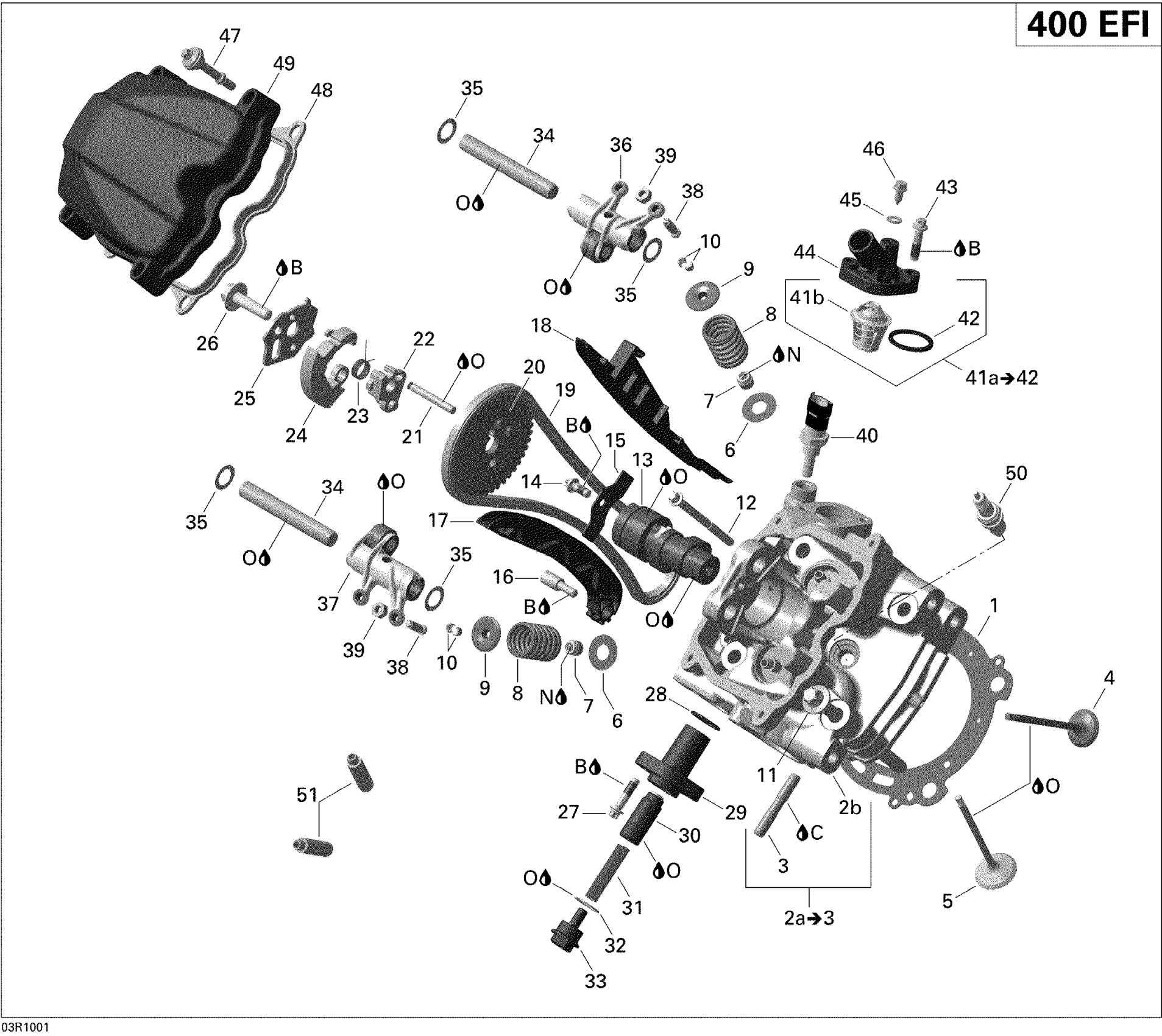

Can-Am Outlander Max 400 EFI, 2010 01- Cylinder Head Diagram
#
1
Cylinder Head Gasket | 400HO
420630195
Unavailable
2a
Cylinder Head | Includes 2 to 3
420413397
Unavailable
2b
Not Available As Spare Part - Friction Washer
Unavailable
3
Stud M8 x 26
420941014
Unavailable
4
Intake Valve 31MM
420254359
Unavailable
5
Exhaust Valve 27MM
420254368
Unavailable
6
Thrust Washer
420627525
Unavailable
7
Valve Stem Seal
420230515
Unavailable
8
Valve Spring
420239295
Unavailable
9
Valve Spring Retainer
420254132
Unavailable
10
Cotter Valve
420254120
Unavailable
11
Torx Screw M10X140
420641551
Unavailable
12
Torx Flange Screw M6 X 85
420641228
Unavailable
13
Camshaft
420620011
Unavailable
14
Torx Flange Screw M6 X 16
420440162
Unavailable
15
Holding Strip
420627743
Unavailable
16
Bearing Screw M6
420240943
Unavailable
17
Chain Tension Guide
420436015
Unavailable
18
Chain Guide
420236584
Unavailable
19
Silent Chain
420297063
Unavailable
20
Camshaft Sprocket
420254434
Unavailable
21
Deko Shaft | 400HO
420620120
Unavailable
22
Spacer | 400HO
420231080
Unavailable
23
Deko Torsion Spring | 400HO
420238270
Unavailable
24
Centrifugal Weight | 400HO
420231070
Unavailable
25
Deko Washer | 400HO
420231090
Unavailable
26
Hex. Collar Screw M8 X 32 | 400HO
420641820
Unavailable
27
Torx Flange Screw M6 X 25
420440234
Unavailable
28
O-Ring
420430373
Unavailable
29
Chain Tensioner Housing
420236510
Unavailable
30
Chain Tensioner Plunger
420236521
Unavailable
31
Spring
420238120
Unavailable
32
O-Ring
420250890
Unavailable
33
Plug Screw
420641150
Unavailable
34
Pin #12, Small, M6 X 90
420229712
Unavailable
35
Shim
420944382
Unavailable
36
Inlet Rocker Arm
420254907
Unavailable
37
Exhaust Rocker Arm
420254911
Unavailable
38
Adjustment Screw M6 X 0.75
420241337
Unavailable
39
Hex Nut M6
420242913
Unavailable
40
Temperature Sensor
278002895
Unavailable
41a
Thermostat 65° With Gasket Ass'y | Includes 42 to 43
420222494
Unavailable
41b
Not Available As Spare Part - Friction Washer
Unavailable
42
Thermostat Gasket
420650300
Unavailable
43
Torx Flange Screw M6 X 25
420440234
Unavailable
44
Thermostat Cover
420222696
Unavailable
45
Gasket Ring
420650255
Unavailable
46
Screw M5 X 16
420441621
Unavailable
47
Allen Screw M6 x 30,5
420440561
Unavailable
48
Gasket
420630260
Unavailable
49
Valve Cover
420610393
Unavailable
50
Spark Plug, NGK DCP-R8E
715900637
Unavailable
51
Valve Guide
420254374
Unavailable
B
Loctite 243, 10 ml
293800060
Unavailable
C
Sealant Loctite 648
219703000
Unavailable
N
Grease, Super Lube
293550030
Unavailable
O
Not Available As Spare Part - Friction Washer
Unavailable
