10- Electrical System

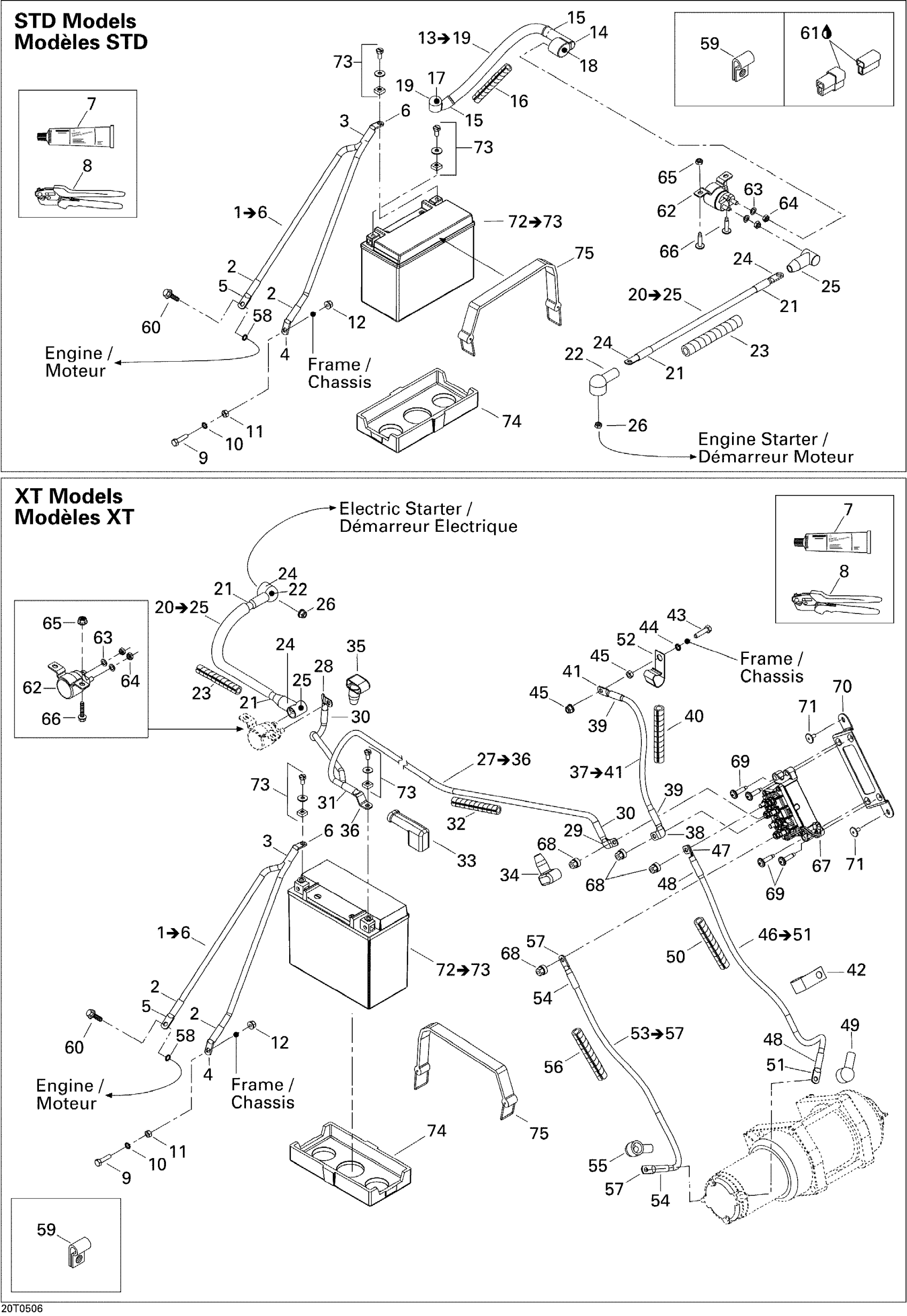

Can-Am Outlander MAX 400, 2005 10- Electrical System Diagram
#
1
Ground Cable, Frame/Engine | Includes 1 To 6
710000458
Unavailable
2
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
3
Shrink Tubing | XT Models
275500578
Unavailable
4
Open Barrel
710000540
Unavailable
5
Open Barrel
710000530
Unavailable
6
Open Barrel
710000539
Unavailable
7
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
8
Crimp Plier
529035730
Unavailable
9
Hex. Screw M6 X 25
207162544
Unavailable
10
External Serrated Lock Washer 6 mm
234461608
Unavailable
11
Hex. Nut M6
232061414
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Positive Cable, Battery/Solenoid | STD Models, Includes 13 To 19
710000520
Unavailable
14
TERMINAL_FEMALE - Call your local BRP dealership | STD Models
710000475
Unavailable
15
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
16
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
17
Protector Cap | STD Models
710001829
Unavailable
18
Protector Cap | STD Models
710000523
Unavailable
19
Open Barrel | STD Models
710000518
Unavailable
20
Positive Cable | Includes 20 To 25
710000459
Unavailable
21
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
22
PROTECTOR CAP - Call your local BRP dealership
710000496
Unavailable
23
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
24
Open Barrel
710000530
Unavailable
25
Protector Cap
710000526
Unavailable
26
Hex. Elastic Stop Nut M6
232561600
Unavailable
27
Positive Cable | XT , Includes 27 To 36
710000480
Unavailable
28
TERMINAL_FEMALE - Call your local BRP dealership | STD Models
710000475
Unavailable
29
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
30
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
31
Shrink Tubing | XT Models
275500578
Unavailable
32
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
33
Protector Cap | STD Models
710001829
Unavailable
34
Protector Cap | XT Models
710001828
Unavailable
35
Protector Cap | STD Models
710000523
Unavailable
36
Open Barrel | XT Models
710000519
Unavailable
37
NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41
710000455
Unavailable
38
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
39
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
40
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
41
Open Barrel
710000530
Unavailable
42
CLAMP - Call your local BRP dealership
705600311
Unavailable
43
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
44
External Serrated Lock Washer 6 mm
234461608
Unavailable
45
Hex. Nut M6
232061414
Unavailable
46
Winch Positive Cable, Blue | XT Models, Includes 46 To 51
710000451
Unavailable
47
OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models
710000476
Unavailable
48
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
49
Protector Cap
710000494
Unavailable
50
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
51
Open Barrel
710000530
Unavailable
52
CLAMP - Call your local BRP dealership
705600311
Unavailable
53
WINCH POSITIVE CABLE, YELLOW - Call your local BRP dealership | XT Models, Includes 53 To 57
710000454
Unavailable
54
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
55
Protector Cap
710000494
Unavailable
56
PROTECTOR TUBE, 9 MM - Call your local BRP dealership
710000497
Unavailable
57
Open Barrel
710000530
Unavailable
58
External Serrated Lock Washer 6 mm
234461608
Unavailable
59
Clip
414227300
Unavailable
60
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
61
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
62
Starter Relay
515176011
Unavailable
63
Lock Washer Helical M6
234161601
Unavailable
64
Hex. Nut M6
232061600
Unavailable
65
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
66
Hex. Flange Screw M6 X 16
207661644
Unavailable
67
Winch Solenoid | XT Models
710001000
Unavailable
68
Elastic Stop Nut M6
232561414
Unavailable
69
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
70
Winch Relay Bracket | XT Models
705200773
Unavailable
71
Pop Rivet 3/16"
390406500
Unavailable
72
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
73
Battery Bolt Kit
250000282
Unavailable
74
INSULATOR PAD - Call your local BRP dealership
710000279
Unavailable
75
Retainer Strap
293850097
Unavailable
