09- Body And Accessories 2

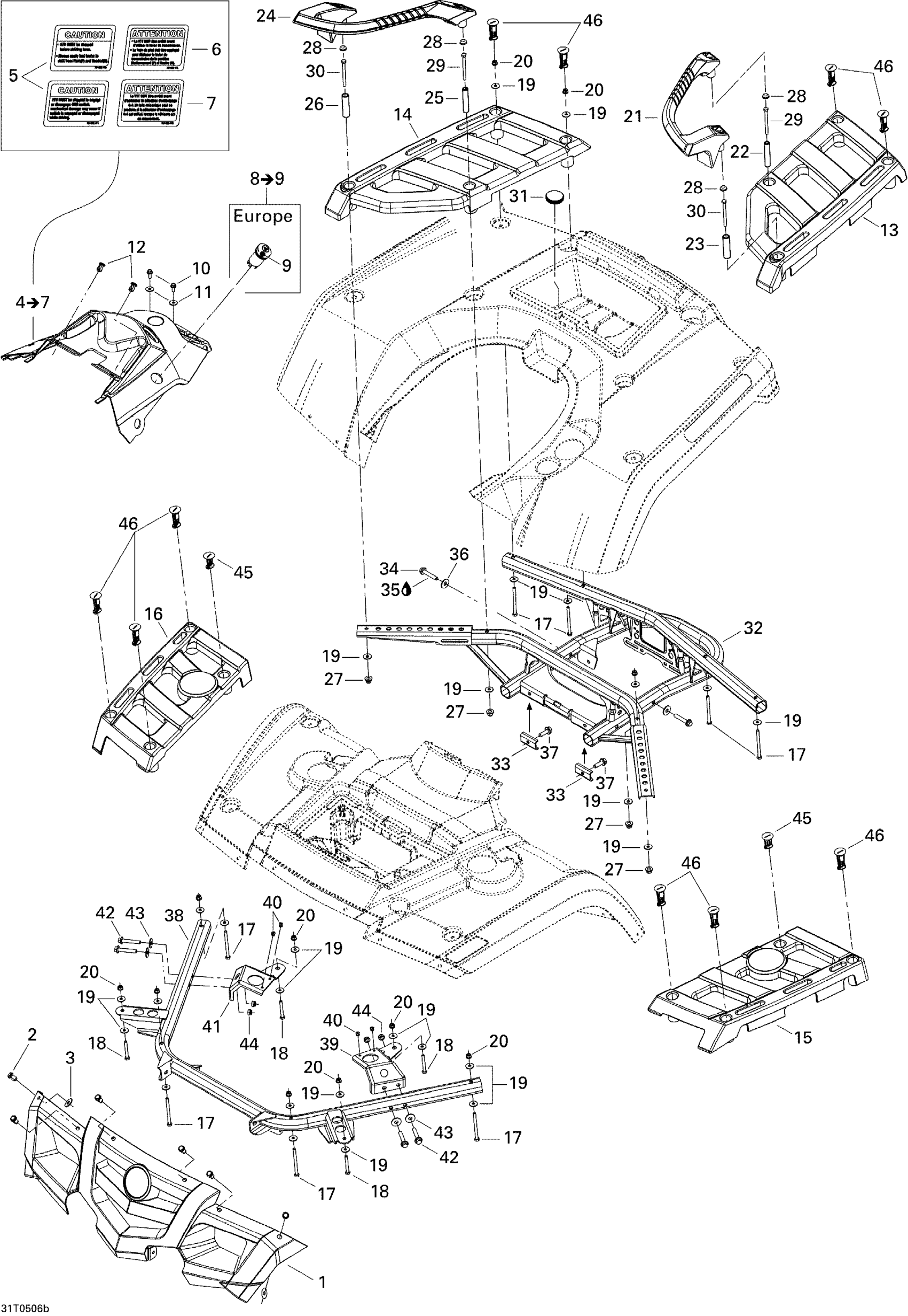

Can-Am Outlander MAX 400, 2005 09- Body And Accessories 2 Diagram
#
1
Front Fascia, Viper Red | Viper Red
705000432
Unavailable
1
FRONT FASCIA, LAURENTIAN GREEN - Call your local BRP dealership | Laurentian Green
705000734
Unavailable
1
Front Fascia, Yellow | Yellow
705000851
Unavailable
2
Tuflok Plastic Rivet
293150230
Unavailable
3
Flat Washer 8 mm
234082410
Unavailable
4
Console, Viper Red | Includes 4 to 7 / Viper Red
703500266
Unavailable
4
Console, Laurentian Green | Includes 4 to 7 / Laurentian Green
703500267
Unavailable
4
Console, Yellow | Includes 4 to 7 / Yellow
703500330
Unavailable
5
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
EMERGENCY SWITCH - Call your local BRP dealership | Includes 8 to 9 / Europe
710000367
Unavailable
9
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership | Europe
710000661
Unavailable
10
Hex. Flange Screw M6 X 16
210261650
Unavailable
11
Flat Washer
250200082
Unavailable
12
Tuflok Plastic Rivet
293150230
Unavailable
13
LH REAR LUGGAGE RACK - Call your local BRP dealership
705001525
Unavailable
14
RH REAR LUGGAGE RACK - Call your local BRP dealership
705001526
Unavailable
15
LH FRONT LUGGAGE RACK - Call your local BRP dealership
705001527
Unavailable
16
RH Front Luggage Rack
705001528
Unavailable
17
Hex. Screw M6 X 80
207168044
Unavailable
18
HEX. SCREW M6 X 50 - Call your local BRP dealership
207165044
Unavailable
19
Flat Washer
224061201
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
21
LH Handle
705000979
Unavailable
22
Spacer
705001243
Unavailable
23
SPACER - Call your local BRP dealership
705001244
Unavailable
24
RH Handle
705000980
Unavailable
25
Spacer
705001243
Unavailable
26
SPACER - Call your local BRP dealership
705001244
Unavailable
27
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
28
Handle Cap
705001242
Unavailable
29
Hex. Flange Screw M6 X 130
230663084
Unavailable
30
Hex. Flange Screw M6 X 95
207669584
Unavailable
31
Rubber Cover
570041600
Unavailable
32
Rear Support
705001684
Unavailable
33
U Reinforcement
705003647
Unavailable
34
Hex. Flange Screw M8 X 45
207684544
Unavailable
35
Loctite 243, 10 ml
293800060
Unavailable
36
Flat Washer 8 mm
234082410
Unavailable
37
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
38
front support
705000895
Unavailable
39
LH ANCHOR PLATE - Call your local BRP dealership
705000692
Unavailable
40
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
41
RH Anchor Plate
705002997
Unavailable
42
Hex. Flange Screw M8 X 45
207684544
Unavailable
43
Flat Washer 8 mm
234082410
Unavailable
44
Hex. Elastic Stop Nut M8
232581414
Unavailable
45
PLUG - Call your local BRP dealership
705001689
Unavailable
46
PLUG - Call your local BRP dealership
705001690
Unavailable
