01- Engine And Engine Support

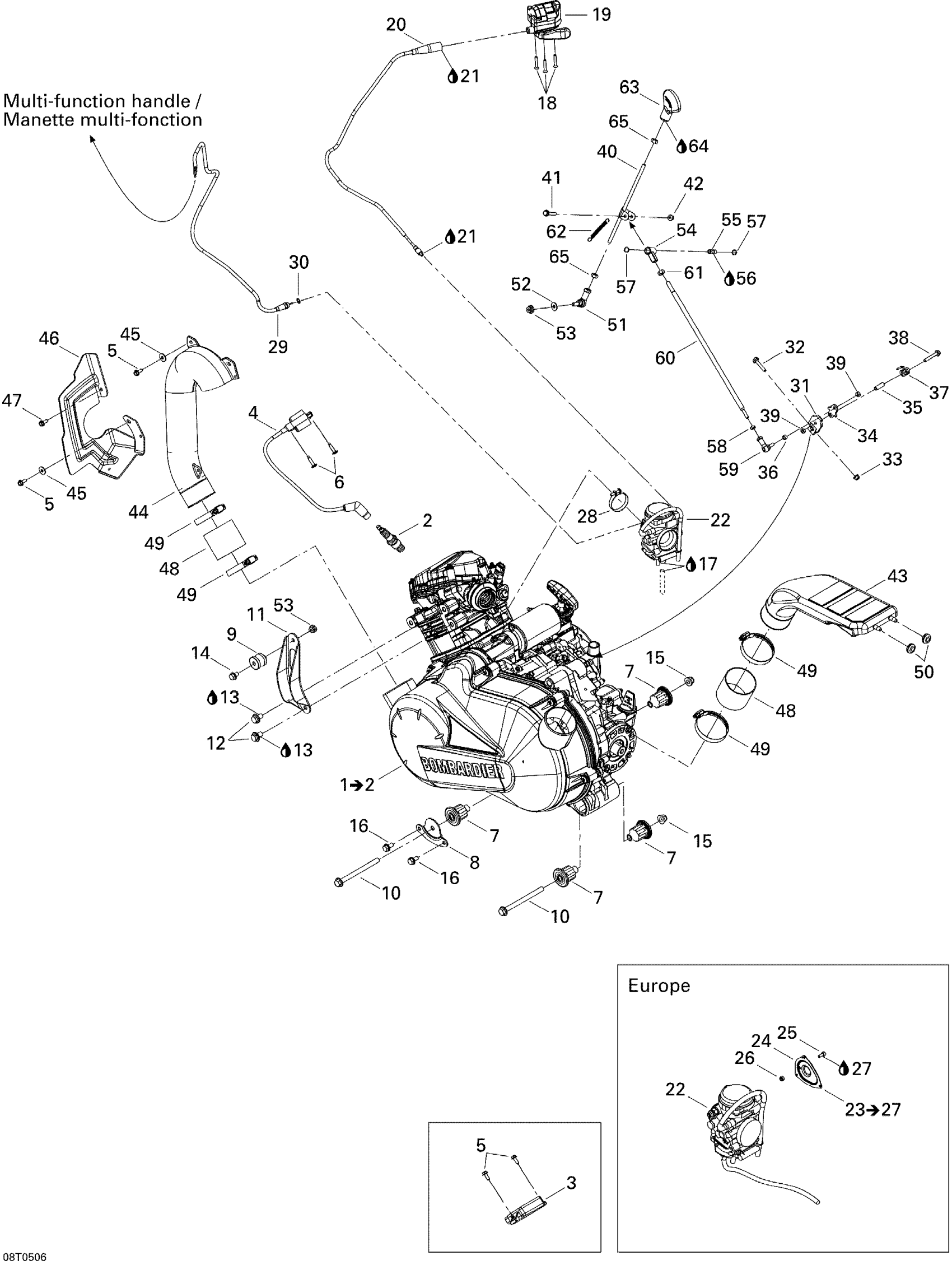

Can-Am Outlander MAX 400, 2005 01- Engine And Engine Support Diagram
#
1
Engine Rotax 4 Strokes | 400HO / Includes 1 to 2
707000376
Unavailable
2
Spark Plug, NGK DCP-R8E
715900637
Unavailable
3
AMPLIFIER BOX - Call your local BRP dealership | 400HO
420664285
Unavailable
4
IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58
420265358
Unavailable
5
Hex. Flange Screw M6 X 16
210261650
Unavailable
6
Hexagonal Head Screw
210262050
Unavailable
7
Anti-Vibration Mount
707000218
Unavailable
8
LH FRONT ENGINE BRACKET - Call your local BRP dealership
707000220
Unavailable
9
Rubber Isolator
707000949
Unavailable
10
Hex. Flange Screw M10 X 125
230602546
Unavailable
11
UPPER ENGINE BRACKET - Call your local BRP dealership
707000224
Unavailable
12
Hex. Flange Screw M10 X 25
207602544
Unavailable
13
Loctite 243, 10 ml
293800060
Unavailable
14
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
15
Hex. Flange Elastic Nut M10
233201436
Unavailable
16
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
17
Glue Tube, Loctite 454, 20 G
413708300
Unavailable
18
Socket Head Screw M5 X 25
205052588
Unavailable
19
Throttle Handle | 4X4
707000595
Unavailable
19
THROTTLE HANDLE - Call your local BRP dealership | 2X4
707000370
Unavailable
20
THROTTLE CABLE - Call your local BRP dealership
707000226
Unavailable
21
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
Unavailable
22
Carburator CE, Mikuni BSR33-67 | 400HO (Europe)
707000402
Unavailable
22
Carburator, Mikuni BSR33-49 | 400HO
707200190
Unavailable
23
Calibrated Cover Ass'y | 400HO (Europe) / Includes 23 to 27
707000406
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Socket Head Screw M4 X 10 | 400HO (Europe)
205041044
Unavailable
26
Elastic Stop Nut M4
232541414
Unavailable
27
Sealant Loctite 648
219703000
Unavailable
28
GEMI CLAMP - Call your local BRP dealership
293650164
Unavailable
29
CHOKE CABLE - Call your local BRP dealership
707000228
Unavailable
30
O-RING - Call your local BRP dealership
293300075
Unavailable
31
Lever
707000503
Unavailable
32
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Pivot Plate
707000507
Unavailable
35
Bushing
293900079
Unavailable
36
Bushing | DS 650 X
293900104
Unavailable
37
Spring
707000310
Unavailable
38
Hex. Flange Screw M6 X 40
207664044
Unavailable
39
Elastic Stop Nut M6
232561414
Unavailable
40
Lever Arm
707000786
Unavailable
41
Hex. Flange Screw M6 X 40
207664044
Unavailable
42
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
43
AIR OUTLET - Call your local BRP dealership
707000361
Unavailable
44
Air Intake
707000261
Unavailable
45
Flat Washer
250200082
Unavailable
46
CVT WATER DEFLECTOR - Call your local BRP dealership
707000697
Unavailable
47
Tuflock Phillips Plastic Screw
414745900
Unavailable
48
FLEXIBLE ADAPTOR - Call your local BRP dealership
707000154
Unavailable
49
Tridon Clamp
293650064
Unavailable
50
Grommet
709000582
Unavailable
51
RH Ball Joint
707001959
Unavailable
52
Flat Washer 8 mm
234081410
Unavailable
53
Hex. Elastic Stop Nut M8
232581414
Unavailable
54
PIVOT - Call your local BRP dealership
707000568
Unavailable
55
Bushing
293900075
Unavailable
56
Synthetic Grease, 400 G
293550010
Unavailable
57
O-RING - Call your local BRP dealership
414583300
Unavailable
58
LH HEX. NUT M6 - Call your local BRP dealership
232066414
Unavailable
59
LH BALL JOINT - Call your local BRP dealership
707000545
Unavailable
60
Threaded Rod
707000567
Unavailable
61
Hex. Nut M8
232081414
Unavailable
62
Spring
707000569
Unavailable
63
Lever Handle
707000284
Unavailable
64
Loctite 243, 10 ml
293800060
Unavailable
65
Hex. Nut M8
232081414
Unavailable
