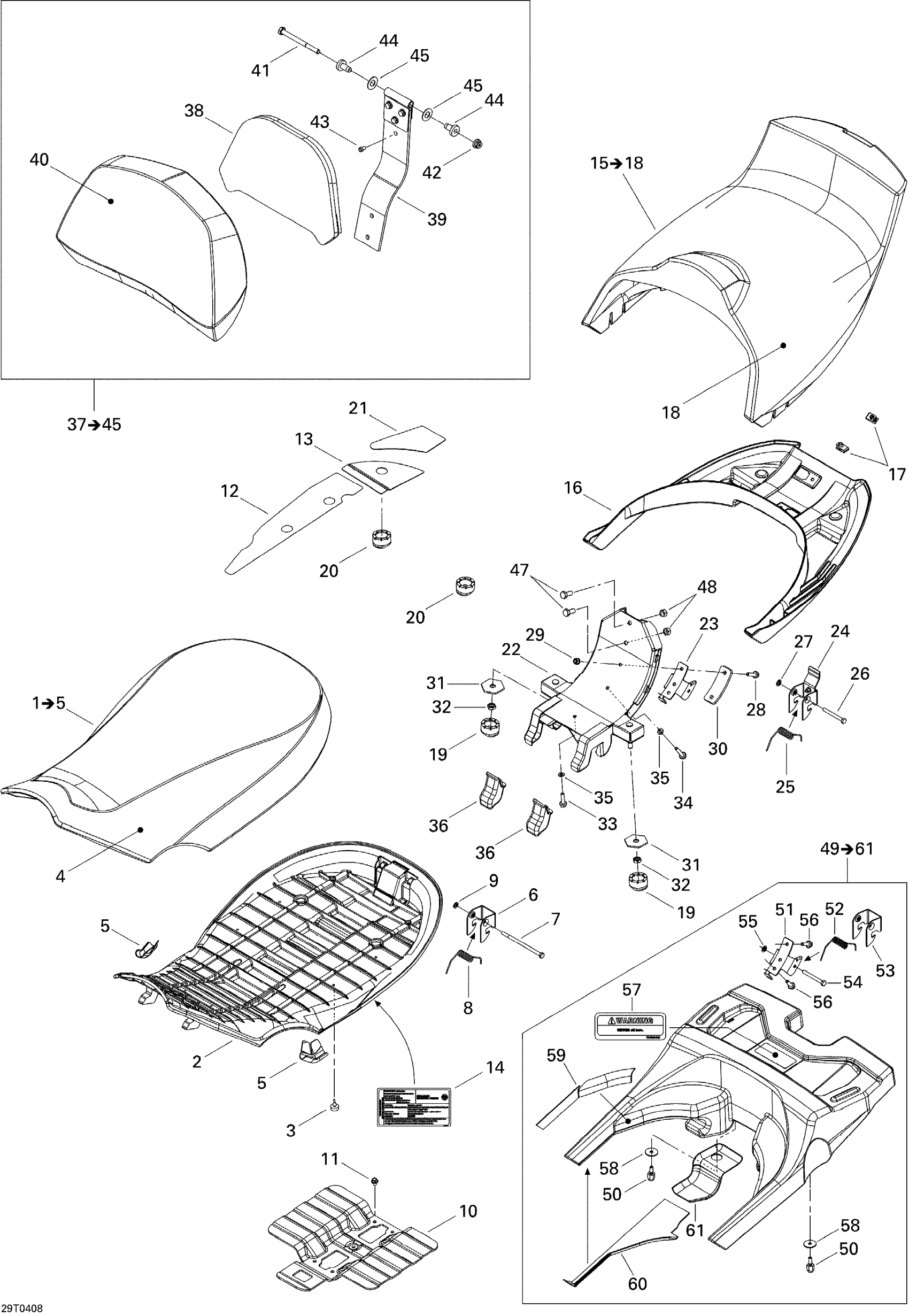

Can-Am Outlander MAX 400, 2004 09- Seat Diagram
#
1
Siege Assemblee*Seat Assembly | Includes 1 to 6
708001506
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Rubber Stopper
708000759
Unavailable
4
Seat Cover
708000327
Unavailable
5
Seat Corner
708000199
Unavailable
6
Latch, Black
708000144
Unavailable
7
HEX. SCREW M6 X 110 - Call your local BRP dealership
230061060
Unavailable
8
Spring
708000369
Unavailable
9
Push Nut
732610072
Unavailable
10
REINFORCEMENT SEAT - Call your local BRP dealership
708000817
Unavailable
11
Hex. Forming Screw M6 X 10
210261050
Unavailable
12
REFLECTING SHEET - Call your local BRP dealership
708000198
Unavailable
13
Reflecting Sheet
708000322
Unavailable
14
Emission Label | 400 H.O
704900661
Unavailable
15
Rear Seat Ass'y | Includes 15 to 18
708000264
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Panel Nut M6 X 1.0
250100198
Unavailable
18
Seat Cover
708000267
Unavailable
19
Bumper Rubber
708000760
Unavailable
20
Bumper Rubber
708000760
Unavailable
21
Reflecting Sheet
708000268
Unavailable
22
Seat Reinforcement
708000305
Unavailable
23
LOCK SUPPORT, BLACK - Call your local BRP dealership
708000309
Unavailable
24
Latch
708000398
Unavailable
25
Spring
708000369
Unavailable
26
Hex. Screw M6 X 55
207065544
Unavailable
27
Push Nut
732610072
Unavailable
28
Hex. Flange Screw M6 X 25
207662544
Unavailable
29
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
30
Plate
708000351
Unavailable
31
Adjuster Stopper
708000350
Unavailable
32
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
33
Hex. Flange Screw M6 X 25
207662544
Unavailable
34
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
35
Lock Washer M6, Black
234161471
Unavailable
36
Protector
708000343
Unavailable
37
Backrest Ass'y | Includes 37 to 45
708000269
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
Backrest Cover
708000297
Unavailable
41
Hex. Screw M8 X 95
207089544
Unavailable
42
Hex. Flange Elastic Nut M8
233281414
Unavailable
43
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Hardened Washer
706200281
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Hex. Flange Screw M8 X 25
207682544
Unavailable
48
Hex. Flange Elastic Nut M8
233281414
Unavailable
49
REMOVABLE LUGGAGE RACK KIT - Call your local BRP dealership | Includes 49 to 61
703000007
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
51
LOCK SUPPORT, BLACK - Call your local BRP dealership
708000309
Unavailable
52
Spring
708000369
Unavailable
53
Latch, Black
708000144
Unavailable
54
Hex. Screw M6 X 55
207065544
Unavailable
55
Push Nut
732610072
Unavailable
56
Hex. Flange Screw M6 X 20
207662044
Unavailable
57
WARNING DECAL NEVER SIT HERE - Call your local BRP dealership
704900446
Unavailable
58
Washer
224060251
Unavailable
59
REFLECTING SHEET - Call your local BRP dealership
705001452
Unavailable
60
REFLECTING SHEET - Call your local BRP dealership
705001453
Unavailable
61
REFLECTING SHEET - Call your local BRP dealership
705001454
Unavailable
