Description

Price

1

Frame, Black

705200710

Unavailable

2

LH Footrest

705200526

Unavailable

3

RH Footrest

705200529

Unavailable

4

Footrest Bushing

705200645

Unavailable

5

Battery Support

705200939

Unavailable

6

Hex. Flange Screw M8 X 50

207685044

Unavailable

7

Hex. Flange Nut M8

233081416

Unavailable

8

Flat Washer 8 mm

234082410

Unavailable

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Hex. Flange Screw M8 X 20

207682044

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

Unavailable

13

Trailer Hook, Black

705200839

Unavailable

14

DIAGONAL BRACE - Call your local BRP dealership

705202393

Unavailable

15

Rear Brace

705200813

Unavailable

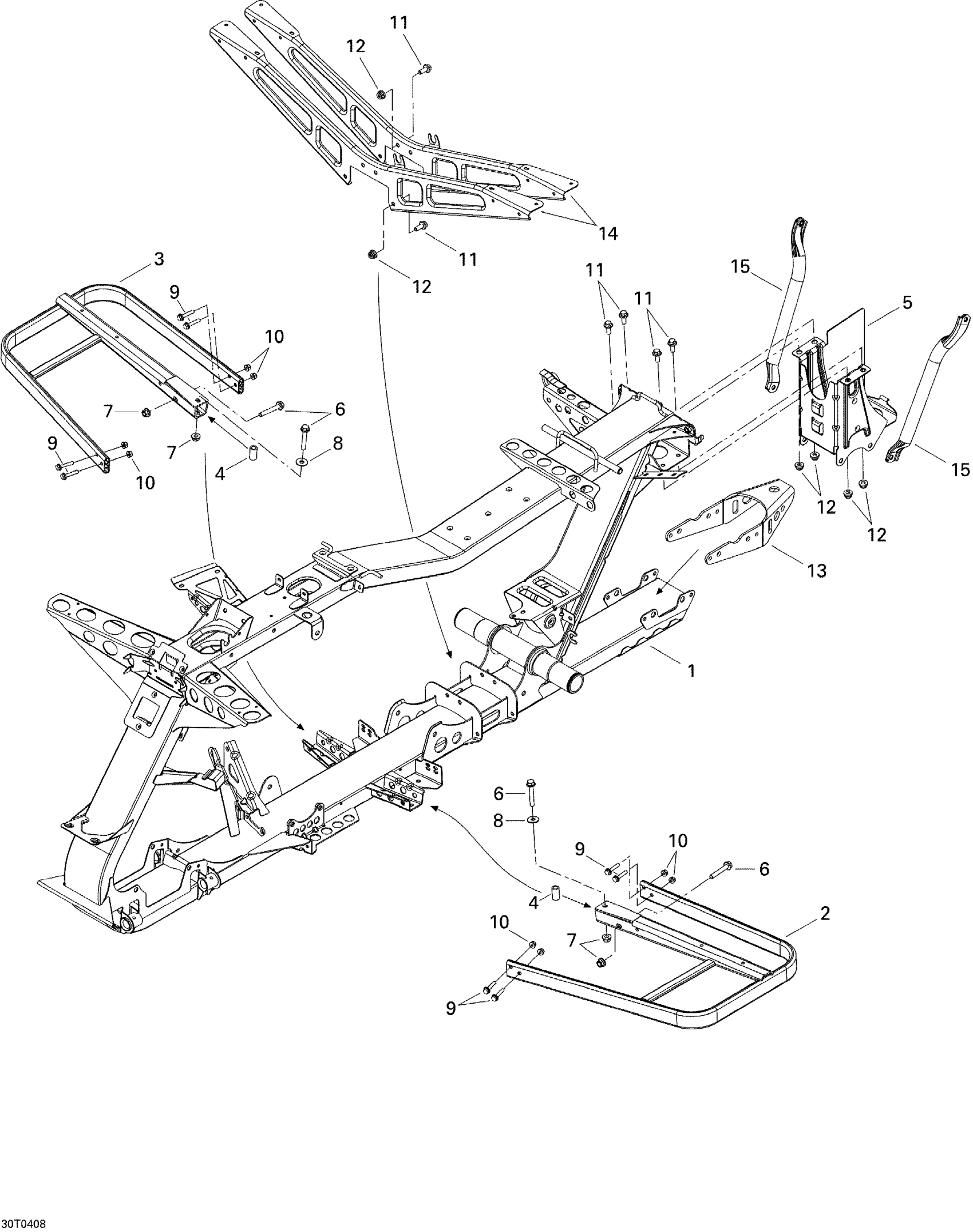

Can-Am Outlander MAX 400, 2004 09- Frame Diagram

Frame, Black

LH Footrest

RH Footrest

Footrest Bushing

Battery Support

Hex. Flange Screw M8 X 50

Hex. Flange Nut M8

Flat Washer 8 mm

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M8 X 20

Hex. Flange Elastic Nut M8

Trailer Hook, Black

DIAGONAL BRACE - Call your local BRP dealership

Rear Brace
