- Outlander MAX 400, 2004
09- Body (Front View)

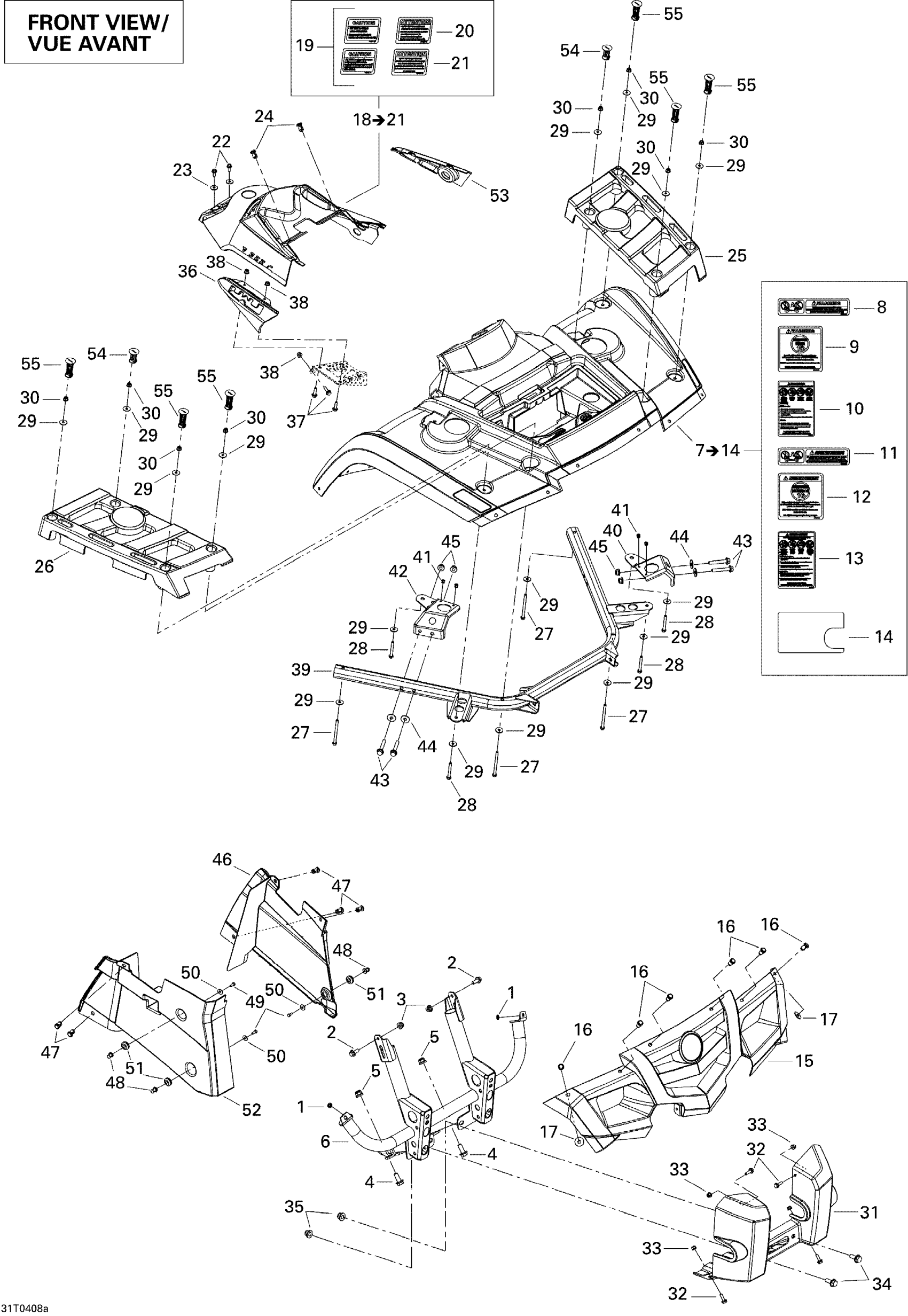

Can-Am Outlander MAX 400, 2004 09- Body (Front View) Diagram
#
1
Push Nut
732610072
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Hex. Flange Screw M10 X 30
207603044
Unavailable
5
Hex. Flange Elastic Nut M10
233201414
Unavailable
6
BUMPER F KIT - Call your local BRP dealership
715900097
Unavailable
7
Red Front Fender Kit | Includes 16 to 22, Viper Red
715002329
Unavailable
7
Front Fender Kit, Green | Includes 7 to 14
703500416
Unavailable
7
Yellow Front Fender Kit | Includes 16 to 22, Yellow
715002330
Unavailable
8
Warning Decal, Front Load | English Version
704900453
Unavailable
9
Warning Decal, Under 16 Years Old | English Version
704901753
Unavailable
10
Warning Decal, Death And Injuries | English Version
704901749
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
WARNING DECAL, UNDER 16 YEARS OLD - Call your local BRP dealership | French Version
704900436
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Front Fascia, Viper Red | Viper Red
705000432
Unavailable
15
FRONT FASCIA, LAURENTIAN GREEN - Call your local BRP dealership | Laurentian Green
705000734
Unavailable
15
Front Fascia, Yellow | Yellow
705000851
Unavailable
16
Tuflok Plastic Rivet
293150230
Unavailable
17
Flat Washer 8 mm
234082410
Unavailable
18
Console, Viper Red | Includes 4 to 7 / Viper Red
703500266
Unavailable
18
Console, Laurentian Green | Includes 4 to 7 / Laurentian Green
703500267
Unavailable
18
Console, Yellow | Includes 4 to 7 / Yellow
703500330
Unavailable
19
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Hex. Flange Screw M6 X 16
210261650
Unavailable
23
Flat Washer
250200082
Unavailable
24
Tuflok Plastic Rivet
293150230
Unavailable
25
LH FRONT LUGGAGE RACK - Call your local BRP dealership
705000436
Unavailable
26
RH FRONT LUGGAGE RACK - Call your local BRP dealership
705000437
Unavailable
27
Hex. Screw M6 X 80
207168044
Unavailable
28
HEX. SCREW M6 X 50 - Call your local BRP dealership
207165044
Unavailable
29
Flat Washer
224061201
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
32
Hex. Flange Screw M6 X 20
207662044
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Hex. Flange Screw M10 X 25
207602544
Unavailable
35
Hex. Flange Elastic Nut M10
233201414
Unavailable
36
LEVER INDICATOR - Call your local BRP dealership
705001529
Unavailable
37
Hex. Flange Screw M6 X 20
207662044
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
front support
705000895
Unavailable
40
LH ANCHOR PLATE - Call your local BRP dealership
705000692
Unavailable
41
Pop Rivet 3/16" | DS 650 X
390402000
Unavailable
42
RH Anchor Plate
705002997
Unavailable
43
Hex. Flange Screw M8 X 45
207684544
Unavailable
44
Flat Washer 8 mm
234082410
Unavailable
45
Hex. Elastic Stop Nut M8
232581414
Unavailable
46
LH Inner Fender
705000652
Unavailable
47
Tuflok Plastic Rivet
293150230
Unavailable
48
Knob
517303439
Unavailable
49
Hex. Screw M5 X 12
207151244
Unavailable
50
Washer | DS 650 X
391301600
Unavailable
51
Grommet
709000582
Unavailable
52
INNER FENDER - Call your local BRP dealership
705002640
Unavailable
53
Valve Support
705000654
Unavailable
54
PROTECTION PLUG - Call your local BRP dealership
705000655
Unavailable
55
Protection Plug
705000656
Unavailable
