- Outlander MAX 400, 2004
01- Engine Lubrication

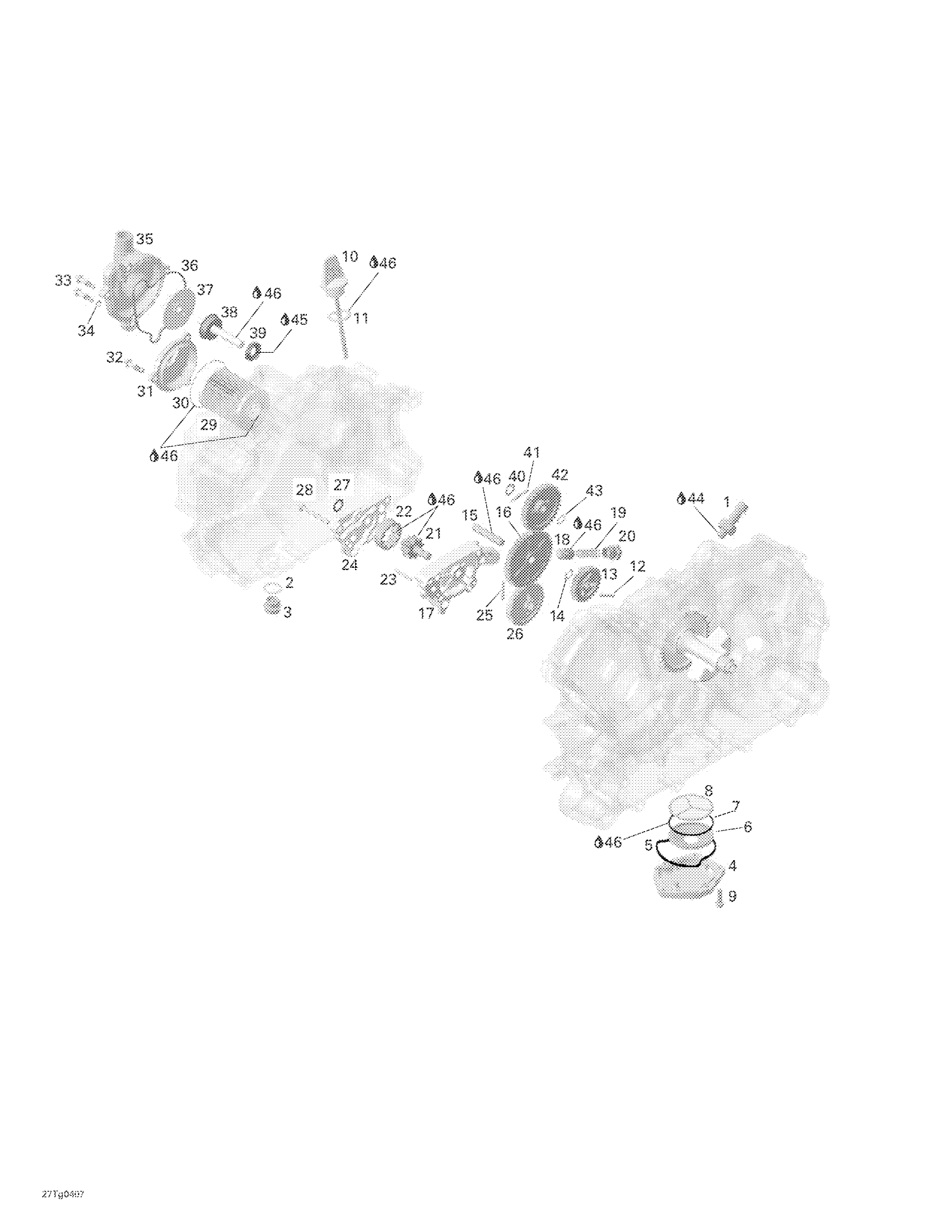

Can-Am Outlander MAX 400, 2004 01- Engine Lubrication Diagram
#
1
Inter.Press.Hui*Switch-Oil Pressure
420856539
Unavailable
2
Crush Washer
420552280
Unavailable
3
Drain Plug M18 X 1.5
420840278
Unavailable
4
OIL SIEVE COVER - Call your local BRP dealership
420211940
Unavailable
5
Rubber Ring
420650560
Unavailable
6
Oil Collector
420256650
Unavailable
7
O-Ring
420650697
Unavailable
8
Oil Sieve
420256576
Unavailable
9
Torx Flange Screw M6 X 20
420440207
Unavailable
10
Oil Dipstick
420256800
Unavailable
11
O-Ring
420631640
Unavailable
12
Needle Pin
420232431
Unavailable
13
Idle Gear, 25 Teeth
420635191
Unavailable
14
Snap Ring
420245330
Unavailable
15
Location Pin 10 M6x50
420229302
Unavailable
16
Idle Gear, 42 Teeth
420635660
Unavailable
17
Oil Pump Ass’y | Includes 17 to 24
420296507
Unavailable
17
Oil Pump Housing
420610221
Unavailable
18
Piston Valve
420256922
Unavailable
19
Compression Spring
420238220
Unavailable
20
Plug Screw M16
420641167
Unavailable
21
Oil Pump Shaft
420220814
Unavailable
22
Oil Pump Outer Rotor
420256935
Unavailable
23
Needle Pin
420232431
Unavailable
24
Oil Pump Cover
420610570
Unavailable
25
Needle Pin
420232431
Unavailable
26
Oil Pump Gear, 32 Teeth
420635220
Unavailable
27
O-RING - Call your local BRP dealership
293300037
Unavailable
28
Torx Flange Screw M6 X 45
420440324
Unavailable
29
Oil Filter
420256188
Unavailable
30
O-Ring
420230923
Unavailable
31
Oil Filter cover
420612135
Unavailable
32
Torx Flange Screw M6 X 25
420440234
Unavailable
33
Torx Flange Screw M6 X 25
420440234
Unavailable
34
Seal Washer
420230415
Unavailable
35
Water Pump Housing
420222680
Unavailable
36
Gasket
420630270
Unavailable
37
Water Impeller
420222505
Unavailable
38
Waterpump Shaft Ass'y
420620171
Unavailable
39
Oil Seal
420650315
Unavailable
40
Thrust Washer
420827590
Unavailable
41
Needle Pin
420232431
Unavailable
42
Idle Gear, 34 Teeth
420635620
Unavailable
43
Snap Ring
420245330
Unavailable
44
Loctite 243, 10 ml
293800060
Unavailable
45
Grease, Super Lube
293550030
Unavailable
46
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
