- Outlander MAX 1000EFI LTD, 2013
08- Rear Suspension

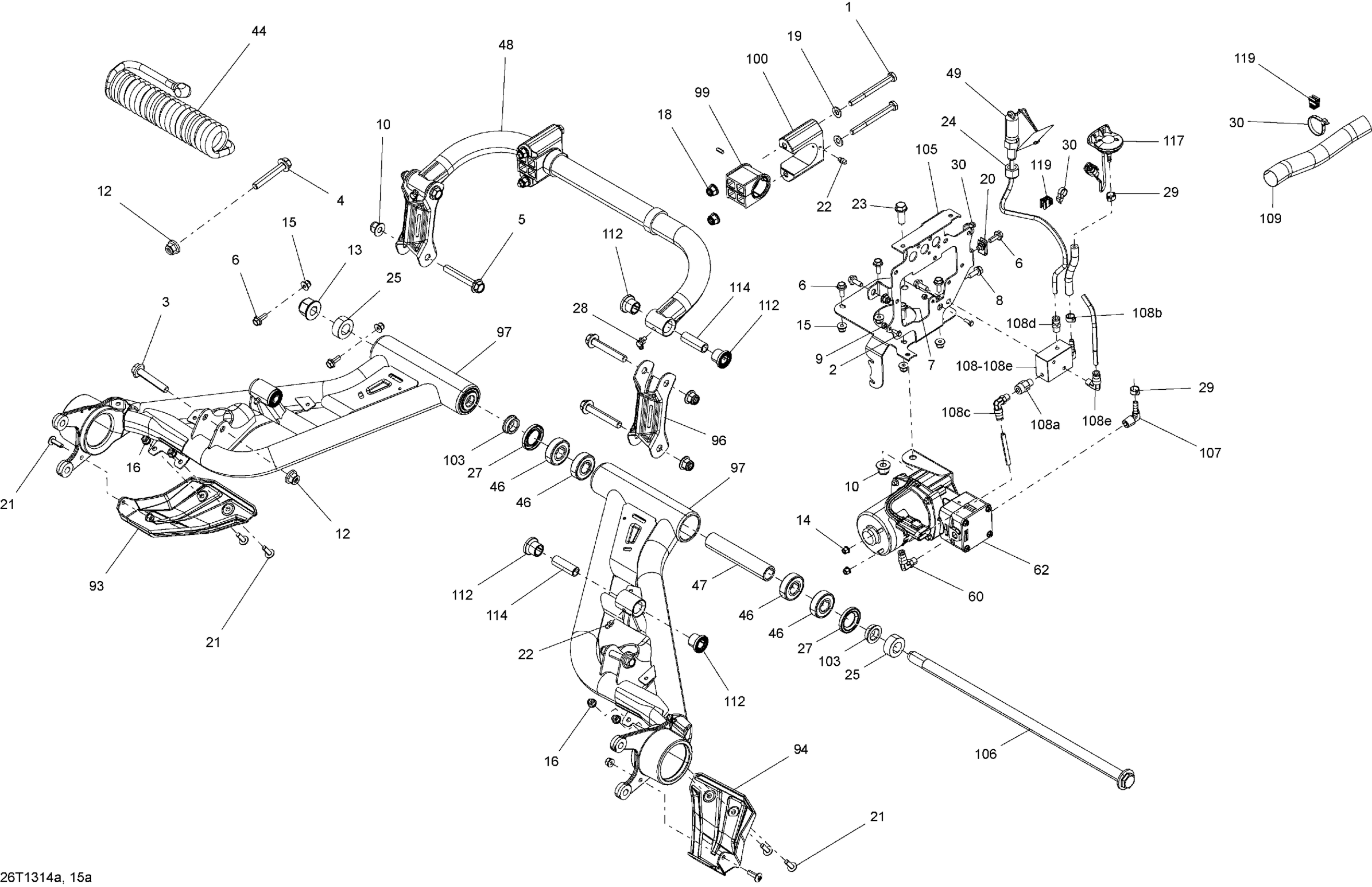

Can-Am Outlander MAX 1000EFI LTD, 2013 08- Rear Suspension Diagram
#
1
Hex. Screw M8 X 85
250001035
Unavailable
2
HEX. SCREW M4 X 12 - Call your local BRP dealership
207141244
Unavailable
3
Hex. Flange Screw M10 X 55
207605546
Unavailable
4
Hex. Flange Screw M10 X 6
207606046
Unavailable
5
Hex. Flange Screw M10 X 65
207606536
Unavailable
6
Hex. Flange Screw M6 X 16
207661644
Unavailable
7
Hex. Flange Screw M6 X 20
207662044
Unavailable
8
Hex. Flange Screw M6 X 16
210261650
Unavailable
9
Elastic Stop Nut M4
232541414
Unavailable
10
Hex. Flange Elastic Nut M10
233201414
Unavailable
12
Hex. Flange Elastic Nut M10
233201436
Unavailable
13
Hex. Flange Elastic Nut M16
233211466
Unavailable
14
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Hex. Flange Elastic Nut M6
233261494
Unavailable
18
Hex. Flange Elastic Nut M8
233281434
Unavailable
19
Flat Washer M8
234081430
Unavailable
20
Panel Nut M6 X 1.0
250100198
Unavailable
21
Torx Screw M6 X 20
250000722
Unavailable
22
Grease Fitting
250000315
Unavailable
23
Hex. Flange Screw M10 X 25
250001054
Unavailable
24
Hex. Nut With Nylon 1/2" X 20
250100124
Unavailable
25
Flat Washer M17
250200112
Unavailable
27
Seal
293200144
Unavailable
28
Grease Fitting 90°
293550056
Unavailable
29
Clamp Oetiker
293650207
Unavailable
30
Tie Wrap 368 mm
293750008
Unavailable
44
Auxiliary Hose
706000808
Unavailable
46
Ball Bearing
293350145
Unavailable
47
Spacer
706002259
Unavailable
48
Swaybar
706000988
Unavailable
49
INFLATER ASS'Y - Call your local BRP dealership
706001339
Unavailable
60
Elbow 90°
706000928
Unavailable
62
Compressor Ass'y
706000964
Unavailable
93
LH PROTECTOR - Call your local BRP dealership
706001009
Unavailable
94
RH PROTECTOR - Call your local BRP dealership
706001010
Unavailable
96
Sway Bar Linkage
706001020
Unavailable
97
Black LH Swing Arm
706001860
Unavailable
97
Black RH Swing Arm
706001861
Unavailable
99
Stabilizer Bar Bushing
706004640
Unavailable
100
Bushing Holder
706001099
Unavailable
103
Spacer
706001282
Unavailable
105
Compressor Bracket
706001351
Unavailable
106
Axial Pivot M16
706001664
Unavailable
107
Elbow 90°
706001405
Unavailable
108
HOSE ASS'Y - Call your local BRP dealership | Includes 108 to 108e
706001388
Unavailable
108a
Check Valve
706000860
Unavailable
108b
Clamp Oetiker
293650207
Unavailable
108c
Elbow 90°
706000928
Unavailable
108d
Connector
706000869
Unavailable
108e
Elbow 90°
706000872
Unavailable
109
Protector Tube
504153074
Unavailable
112
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
114
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
117
Air Suspension Sensor
710001825
Unavailable
119
Not Available As Spare Part - Friction Washer
Unavailable
