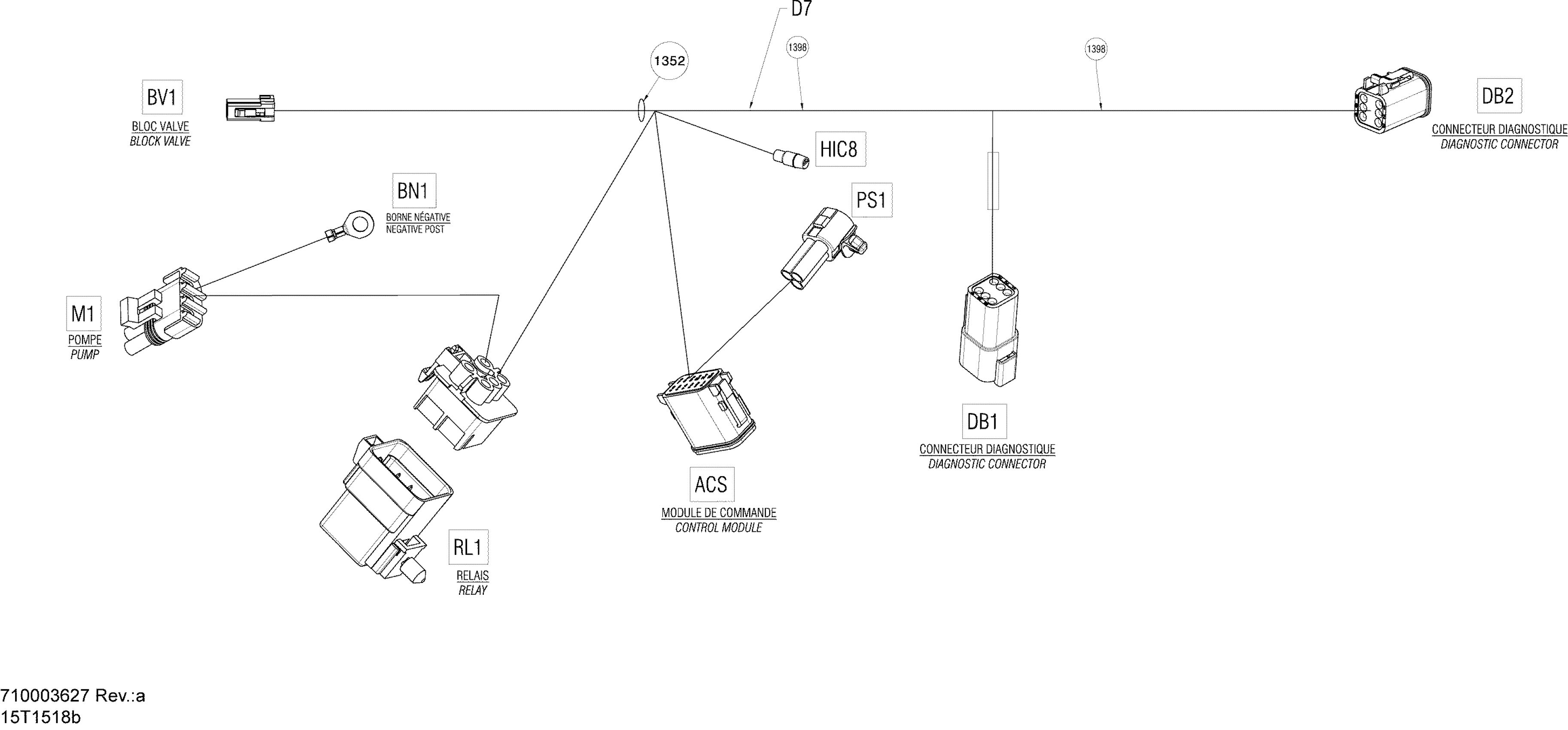

Can-Am Outlander MAX 1000 EFI LTD, 2015 Electrical Harness Compressor_15T1518b Diagram

#

Description
Price

1

Compressor Harness

710005160

$161.51

ACS

CONNECTOR_FEMALE 12 CAVITIES - Call your local BRP dealership

710003193

$19.20

ACS

MALE WEDGE, 12 CIRCUITS - Call your local BRP dealership

710003192

$4.86

ACS

Sealing Cap

293000052

$2.55

ACS

Female Terminal

278001665

$3.73

ACS

Female Terminal

278001665

$3.73

BN1

Open Barrel

278000992

$1.79

BV1

Female Housing, 2 Circuits

515175658

$15.35

BV1

Female Terminal

515175231

$4.12

D7

Diode

409012700

$10.83

DB1

Male Terminal Housing, 6 Circuits

710001539

$15.57

DB1

Female Lock, 6 Circuits

278000735

$3.02

DB1

Male Terminal

710001348

$11.14

DB2

Housing, 6 Circuits

278002896

$14.02

DB2

Male Wedge, 6 Circuits

515175678

$5.11

HIC8

Insulated Sheath

278001008

$3.20

HIC8

Male Terminal

278000230

$3.48

M1

Male Housing, 3 Circuits

278000273

$7.59

M1

Wire Seal

278000216

$2.55

M1

Wire Seal

278000218

$3.48

M1

Female Terminal

409007300

$0.36

M1

Wire Seal

278000216

$2.55

M1

Wire Seal

278000218

$3.48

PS1

Connector

710000722

$10.14

PS1

Wire Seal

710000402

$4.42

PS1

Male Terminal

409011300

$5.78

RL1

CLIP - Call your local BRP dealership

710003001

Unavailable

RL1

CONNECTOR_FEMALE 5 CAVITIES - Call your local BRP dealership

710002920

Unavailable

RL1

Lock

710002921

Unavailable

RL1

RELAY - Call your local BRP dealership

710002996

$44.58

RL1

Wire Seal

278001065

$6.03

RL1

TERMINAL - Call your local BRP dealership

710003191

Unavailable

1352

Dart Tie Rap 200MM

710003168

$5.72

1398

Protector Tube

415129879

Unavailable
