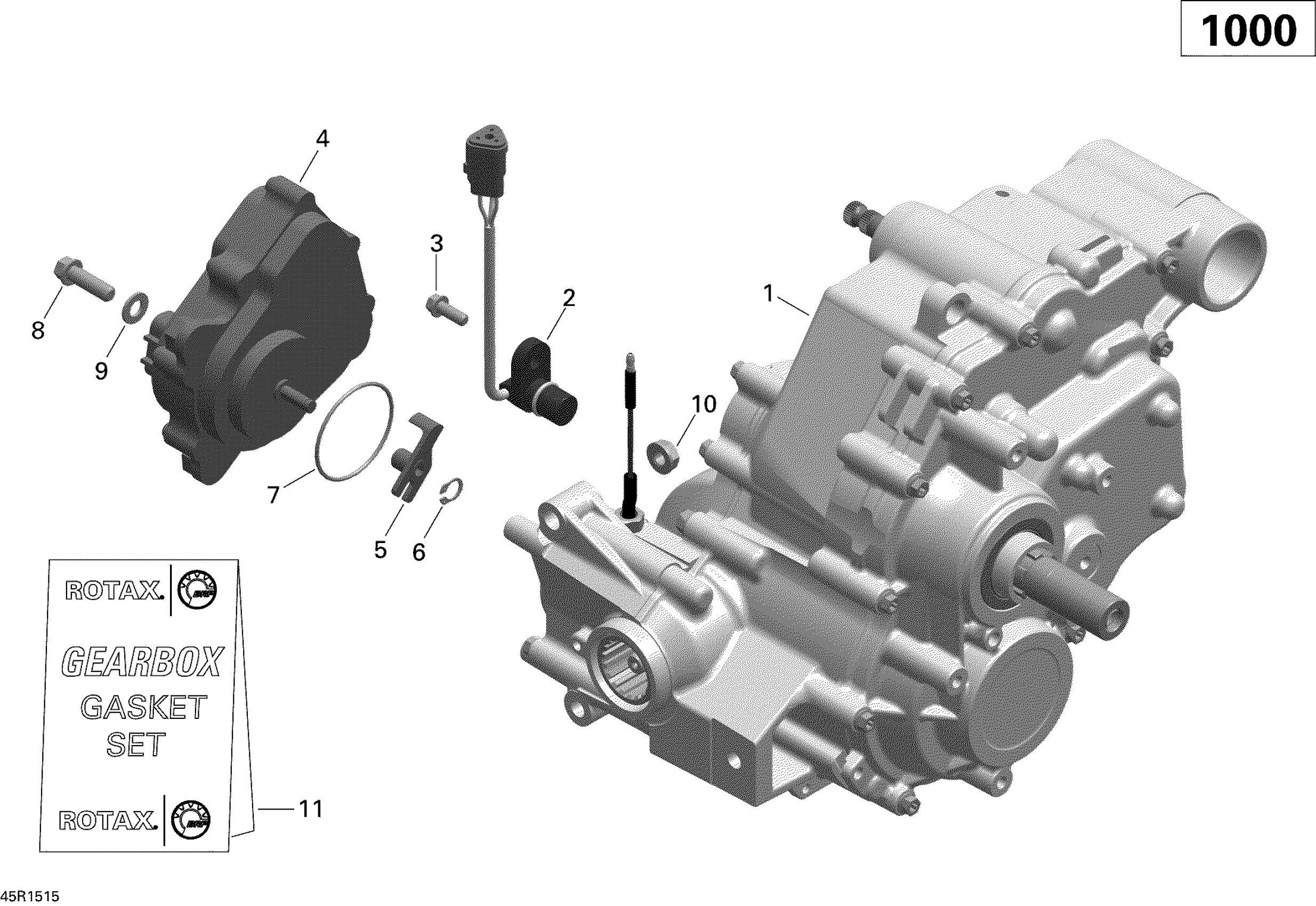

Can-Am Outlander MAX 1000 EFI, 2015 05- Gear Box Assy and 4X4 Actuator_Except T3 Package Diagram

#

Description

Price

1

Gear Box

420686714

Unavailable

2

Speed Sensor

420265723

Unavailable

3

Torx Flange Screw M6 X 16

420641048

Unavailable

4

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

Unavailable

5

Shifting Fork

415129175

Unavailable

6

Circlip | 4X4

293370042

Unavailable

7

O-Ring

293300117

Unavailable

8

Torx Flange Screw M8 X 25

420440372

Unavailable

9

Flat Washer 8.4 mm

420250315

Unavailable

10

Hex. Nut M8

420842619

Unavailable

11

Gasket Set, Gearbox

420684134

Unavailable
