- Outlander L MAX 500 EFI, 2015
01- Gear Box Output Shaft _71R1502

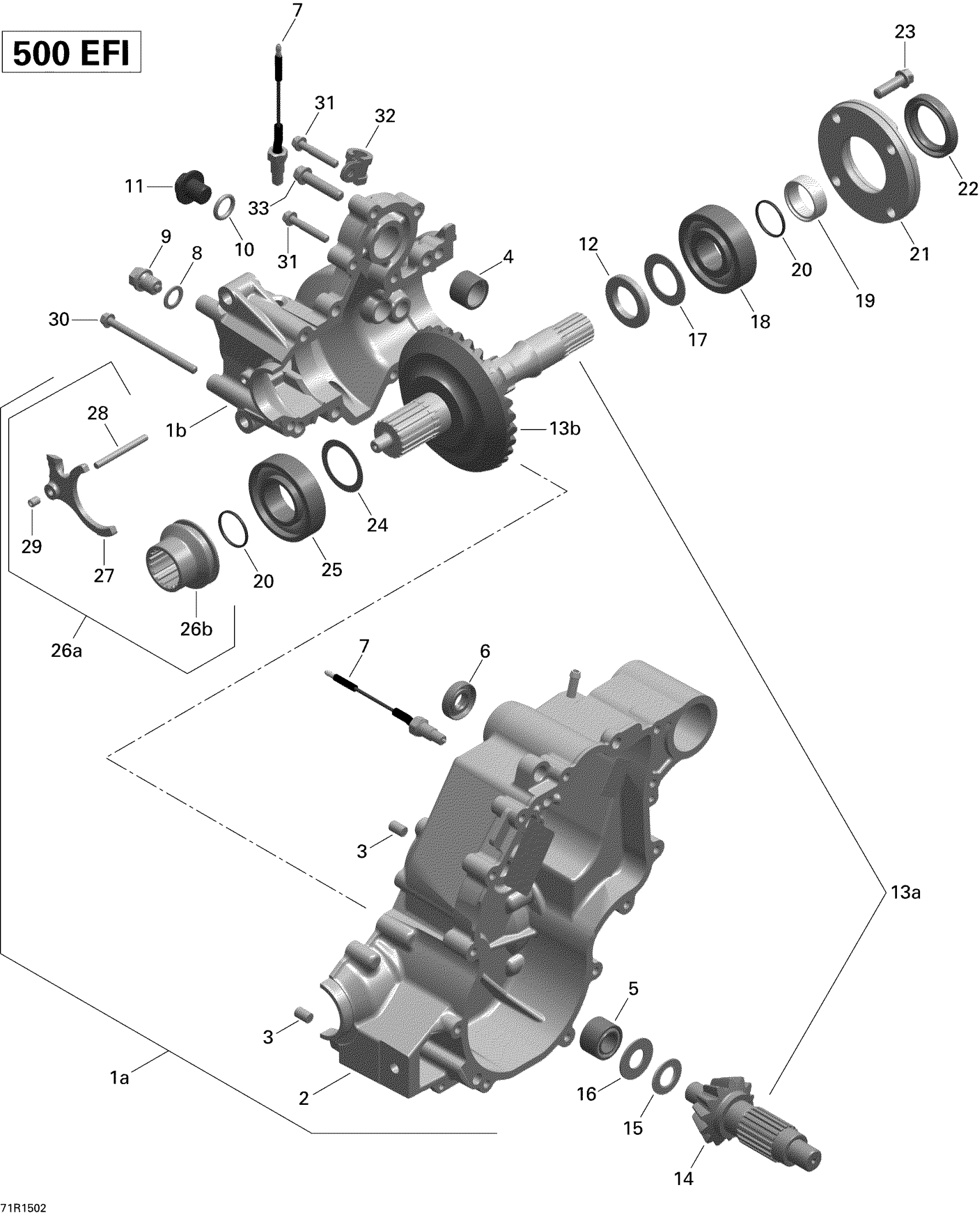

Can-Am Outlander L MAX 500 EFI, 2015 01- Gear Box Output Shaft _71R1502 Diagram
#
1a
Gear Housing Ass'y | Includes 1a to 7
420686205
Unavailable
1b
Not Available As Spare Part - Friction Washer
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Center Pin 8 X 12
420632010
Unavailable
4
Needle Bushing
420832240
Unavailable
5
Needle Bushing
420232085
Unavailable
6
Oil Seal
420250450
Unavailable
7
3 Position Switch
420640192
Unavailable
8
Copper Washer
420250640
Unavailable
9
Magnetic Drain Plug M12
420241787
Unavailable
10
O-Ring
420650350
Unavailable
11
Plug Screw M14 X 1.5
420241662
Unavailable
12
Distance Ring
420247772
Unavailable
13a
Drive Ass'y | Includes 13a to 14
420635557
Unavailable
13b
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Axial Needle Bearing
420632300
Unavailable
16
Thrust Washer Set, MAG Side
420281306
Unavailable
17
Washer Thrust Set
420281300
Unavailable
18
Ball Bearing
420932822
Unavailable
19
Distance Ring
420247125
Unavailable
20
O-Ring
420631612
Unavailable
21
Bearing Cover
420611444
Unavailable
22
Oil Seal
420950089
Unavailable
23
Torx Flange Screw M8 X 25
420440372
Unavailable
24
Shim 0.5
420944584
Unavailable
25
Ball Bearing
420932580
Unavailable
26a
Shifting Sleeve Kit | Includes 26a to 29
420257676
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
SET SCREW M6 X 8 - Call your local BRP dealership
420841771
Unavailable
30
Torx Flange Screw M6 X 85
420641228
Unavailable
31
Torx Flange Screw M6 X 35
420440274
Unavailable
32
Cable Clamp
420251692
Unavailable
33
Torx Flange Screw M8 X 35
420641188
Unavailable
