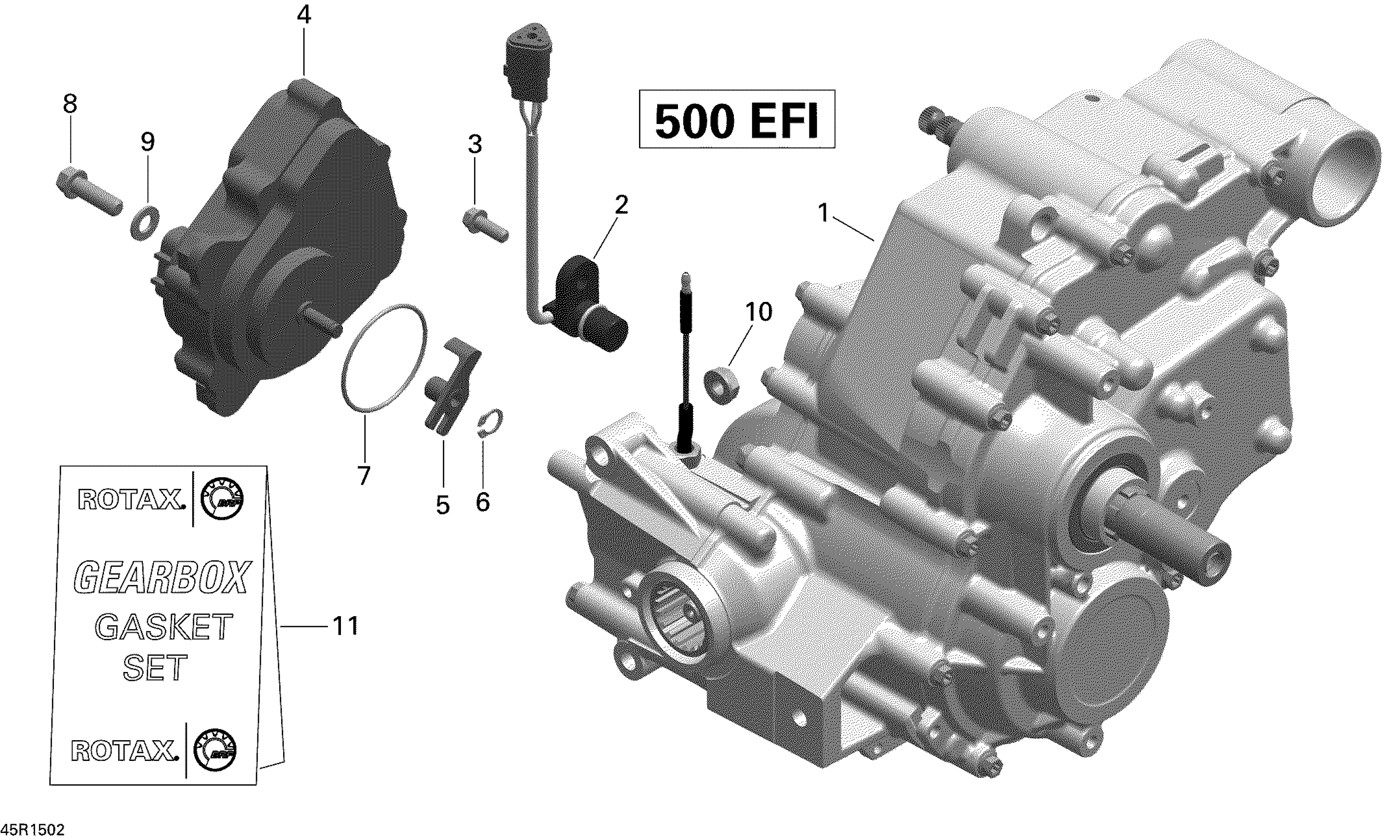

Can-Am Outlander L MAX 500 EFI, 2015 Gear Box Assy And 4X4 Actuator _45R1502 Diagram

#

Description
Price

1

Gear Box

420686612

$2,089.99

2

Camshft Position Sensor Ass'y

420265727

$109.99

3

Torx Flange Screw M6 X 16

420641048

$2.96

4

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$284.99

5

Shifting Fork

415129175

$16.49

6

Circlip | 4X4

293370042

$3.17

7

O-Ring

293300117

$4.44

8

Torx Flange Screw M8 X 25

420440372

$4.12

9

Flat Washer 8.4 mm

420250315

$1.15

10

Hex. Nut M8

420842616

$5.29

11

Gasket Set, Gearbox

420684134

$68.99
