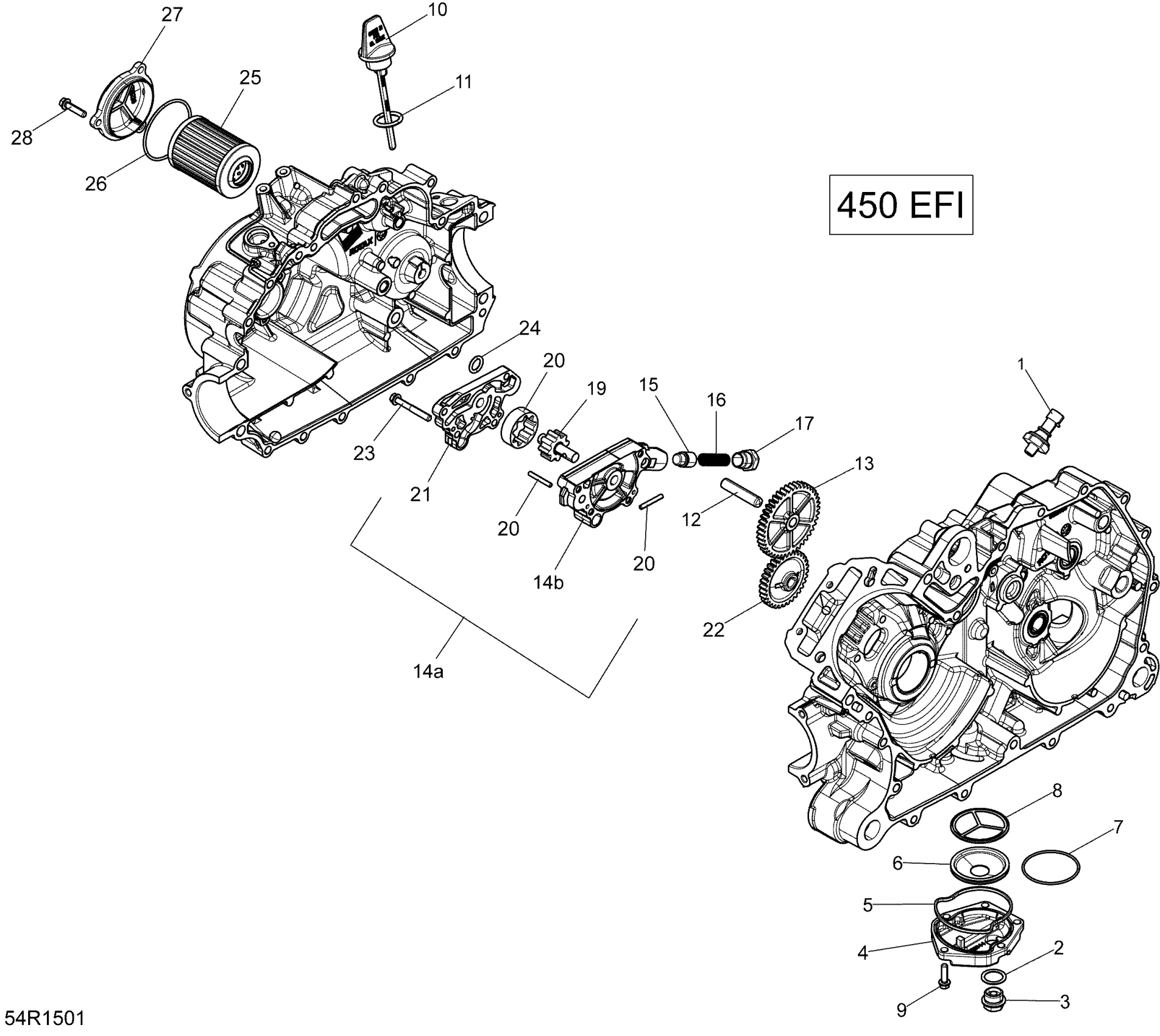

Can-Am Outlander L MAX 450 EFI, 2015 Engine Lubrication _54R1501 Diagram

#

Description
Price

1

Oil Pressure Switch

420256915

$40.99

2

Crush Washer

420552280

$3.70

3

Drain Plug M18 X 1.5

420840278

$23.99

4

Oil Sieve Cover

420211944

$54.99

5

Rubber Ring

420650560

$16.86

6

Oil Collector

420256650

$50.99

7

O-Ring

420650697

$11.05

8

Oil Sieve

420256576

$19.49

9

Torx Flange Screw M6 X 20

420440207

$3.06

10

Oil Dipstick

420256800

$17.05

11

O-Ring

420631640

$2.11

12

Location Pin 10 M6x50

420229302

$3.17

13

Idle Gear, 42 Teeth

420635660

$20.49

14a

Oil Pump Ass’y | Includes 17 to 24

420296507

$284.99

14b

Oil Pump Housing

420610221

$96.49

15

Piston Valve

420256922

$12.70

16

Compression Spring

420238220

$8.09

17

Plug Screw M16

420641167

$19.49

18

Oil Pump Shaft

420220814

$132.49

19

Oil Pump Outer Rotor

420256935

$69.99

20

Needle Pin

420232431

$4.39

21

Oil Pump Cover

420610570

$71.99

22

Oil Pump Gear, 32 Teeth

420635220

$20.99

23

Torx Flange Screw M6 X 45

420440324

$0.98

24

O-ring

420250290

$8.85

25

Oil Filter

420256188

$13.77

26

O-Ring

420230923

$3.17

27

Oil Filter cover

420612135

$11.63

28

Torx Flange Screw M6 X 25

420440234

$3.06
