- Outlander L 500 EFI, 2015
09- Body And Accessories _31T1503

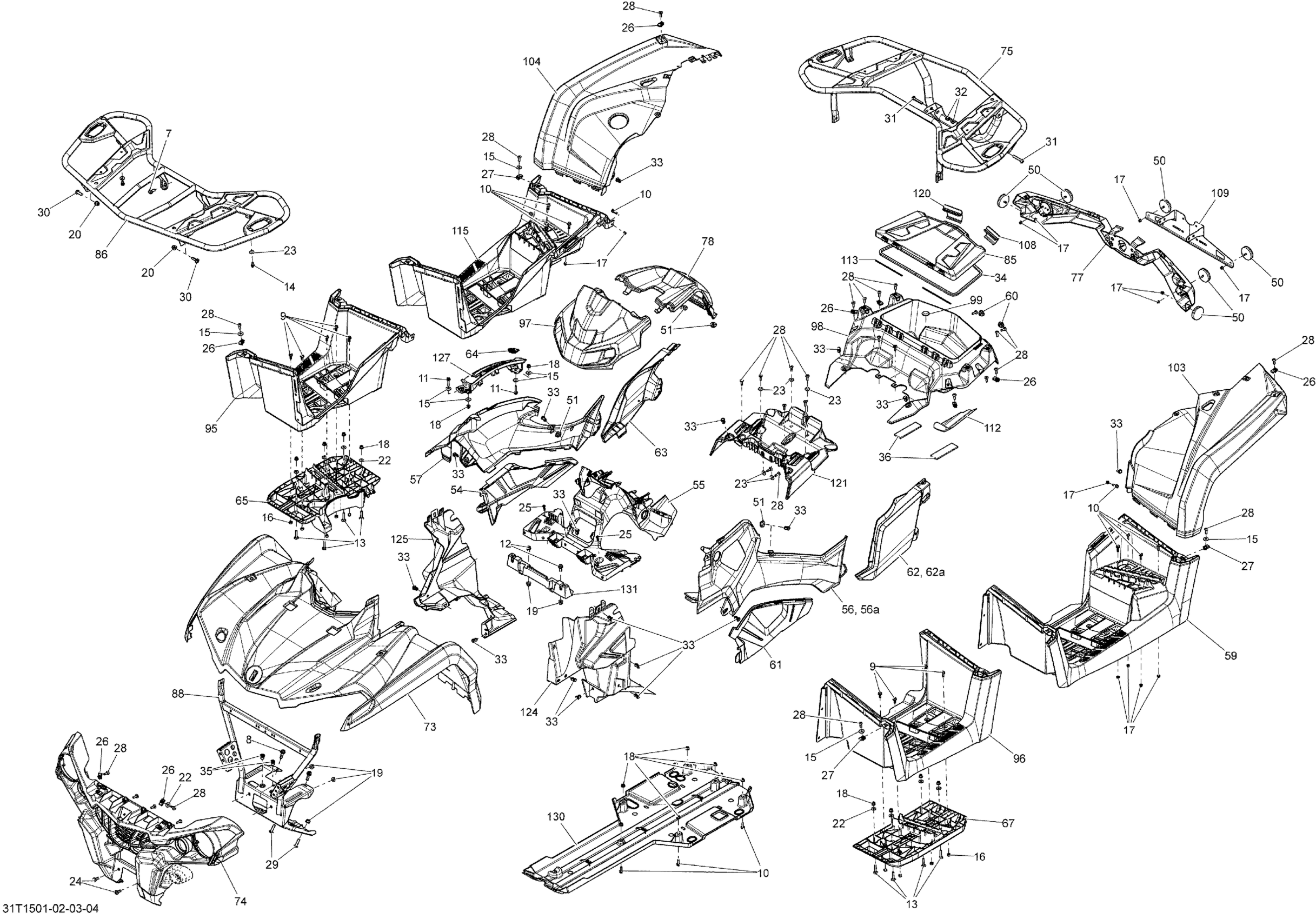

Can-Am Outlander L 500 EFI, 2015 09- Body And Accessories _31T1503 Diagram
#
7
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
8
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
9
Hex. Flange Screw M6 X 16
207661654
Unavailable
10
Hex. Flange Screw M6 X 20
207662054
Unavailable
11
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
12
Hex. Flange Screw M8 X 20
207682044
Unavailable
13
Carriage Bolt M6 X 35
207763554
Unavailable
14
Hex. Flange Screw M6 X 12
210261250
Unavailable
15
Flat Washer
224061201
Unavailable
16
Square Nut M6
232862412
Unavailable
17
Flange Elastic Nut M5
233251434
Unavailable
18
Flange Elastic Nut M6
233261434
Unavailable
19
Hex. Flange Elastic Nut M8
233281434
Unavailable
20
Elastic Flange Nut M8
233281464
Unavailable
22
Flat Washer 6 mm
234062410
Unavailable
23
Stainless Steel Flat Washer
234062670
Unavailable
24
Hex. Screw M8 X 20
236282084
Unavailable
25
Hex. Flange Screw K50 X 20
241152060
Unavailable
26
Panel Nut M6 X 1.0
250100198
Unavailable
28
Torx Screw M6 X 20
250000722
Unavailable
29
Hex Torx Truss M8 X30
250000745
Unavailable
30
Torx Screw M8 X 1.25 X 25, Scotch Grip
250000752
Unavailable
31
Torx Truss Screw M8 X 50
250000761
Unavailable
32
Elastic Flange Nut M8
250100131
Unavailable
33
Tuflok Plastic Rivet
293150230
Unavailable
34
Was 715900411 Neoprene Seal | Outlander MAX
219704452
Unavailable
35
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
36
Rubber Pad
293830163
Unavailable
50
Red Reflector
705011221
Unavailable
51
Grommet
705003264
Unavailable
54
Engine Cover
705003444
Unavailable
55
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
55
Dash Support Kit
715001552
Unavailable
56
Yellow, LH Lateral Panel | Yellow
705003446
Unavailable
56
Viper Red, LH Lateral Pannel | Viper Red
705005237
Unavailable
56
PANEL_BODY LH B-005 - Call your local BRP dealership | Camo
705005238
Unavailable
56
Quarry Gray LH Lateral Panel | Model-Gray
705007530
Unavailable
56a
Not Available As Spare Parts
XXX
Unavailable
57
PANEL_BODY RH B-005 - Call your local BRP dealership | Camo
705009118
Unavailable
57
PANEL_BODY RH B-365 - Call your local BRP dealership | Model-Gray
705009116
Unavailable
57
Viper Red, RH Lateral Panel | Viper Red
705009115
Unavailable
57
Yellow, RH Lateral Panel | Yellow
705009019
Unavailable
59
Not Available As Spare Parts
XXX
Unavailable
60
Stopper Rubber
705014429
Unavailable
61
Deflector_Body Panel Kit
715007008
Unavailable
62
Not Available As Spare Parts
XXX
Unavailable
62a
Not Available As Spare Parts
XXX
Unavailable
63
Not Available As Spare Parts
XXX
Unavailable
64
Shiftgate Trim | Europe
705005003
Unavailable
65
RH Structural Footboard
705011542
Unavailable
67
LH Structural Footboard
705011540
Unavailable
73
CAMO FRONT FENDER - Call your local BRP dealership | Model-OUT Camo North America
715002685
Unavailable
73
GREY FRONT FENDER - Call your local BRP dealership | Model-OUT Grey Europe
715002665
Unavailable
73
GREY FRONT FENDER - Call your local BRP dealership | Model-OUT Grey International
715002666
Unavailable
73
Grey Front Fender | Model-OUT Grey North America
715002663
Unavailable
73
Viper Red, Front Fender | Model-OUT Viper Red International
715002681
Unavailable
73
Viper Red, Front Fender | Model-OUT Viper Red North America
715002679
Unavailable
73
YELLOW FRONT FENDER - Call your local BRP dealership | Model-OUT Yellow Europe
715002673
Unavailable
73
YELLOW FRONT FENDER - Call your local BRP dealership | Model-OUT Yellow International
715002674
Unavailable
73
Yellow Front Fender | Model-OUT Yellow North America
715002671
Unavailable
74
Front Facia | Model-Europe
705009335
Unavailable
74
Front Facia | Model-North America, International
705009334
Unavailable
75
Deep Black, Rear Luggage Rack
705017598
Unavailable
77
Rear Facia | Except Model- Europe
705005576
Unavailable
77
REAR FACIA - Call your local BRP dealership | Model- Europe
705007445
Unavailable
78
Dash Kit
715006098
Unavailable
85
Storage Cover | Model-Europe International
715004412
Unavailable
86
Black, Front Luggage Rack
705006887
Unavailable
88
Front Frame
705017337
Unavailable
95
RH Step
705007039
Unavailable
96
LH Step
705007040
Unavailable
97
Gage Support
705007066
Unavailable
98
Storage Cover | Model-Europe International
715004412
Unavailable
99
CAP - Call your local BRP dealership
414859400
Unavailable
103
CAMO LH REAR FENDER - Call your local BRP dealership | Model-OUT Camo North America
715002712
Unavailable
103
GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey Europe
715002689
Unavailable
103
GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey International
715002691
Unavailable
103
GREY LH REAR FENDER - Call your local BRP dealership | Model-OUT Grey North America
715002687
Unavailable
103
VIPER RED LH REAR FENDER - Call your local BRP dealership | Model-OUT Viper Red International
715002711
Unavailable
103
Viper Red LH Rear Fender | Model-OUT Viper Red North America
715002707
Unavailable
103
YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow Europe
715002699
Unavailable
103
YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow International
715002701
Unavailable
103
YELLOW LH REAR FENDER - Call your local BRP dealership | Model-OUT Yellow North America
715002697
Unavailable
104
GREY RH REAR FENDER - Call your local BRP dealership | Model-Grey Europe
715002721
Unavailable
104
FENDER REAR R B-365 - Call your local BRP dealership | Model-Grey North America
705008501
Unavailable
104
Viper Red, RH Rear Fender | Model-Viper Red International
715002723
Unavailable
104
Viper Red, RH Rear Fender | Model-Viper Red North America
705012738
Unavailable
104
FENDER REAR R B-387 - Call your local BRP dealership | Model-Viper Red North America
705008651
Unavailable
104
YELLOW RH REAR FENDER - Call your local BRP dealership | Model-Yellow Europe
715002719
Unavailable
104
Yellow, RH Rear Fender | Model-Yellow North America
705007210
Unavailable
108
LH Box Rear Latch
705007448
Unavailable
109
Plate Support | Model- Europe
705007449
Unavailable
112
Heat Deflector Sheet
705007487
Unavailable
113
Retaining Rod
705007531
Unavailable
115
Not Available As Spare Parts
XXX
Unavailable
120
RH Box Rear Latch
705007921
Unavailable
121
Not Available As Spare Parts
XXX
Unavailable
124
LH Inner Fender
705012338
Unavailable
125
RH Front Wheel Arch Protector
705017023
Unavailable
127
Shifter Gate | 800 North America, 800 International
705011546
Unavailable
127
Shifter Gate | 800 Europe
705011547
Unavailable
130
Protective Plate Kit
715002374
Unavailable
131
Console Support Insert
705010406
Unavailable
