08- Rear Suspension _26T1503

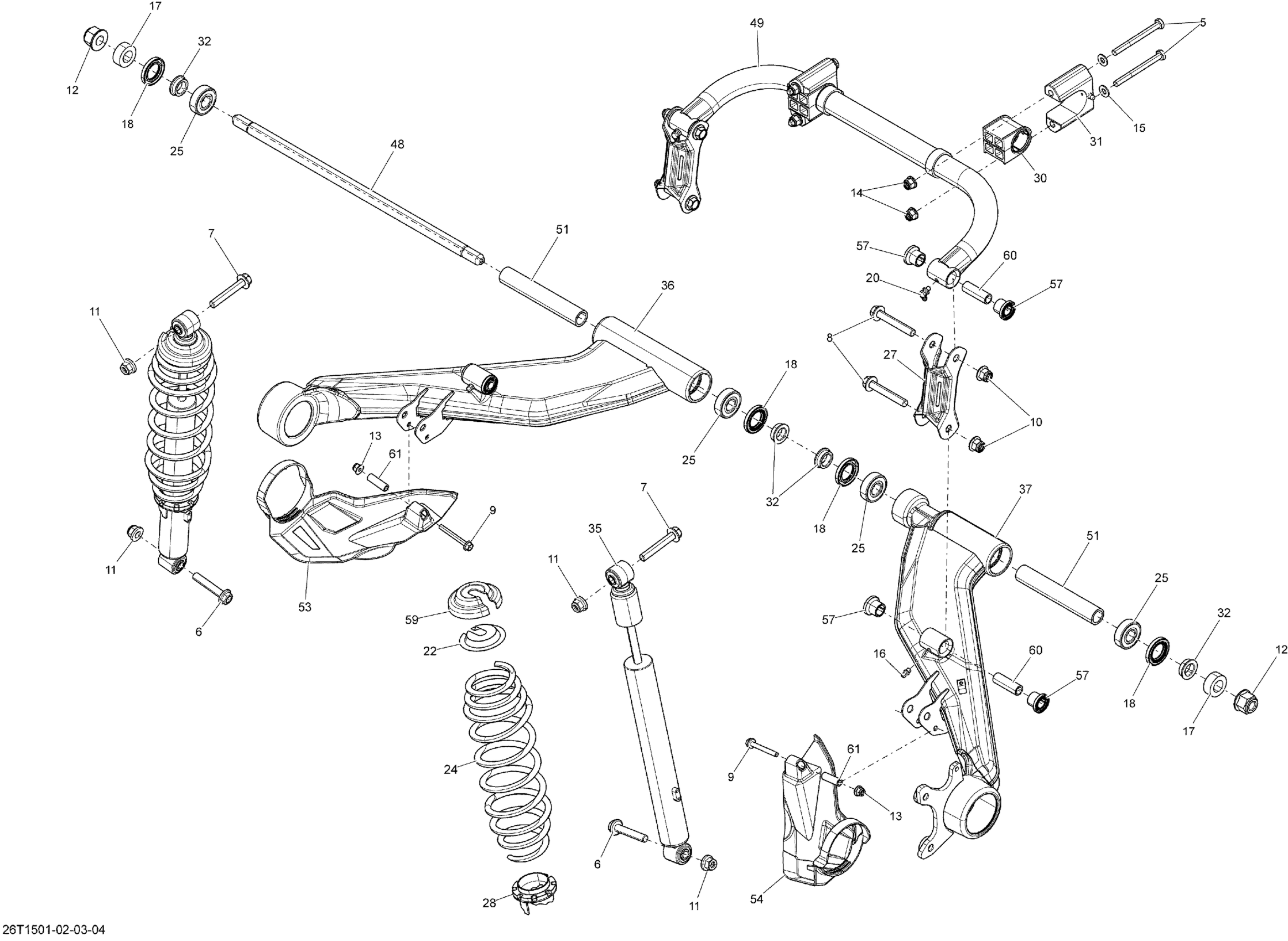

Can-Am Outlander L 500 EFI, 2015 08- Rear Suspension _26T1503 Diagram
#
5
Hex. Screw M8 X 85
250001035
Unavailable
6
Hex. Flange Screw M10 X 55
207605546
Unavailable
7
Hex. Flange Screw M10 X 6
207606046
Unavailable
8
Hex. Flange Screw M10 X 65
207606536
Unavailable
9
Hex. Flange Screw M6 X 50
207665044
Unavailable
10
Hex. Flange Elastic Nut M10
233201414
Unavailable
11
Hex. Flange Elastic Nut M10
233201436
Unavailable
12
Hex. Flange Elastic Nut M16
233211466
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Hex. Flange Elastic Nut M8
233281434
Unavailable
15
Flat Washer M8
234081430
Unavailable
16
Grease Fitting
250000315
Unavailable
17
Flat Washer M17
250200112
Unavailable
18
Seal
293200144
Unavailable
20
Grease Fitting 90°
293550056
Unavailable
22
Cap
706200785
Unavailable
24
Deep Black, Compression Spring
706004873
Unavailable
25
Ball Bearing
293350145
Unavailable
27
Sway Bar Linkage
706001020
Unavailable
28
Adjuster Ring
706002356
Unavailable
30
Stabilizer Bar Bushing
706004640
Unavailable
31
Bushing Holder
706001099
Unavailable
32
Spacer
706001282
Unavailable
35
Rear Shock
706001524
Unavailable
36
Black, LH Rear Swing Arm
706001646
Unavailable
37
Black, RH Rear Swing Arm
706004525
Unavailable
48
Axial Pivot M16
706001664
Unavailable
49
Sway Bar
706001678
Unavailable
51
Spacer
706002258
Unavailable
53
LH Protector
706002482
Unavailable
54
RH Protector
706002483
Unavailable
57
Bushing
706200181
Unavailable
59
Spring Stopper
706200881
Unavailable
60
Sleeve
706201587
Unavailable
61
Bushing
707001376
Unavailable
