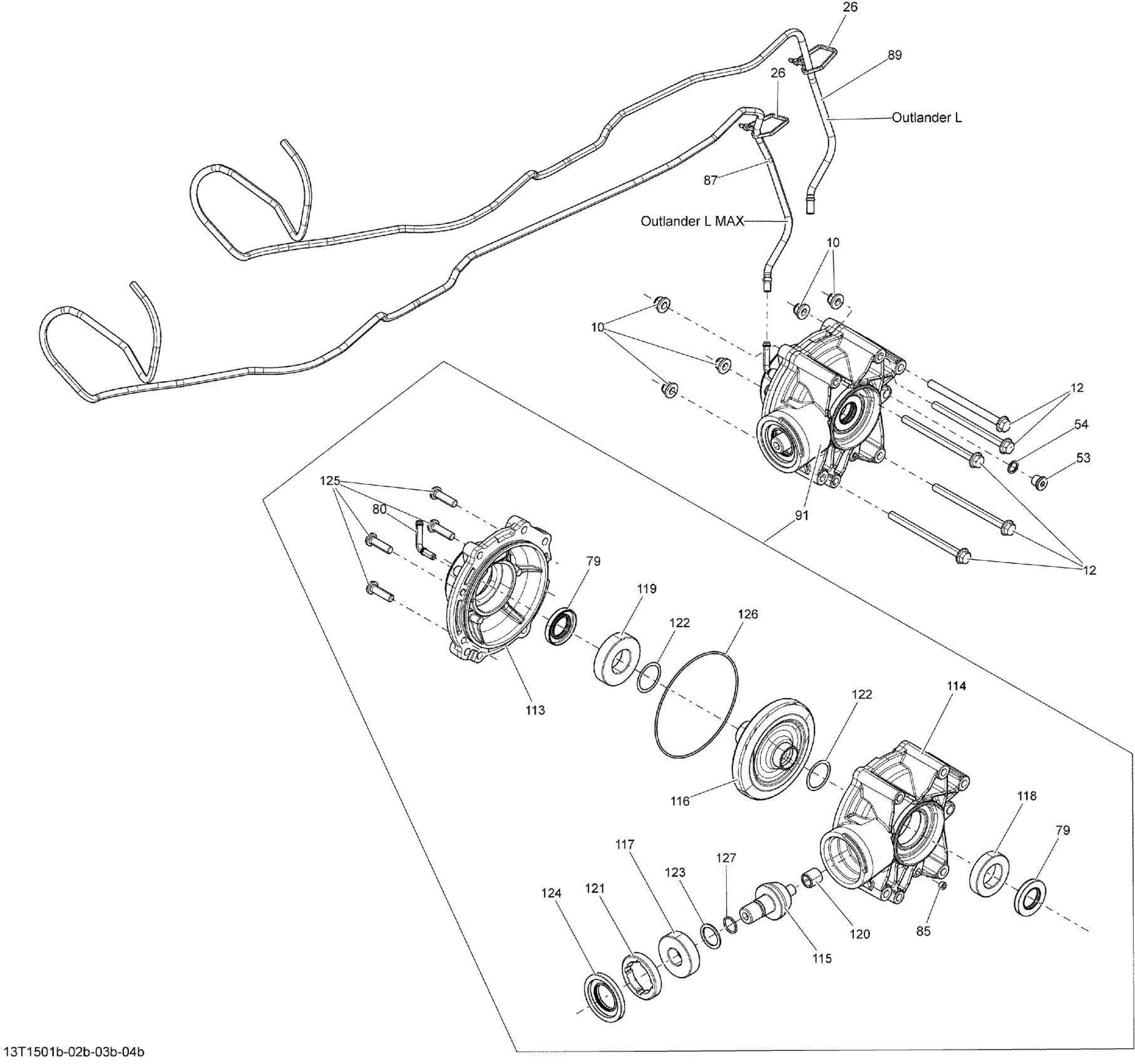

Can-Am Outlander L 500 EFI, 2015 Drive System, Rear Differential_13T1503b Diagram

Description

Price

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M10 X 135

250001041

$5.59

Tie Wrap 368 mm

293750008

$1.04

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Oil Seal

705501556

$17.99

Breather Tube

705501584

$14.99

Plug Drain

705501724

$5.95

Not Available As Spare Parts

XXX

Unavailable

Polyurethane Hose 10000Mm Long

219704410

$56.99

Rear Differential Ass'y

705501896

Unavailable

113

REAR COVER - Call your local BRP dealership

705502051

Unavailable

114

Rear Pinion Cover

705502052

$216.99

115

Pinion 10 Teeth

705502053

$209.99

116

Gear 36 Teeth

705502682

$189.99

117

Ball Bearing

705502055

$31.99

118

Ball Bearing

705502737

$48.49

119

Ball Bearing

705502738

$59.49

120

Needle Bearing

705502058

$49.99

121

Nut

705502059

$32.99

122

Differential Shim 0.02 mm

705502060

$13.76

123

Pinion Gear Shim 1.67 mm

705502061

$18.99

124

Oil Seal

705502062

$23.49

125

Screw

705502063

$3.24

126

Seal

705502064

$8.47

127

O-Ring

705502065

$5.95
