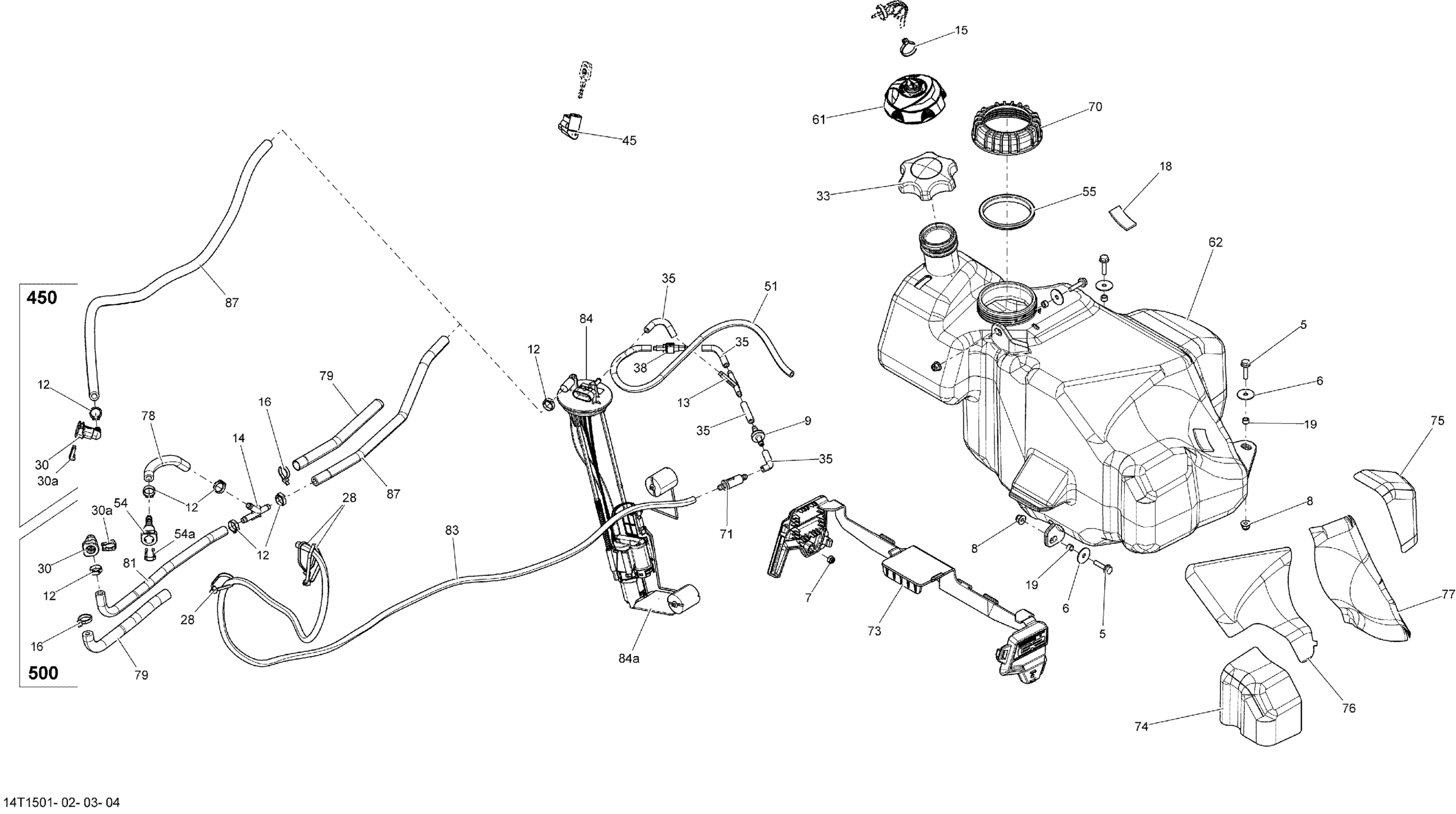

Can-Am Outlander L 500 EFI, 2015 Fuel System _14T1503 Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 25

207662544

$0.64

6

Washer

224060251

$0.58

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Check Valve

275500398

$10.99

12

Crimp Clamp, 15.3-706R

293650047

$3.29

13

Y-Fitting

293710059

$9.69

14

Not Available As Spare Parts

XXX

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Not Available As Spare Parts

XXX

Unavailable

18

Rubber Pad

293830172

$2.89

19

Bushing | DS 650 X

293900104

$5.50

28

Tie-Rap 180 mm

414115200

$0.11

30

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

30a

Locking Clip

513033135

$5.89

33

Fuel Tank Cap

513033025

$24.49

35

Polyurethane Hose 10000Mm Long

219704410

$56.99

38

Check Valve

513033469

$31.99

45

Padlock with Key

707000666

$25.99

51

Polyurethane Hose 10000Mm Long

219704410

$56.99

54

Quick Fitting 45° Ass'y | Includes 34 to 35

709000627

$16.49

54a

Locking Clip

513033135

$5.89

55

Seal

709000208

$14.99

61

Locking Cap Tank | Europe

860200387

$58.49

62

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

70

Fuel Pump Module Nut

709000328

$13.75

71

Filter

709000330

$7.79

73

Hose Support Ass'y

709000359

$14.31

74

Heat Reflective Sheet

709000381

$6.99

75

Heat Reflective Sheet

709001071

$10.49

76

Heat Reflective Sheet

709000387

$5.09

77

Heat Reflective Sheet

709000388

$6.39

79

Not Available As Spare Parts

XXX

Unavailable

83

Polyurethane Hose 10000Mm Long

219704410

$56.99

84

Fuel Pump

709000461

$340.99

84a

Prefilter Fuel Pump Kit 86mm Long

715900322

$73.99

87

Was 709000163 Fuel Line

219704440

$28.99
