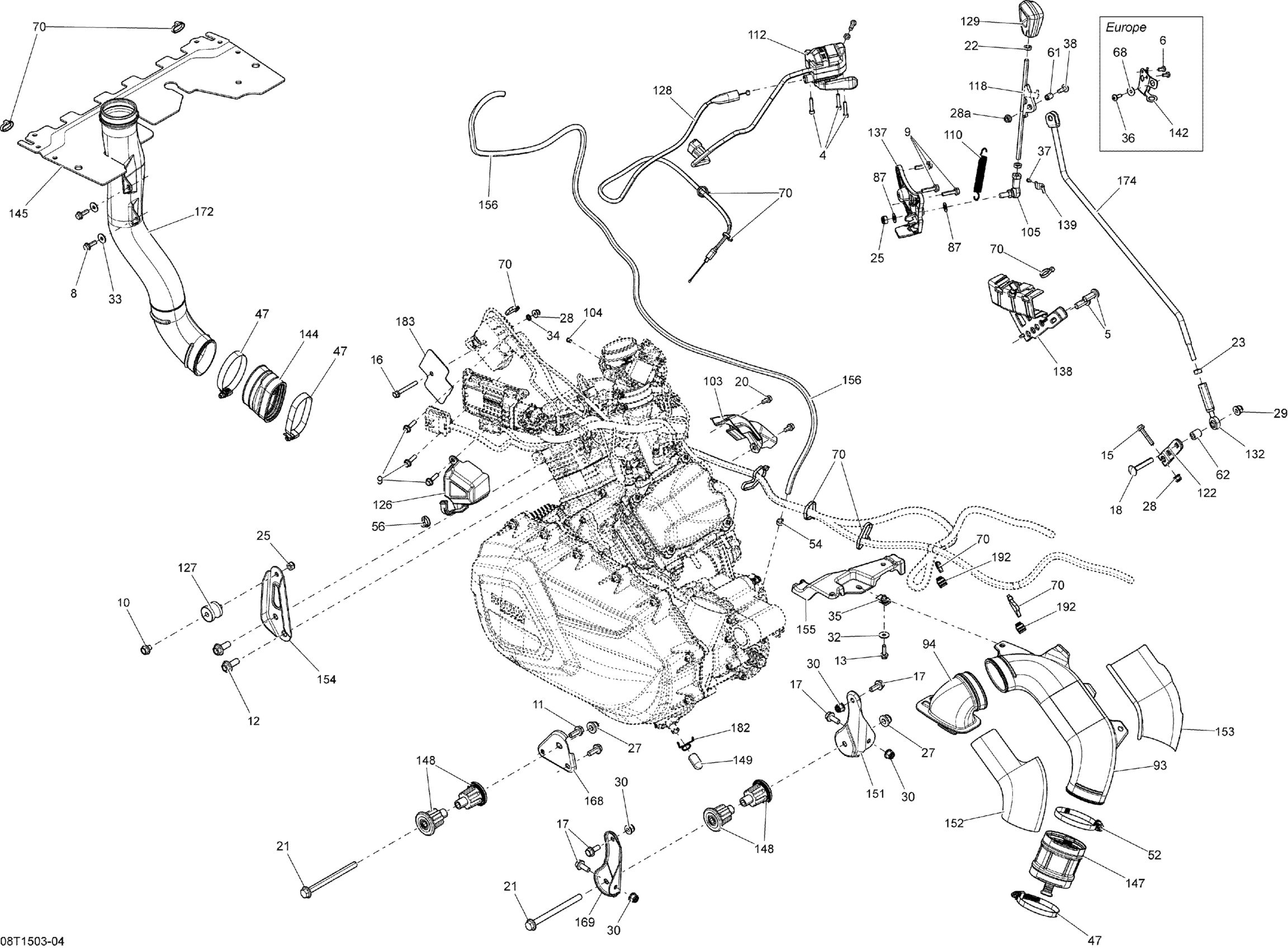

Can-Am Outlander L 500 EFI, 2015 Engine And Engine Support _08T1503 Diagram

#

Description
Price

4

Socket Head Screw M5 X 25

205052588

$1.90

5

Screw Socket M10 X 25 | Europe

205402556

$3.91

6

Socket Head Screw M5 X 10

205951046

$2.43

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

9

Hex. Flange Screw M6 X 25

207562544

$1.69

10

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

11

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

12

Hex. Flange Screw M10 X 25

207602544

$1.69

13

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Hex. Flange Screw M6 X 35

207663544

$0.90

16

Hex. Flange Screw M6 X 50

207665044

$4.12

17

Hex. Flange Screw M8 X 20

207682046

$1.90

18

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

20

Hex. Flange Screw M6 X 12

210261250

$1.90

21

Hex. Flange Screw M10 X 125

230602546

$7.41

22

Hex. Jam Nut M8

232180600

$0.67

23

Hex. Nut M8, LH Threads

250100144

$2.00

25

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Hex. Flange Elastic Nut M10

233201436

$2.11

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28a

Hex. Flange Nut M6

233161414

$2.11

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Hex. Elastic Flange Nut M8

233281416

$1.48

32

Flat Washer 6 mm

234062410

$0.77

33

Flat Washer M6, Stainless

234062600

$0.77

34

External Serrated Lock Washer 6 mm

234461608

$1.15

35

Panel Nut M6 X 1.0

250100198

$2.11

36

Torx Screw K50 X 16

250000720

$1.69

37

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.64

47

Norma Clamp

293650091

$11.12

52

Norma Gear Clamp

293650118

$13.16

54

Clamp, Oetiker

293650195

$1.09

56

Tie Wrap 142 mm

293750002

$1.25

61

Bushing

293900019

$7.73

62

Bushing

293900106

$4.55

68

Washer | DS 650 X

391301600

$0.48

70

Tie-Rap 180 mm

414115200

$0.11

87

Washer

506151252

$3.17

93

Air Outlet

706600019

$37.99

94

CVT Cooling Duct Out

706600400

$54.99

103

Cover OPS

707000410

$13.24

104

Cable Guide

707000434

$11.60

105

RH Ball Joint

707001959

$36.99

110

Spring

707000577

$10.99

112

Throttle Handle | 4X4

707000595

$214.99

118

Shift Arm | Europe

707001003

$18.55

118

Shift Arm | Except Europe

707000840

$16.87

118

Shift Arm | Except Europe

707000840

$16.87

122

Lever

707000911

$20.49

126

Cover

707000945

$6.67

127

Rubber Isolator

707000949

$11.49

128

Throttle Cable

707000955

$13.24

129

Lever Trim

707003211

$8.49

132

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

137

Lever Support

707003054

$6.67

138

Cable Support

707003053

$10.49

139

SPEED LIMITER - Call your local BRP dealership | Europe

707000994

Unavailable

142

Fixing Plate | Europe

707001042

$39.99

144

Flexibale Adaptor

707002585

$10.99

145

Upper Water Deflector

707001124

$22.49

147

CVT Air Outlet Adaptor

707001168

$15.99

148

Vibration Damper

707001169

$42.99

149

Plug

707001185

$1.15

151

RH Rear Engine Bracket

707001194

$16.99

152

Heat Shield

707001205

$10.49

153

Heat Shield

707001206

$10.49

154

Upper Engine Bracket

707001256

$13.49

155

Air Outlet Support

707001262

$9.89

156

Polyurethane Hose 10000Mm Long

219704410

$56.99

168

Engine Support

707003319

$10.99

169

LH Rear Engine Support

707003325

$16.99

172

CVT Air Inlet

707002067

$53.99

174

Shifter Rod

707002085

$33.99

182

Retainer Clip

707800506

$12.63

183

Insulator Pad

710000073

$11.12

192

Tie-Rap Clip

710002896

$4.39
