Partiron

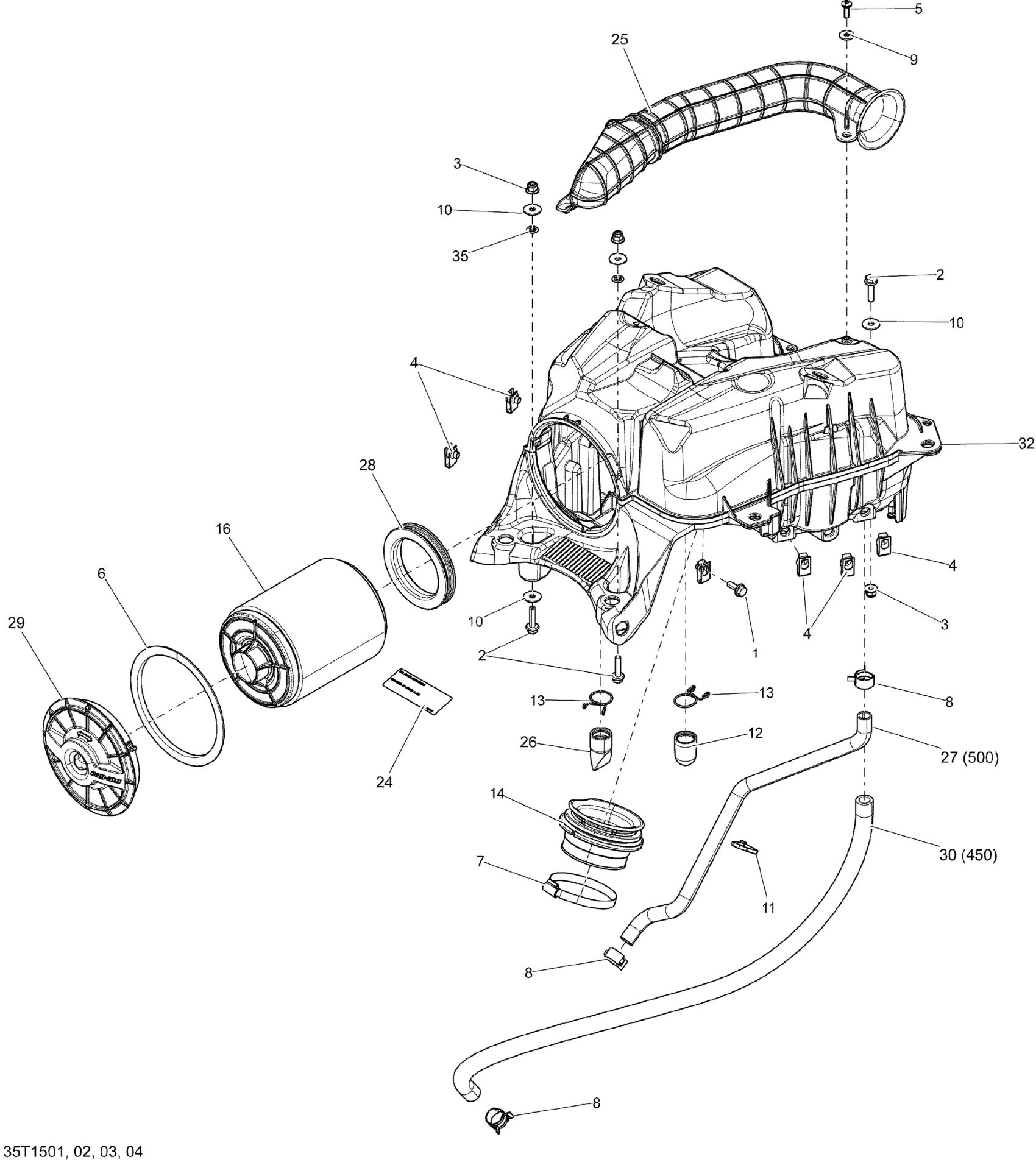

Can-Am Outlander L 450 EFI, 2015 Air Intake _35T1501 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Torx Screw K50 X 16

250000720

$1.69

6

Gasket

293300175

$13.99

7

Norma Clamp

293650091

$11.12

8

Norma Clamp

293650110

$4.54

9

Washer | DS 650 X

391301600

$0.48

10

Flat Washer

250200082

$0.42

10

Flat Washer

250200082

$0.42

11

Not Available As Spare Parts

XXX

Unavailable

12

Drain Tube

707800080

$8.29

13

Retainer Clip

707800278

$13.99

14

Intake Adaptor

707800333

$19.99

16

Air Filter

707800371

$40.99

24

Air Filter Maintenance Decal

707800373

Unavailable

25

Air Intake Hose

707800375

$55.99

26

Drain Tube

707800404

$2.89

27

Not Available As Spare Parts

XXX

Unavailable

28

Air Filter Adaptor

707800470

$19.99

29

Intake Silencer Cap Ass'y

715002174

$17.49

30

Hose

707800586

$19.99

32

Welded Air Box

707800599

Unavailable

35

Push Nut

732610072

$2.19
