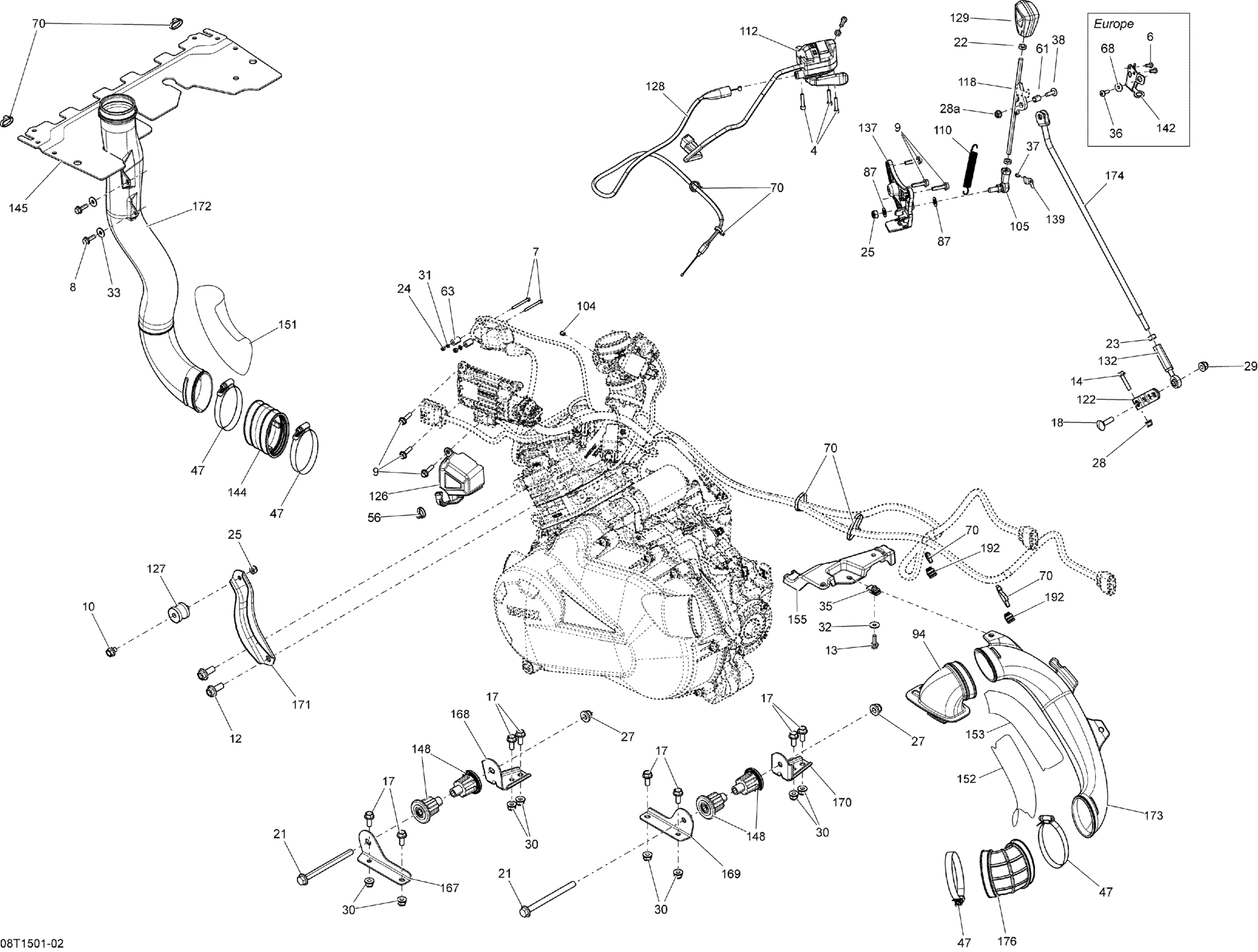

Can-Am Outlander L 450 EFI, 2015 Engine And Engine Support _08T1501 Diagram

#

Description
Price

4

Socket Head Screw M5 X 25

205052588

$1.90

6

Socket Head Screw M5 X 10

205951046

$2.43

7

Hex. Cap Screw

207144044

$1.01

8

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

9

Hex. Flange Screw M6 X 25

207562544

$1.69

10

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

12

Hex. Flange Screw M10 X 25

207602544

$1.69

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

17

Hex. Flange Screw M8 X 20

207682046

$1.90

18

Carriage Bolt M8 X 30

207783044

$2.11

21

Hex. Flange Screw M10 X 125

230602546

$7.41

22

Hex. Jam Nut M8

232180600

$0.67

23

Hex. Nut M8, LH Threads

250100144

$2.00

24

Elastic Stop Nut M4

232541414

$0.58

25

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Hex. Flange Elastic Nut M10

233201436

$2.11

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28a

Hex. Flange Nut M6

233161414

$2.11

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Hex. Elastic Flange Nut M8

233281416

$1.48

31

Flat Washer 4 mm

234040600

$0.55

32

Flat Washer 6 mm

234062410

$0.77

33

Flat Washer M6, Stainless

234062600

$0.77

35

Panel Nut M6 X 1.0

250100198

$2.11

36

Torx Screw K50 X 16

250000720

$1.69

37

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

38

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

47

Norma Clamp

293650091

$11.12

56

Tie Wrap 142 mm

293750002

$1.25

61

Bushing

293900019

$7.73

63

Bushing

293900117

$2.61

68

Washer | DS 650 X

391301600

$0.48

70

Tie-Rap 180 mm

414115200

$0.11

87

Washer

506151252

$3.17

94

CVT Cooling Duct Out

706600400

$54.99

104

Cable Guide

707000434

$11.60

105

RH Ball Joint

707001959

$36.99

110

Spring

707000577

$10.99

112

Throttle Handle | 4X4

707000595

$214.99

118

Shift Arm | Except Europe

707000840

$16.87

118

Shift Arm | Except Europe

707000840

$16.87

118

Shift Arm | Europe

707001003

$18.55

122

Lever

707000503

$38.49

126

Cover

707000945

$6.67

127

Rubber Isolator

707000949

$11.49

128

Throttle Cable

707000955

$13.24

129

Lever Trim

707003211

$8.49

132

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

137

Lever Support

707003054

$6.67

139

Speed Limiter | Europe

707000573

$14.74

142

Fixing Plate | Europe

707001042

$39.99

144

Flexibale Adaptor

707002585

$10.99

145

Upper Water Deflector

707001124

$22.49

148

Vibration Damper

707001169

$42.99

151

Heat Shield

707001638

$3.79

152

Heat Shield

707001641

$2.99

153

Heat Shield

707001639

$2.99

155

Air Outlet Support

707001262

$9.89

167

LH Front Engine Bracket

707001407

$15.99

168

RH Front Engine Bracket

707001408

$15.99

169

LH Rear Engine Bracket

707001409

$15.99

170

RH Rear Engine Bracket

707001410

$15.99

171

Upper Engine Bracket

707001411

$13.99

172

CVT Air Inlet

707002289

$48.99

173

CVT Air Outlet

707001413

$37.99

174

Shifter Rod

707001414

$38.99

176

CVT Air Outlet Adaptor

707001425

$18.49

192

Tie-Rap Clip

710002896

$4.39
