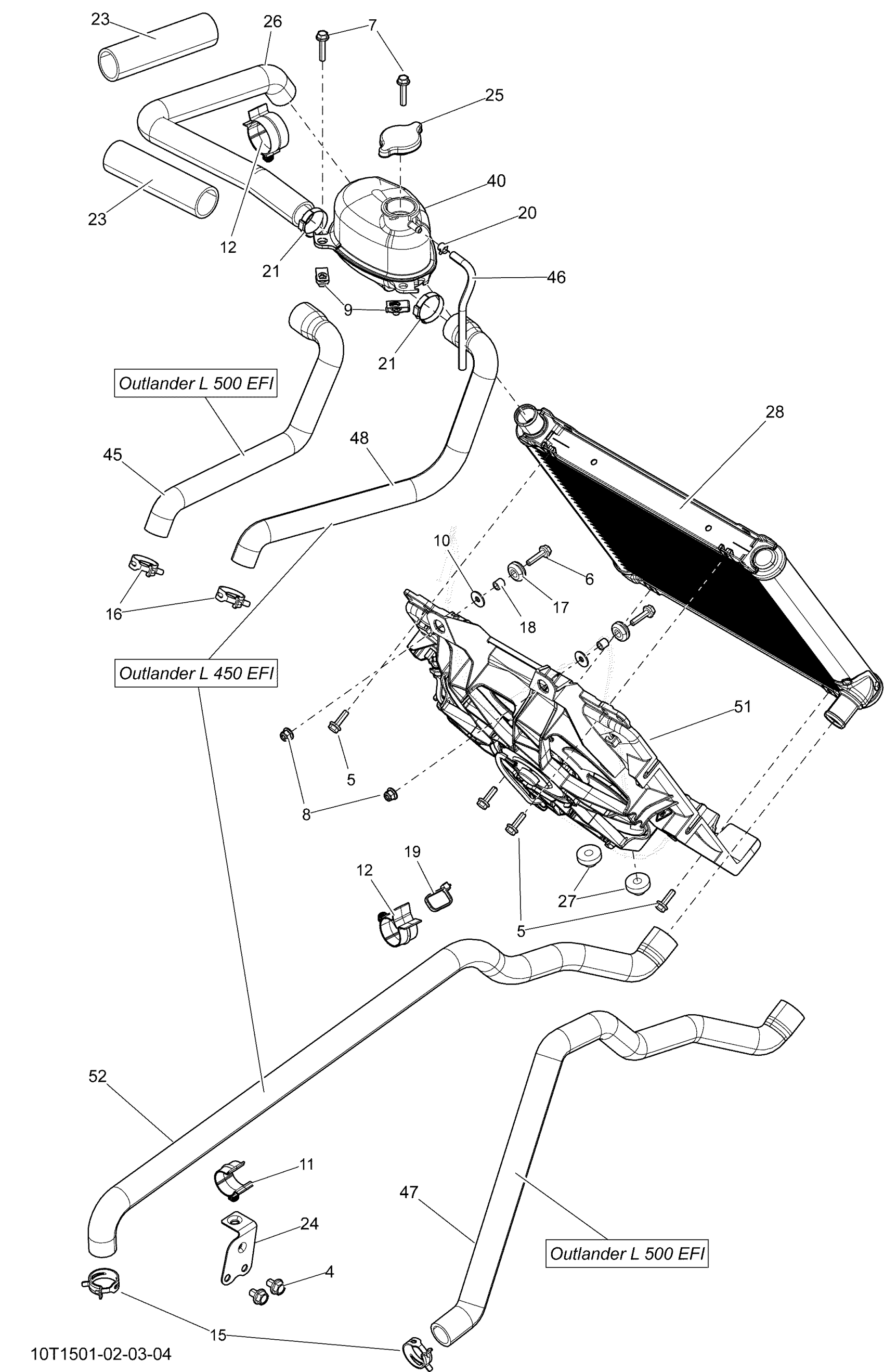

Can-Am Outlander L 450 EFI, 2015 Cooling System _10T1501 Diagram

#

Description
Price

4

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

5

Hex. Flange Screw M6 X 20

207662034

$2.11

6

Hex. Flange Screw M6 X 25

207662534

$2.11

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

8

Flange Elastic Nut M6

233261434

$4.44

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Flat Washer

250200082

$0.42

11

Retainer

275500526

$4.55

12

Retainer

275500590

$9.69

15

Norma Spring Clamp

293650108

$4.12

16

Norma Spring Clamp

293650109

$4.12

17

Grommet

709000582

$4.69

18

Bushing

293900105

$7.65

19

Tie-Rap 180 mm

414115200

$0.11

20

Spring Clamp

414554800

$0.88

21

Gear Clamp

509000162

$7.29

23

Tubing 35 MM 1000MM Long

219704428

$10.99

24

Hose Support

709200206

$9.69

25

Radiator Pressure Cap

709200207

$25.49

26

Radiator Inlet Hose

709200278

$34.99

27

Grommet

709200285

$9.69

28

Radiator

709200286

$476.99

40

Coolant Tank

709200297

$55.99

45

Not Available As Spare Parts

XXX

Unavailable

46

Polyurethane Hose 10000Mm Long

219704410

$56.99

47

Not Available As Spare Parts

XXX

Unavailable

48

Coolant Hose

709200893

$26.49

51

Fan Ass'y

709200563

$249.99

52

Coolant Hose

709200901

$28.49
