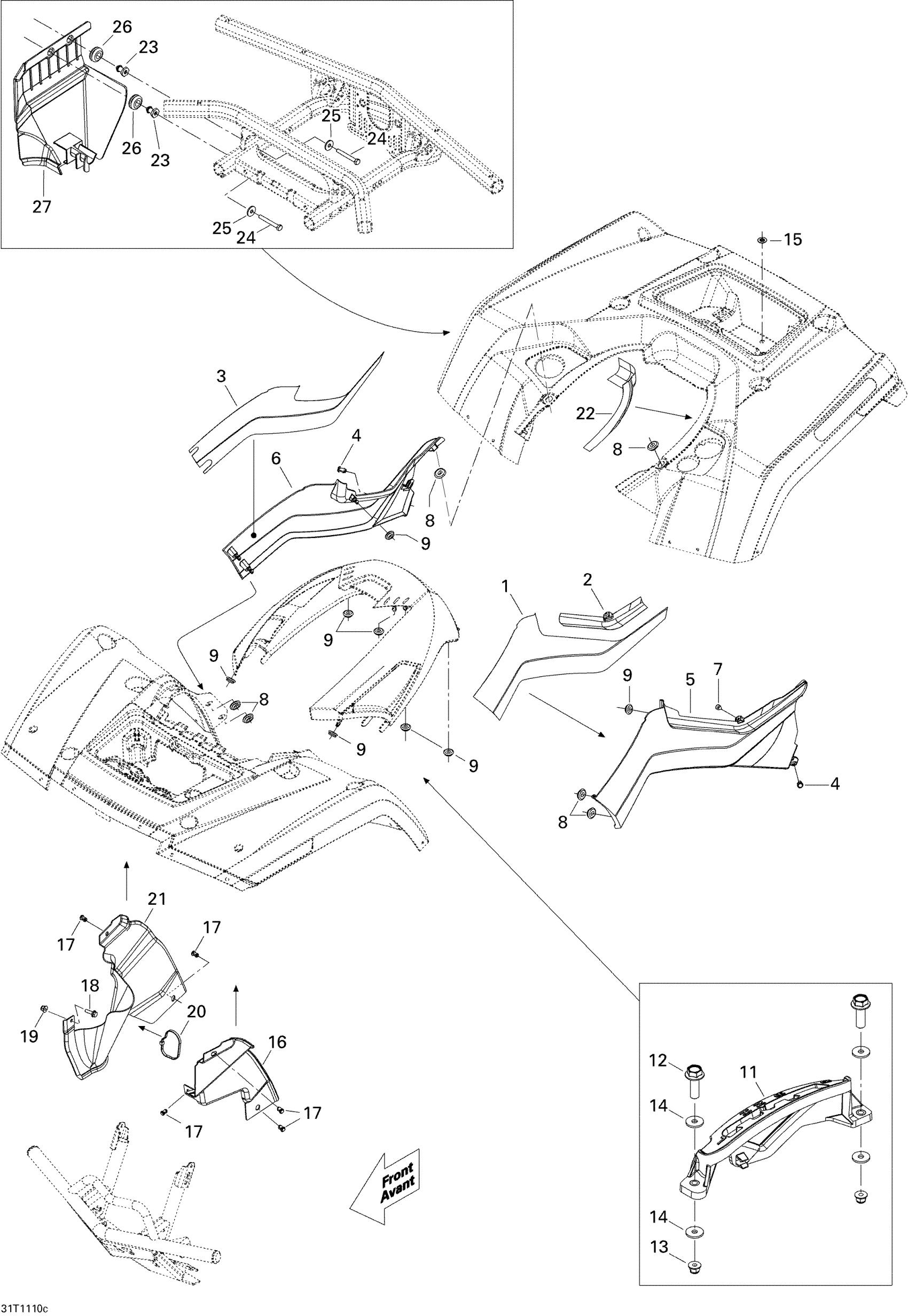

Can-Am Outlander 800R EFI, XXC, 2011 Body And Accessories 3 Diagram

#

Description
Price

1

Reflective Sheet

705005620

$11.98

2

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

3

REFLECTIVE SHEET - Call your local BRP dealership

705005623

Unavailable

4

Tuflok Plastic Rivet

293150230

$1.21

5

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

6

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

7

Rubber Bumper

293830005

$5.33

8

Oval Washer

705005156

$4.85

9

Grommet

705003264

$3.43

11

Lever Indicator

705003838

$27.66

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Flat Washer

224061201

$1.11

15

CAP - Call your local BRP dealership

414859400

Unavailable

16

LH Inner Fender

705004300

Unavailable

17

Tuflok Plastic Rivet

293150230

$1.21

18

Hex. Flange Screw M6 X 20

207662044

$1.66

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Tie Wrap 368 mm

293750008

$0.85

21

RH INNER FENDER - Call your local BRP dealership

705004299

Unavailable

22

Reflective Sheet

705002085

Unavailable

23

Knob

517303439

$3.73

24

Hex. Screw K50 X 45

241154540

$1.74

25

Washer | DS 650 X

391301600

$0.48

26

Grommet

709000582

$4.38

27

Thread Cover

705004036

$19.20
