09- Body And Accessories 1

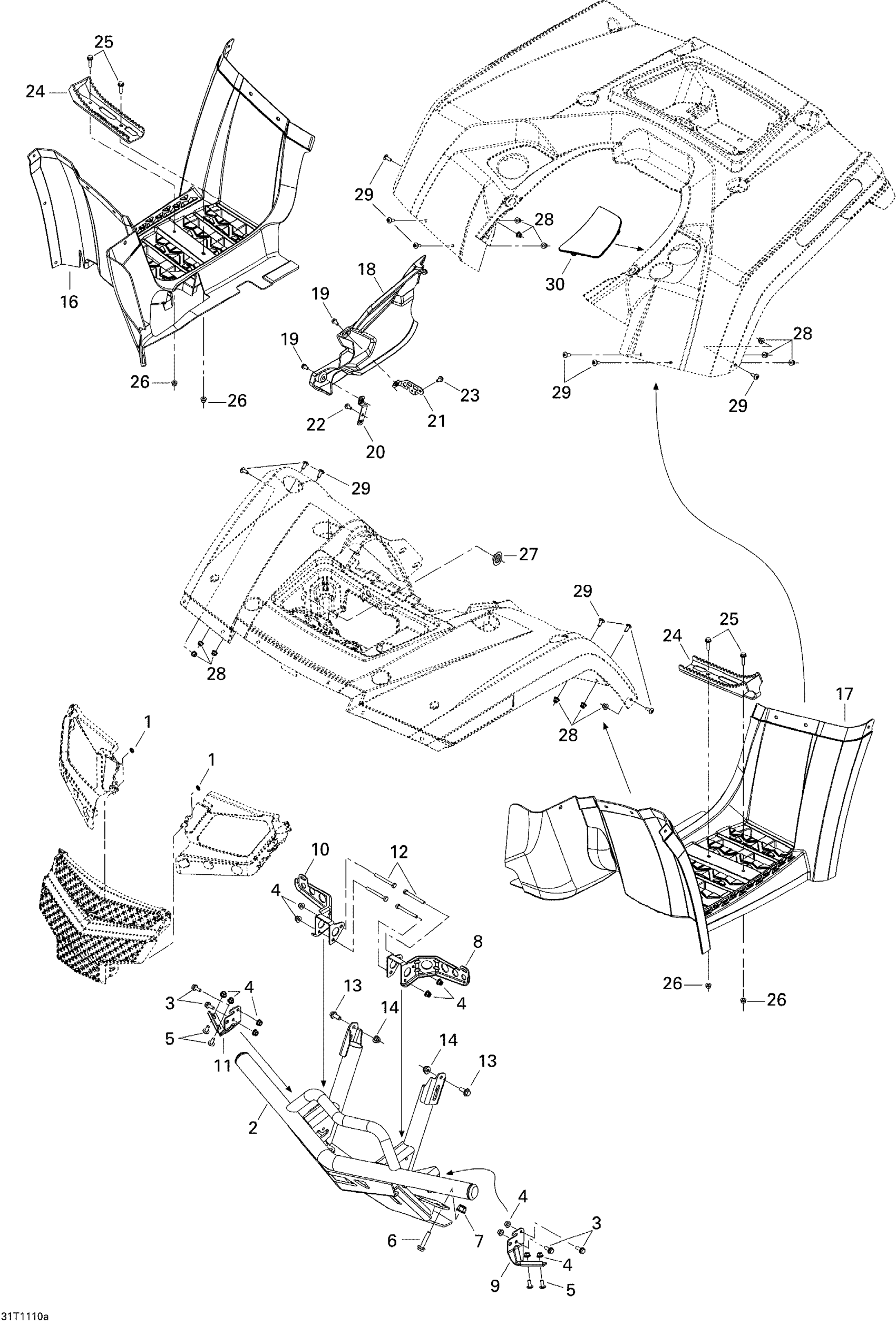

Can-Am Outlander 800R EFI, XXC, 2011 09- Body And Accessories 1 Diagram
#
Description
Price
1
Push Nut
732610072
Unavailable
2
FRONT BUMPER, XXC - Call your local BRP dealership
715001123
Unavailable
3
Hex. Flange Screw M6 X 16
207661644
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
Torx Screw M6 X 16
250000755
Unavailable
6
Hex. Flange Screw M10 X 30
207603044
Unavailable
7
Hex. Flange Elastic Nut M10
233201414
Unavailable
8
LH FACIA SUPPORT - Call your local BRP dealership
705002925
Unavailable
9
LH LOWER FACIA SUPPORT - Call your local BRP dealership
705003037
Unavailable
10
RH FACIA SUPPORT - Call your local BRP dealership
705002926
Unavailable
11
RH LOWER FACIA SUPPORT - Call your local BRP dealership
705003039
Unavailable
12
Hex. Screw M6 X 60
207066044
Unavailable
13
Hex. Flange Screw M8 X 20
207682044
Unavailable
14
Hex. Flange Elastic Nut M8
233281414
Unavailable
16
RH Footboard
705002485
Unavailable
17
LH Footboard
705003632
Unavailable
18
ENGINE COVER - Call your local BRP dealership
705003839
Unavailable
19
Hex. Flange Screw M6 X 12
210261250
Unavailable
20
Engine Cover Support
705003646
Unavailable
21
Engine Cover Support
705011461
Unavailable
22
Hex. Flange Screw M6 X 12
210261250
Unavailable
23
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
24
Footrest
705002326
Unavailable
25
Hex. Flange Screw M6 X 25
250000787
Unavailable
26
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
27
PLASTIC CAP - Call your local BRP dealership | STD
293000103
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Torx Screw M6 X 16
250000755
Unavailable
30
LH Rear Body Panel Cap
705017923
Unavailable
