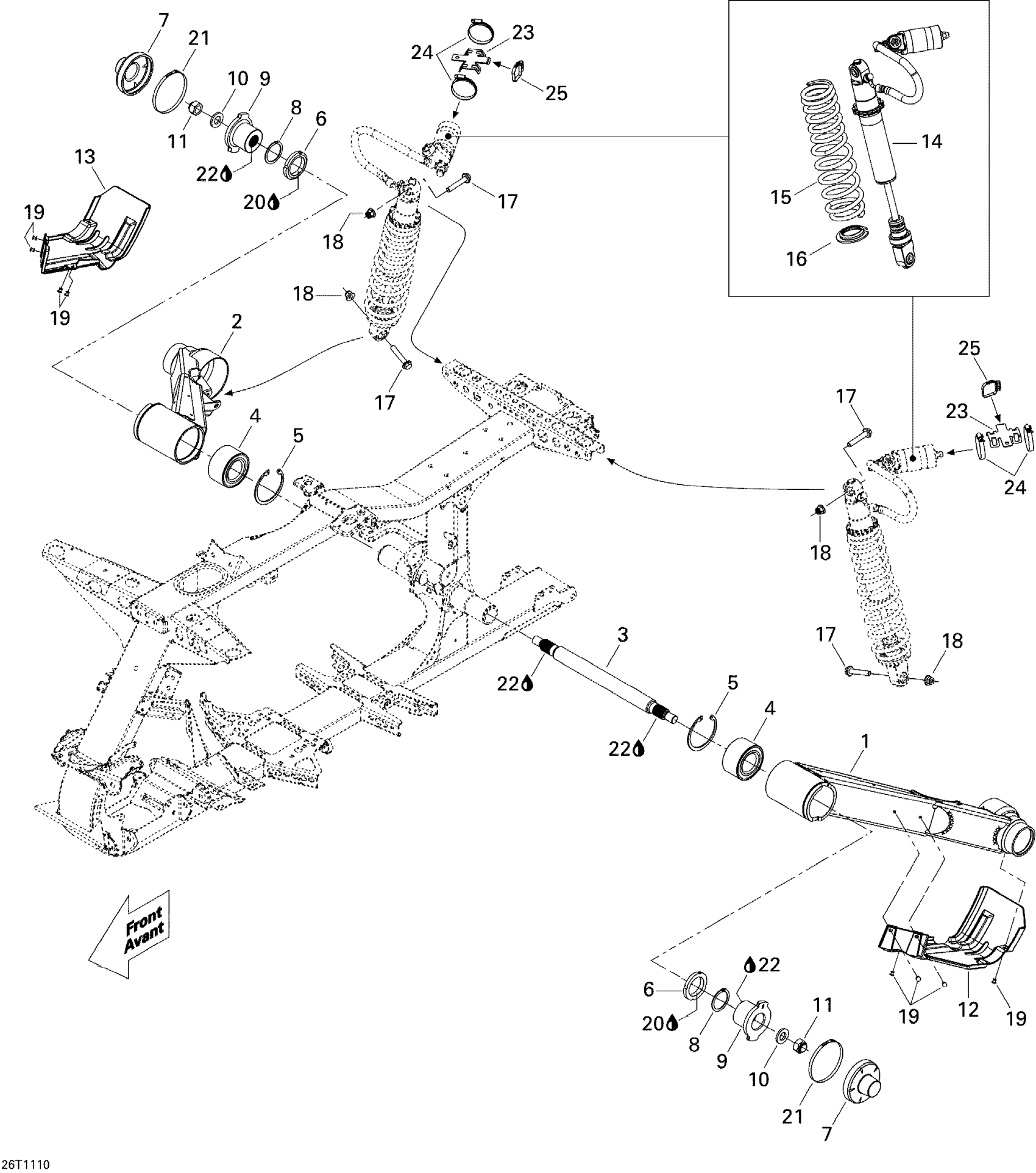

Can-Am Outlander 800R EFI, XXC, 2011 Rear Suspension Diagram

#

Description
Price

1

LH SWING ARM - Call your local BRP dealership

706001191

Unavailable

2

RH SWING ARM - Call your local BRP dealership

706001192

Unavailable

3

Sway Bar

706001078

$95.49

4

Ball Bearing

293350037

$139.99

5

Circlip

293370041

$9.26

6

Nut

706000221

$20.99

7

Cover

706000749

$16.49

8

Circlip 45 mm

293370027

$4.14

9

Lever

706000554

$72.99

10

Washer

250200045

$7.73

11

Elastic Stop Nut M18

232591414

$4.39

12

LH PROTECTOR - Call your local BRP dealership

706000333

Unavailable

13

RH PROTECTOR - Call your local BRP dealership

706000334

Unavailable

14

REAR SHOCK - Call your local BRP dealership

706000776

Unavailable

15

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000656

Unavailable

16

Spring Stopper

706000567

$15.99

17

Hex. Flange Screw M10 X 55

207605544

$3.38

18

Hex. Flange Elastic Nut M10

233201414

$1.58

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Loctite 271, 10 ml

293800005

$26.99

21

Oetiker Clamp

293650162

$9.79

22

Loctite 271, 10 ml

293800005

$26.99

23

Support

706000915

Unavailable

24

Norma Clamp

293650077

$7.41

25

Norma Clamp

293650075

$11.06
